FRONT BUMPER DISASSEMBLY

PROCEDURE


  1. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  2. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)

    Click here

  4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  5. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tech Tips

    Use the same procedure described for the LH side.

  6. REMOVE HOOD TO FRONT END PANEL SEAL

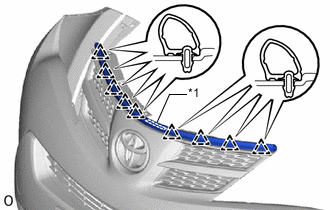

    1. A00YRPZC01
      *1 Double-sided Tape

      Detach the 9 clips.

    2. Detach the double-sided tape to remove the hood to front end panel seal.

  7. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Click here

  8. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE FRONT BUMPER HOLE COVER LH (w/ Fog Light)

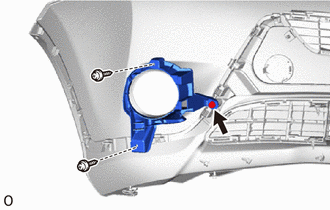

    1. A00YVRR

      Remove the clip.

    2. Remove the 2 screws and front bumper hole cover LH.

  10. REMOVE FRONT BUMPER HOLE COVER RH (w/ Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE FRONT BUMPER HOLE COVER LH (w/o Fog Light)

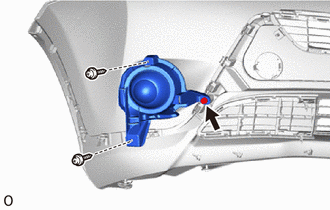

    1. A00YVTP

      Remove the clip.

    2. Remove the 2 screws and front bumper hole cover LH.

  12. REMOVE FRONT BUMPER HOLE COVER RH (w/o Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  13. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH

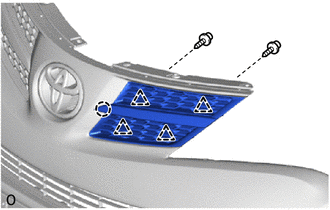

    1. A00YUYZ

      Remove the 2 screws.

    2. Detach the claw.

    3. Detach the 4 clips and remove the radiator grille garnish sub-assembly LH.

  14. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  15. REMOVE FRONT BUMPER EMBLEM SUB-ASSEMBLY

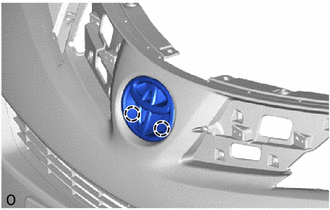

    1. A00YU48

      Detach the 2 claws and remove the front bumper emblem sub-assembly.

  16. REMOVE FRONT BUMPER ARM HOLE COVER LH

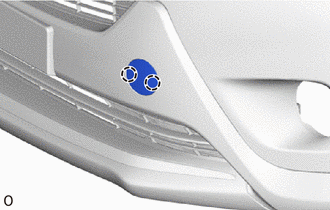

    1. A00YVMR

      Detach the 2 claws and remove the front bumper arm hole cover LH.

  17. REMOVE FRONT BUMPER ARM HOLE COVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  18. REMOVE FRONT BUMPER EXTENSION LH

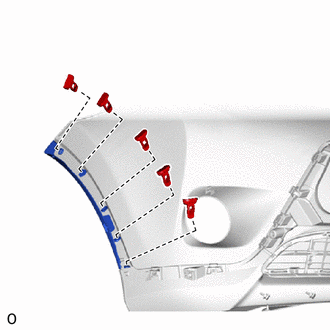

    1. A00YSBT

      Remove the 5 retainers and front bumper extension LH.

  19. REMOVE FRONT BUMPER EXTENSION RH

    Tech Tips

    Use the same procedure described for the LH side.

  20. REMOVE LOWER NO. 1 RADIATOR GRILLE

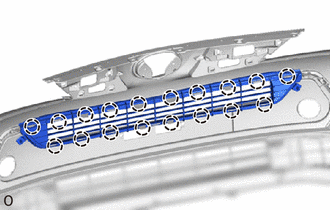

    1. A00YUYH

      Detach the 18 claws and remove the lower No. 1 radiator grille.

  21. REMOVE LOWER RADIATOR GRILLE LH (for Automatic Transaxle (U660F))

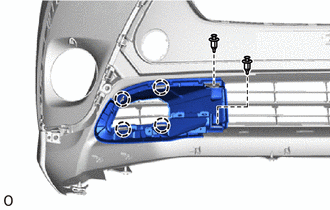

    1. A00YXOL

      Remove the 2 clips.

    2. Detach the 4 claws and remove the lower radiator grille LH.

  22. REMOVE LOWER RADIATOR GRILLE LH

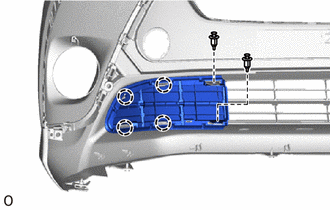

    1. A00YWC3

      Remove the 2 clips.

    2. Detach the 4 claws and remove the lower radiator grille LH.

  23. REMOVE LOWER RADIATOR GRILLE RH

    Tech Tips

    Use the same procedure described for the LH side.

  24. REMOVE FRONT BUMPER GUARD

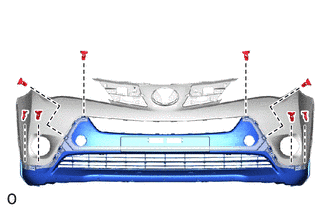

    1. A00YUJQ

      Remove the 8 retainers and front bumper guard.

  25. REMOVE FRONT BUMPER MOULDING

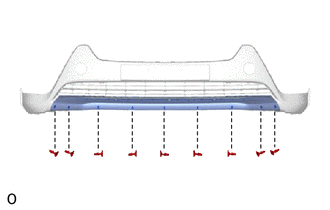

    1. A00YWPN

      Remove the 9 retainers and front bumper moulding.
