FRONT BUMPER REMOVAL

PROCEDURE


  1. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

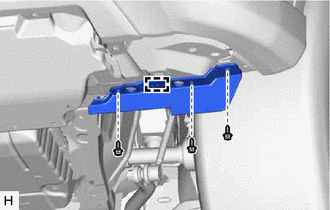

    1. A01QPDP

      Remove the 3 screws.

    2. Detach the clamp and remove the front fender front splash shield LH.

  2. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE FRONT BUMPER COVER

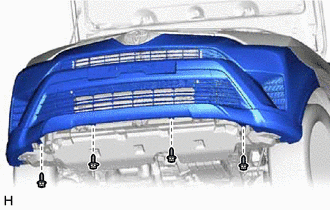

    1. A01QS36

      Remove the 4 screws.

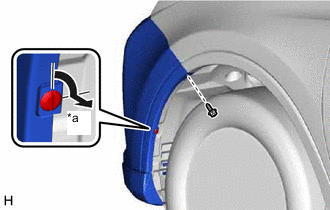

    2. A01QTHYC02
      *a 90°

      Using a screwdriver, turn the pin hold clip 90° and remove the pin hold clip and screw.

      Tech Tips

      Use the same procedure for the other side.

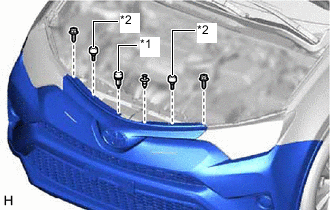

    3. A01QQ9PC01
      *1 Center Hood Cushion
      *2 Radiator Grille Protector

      Remove the center hood cushion and 2 radiator grille protectors.

    4. Remove the 2 bolts and clip.

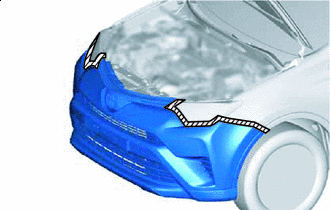

    5. A01QUPMC01
      A01QSVW Protective Tape

      Put protective tape around the front bumper cover.

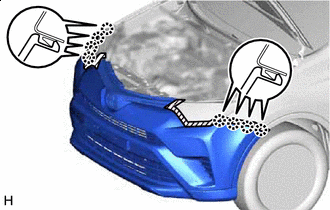

    6. A01QT66C02

      Detach the 8 claws and remove the front bumper cover.

    7. w/ Fog Light:

      Disconnect the 2 fog light connectors.

    8. w/ Pre-crash Safety System, w/ TOYOTA Parking Assist-sensor System:

      Disconnect the No. 3 engine room wire connector.

    9. w/ Headlight Cleaner System:

      Disconnect the headlight washer hose, and then drain the washer fluid.

      Tech Tips

      Use a container to collect the washer fluid.

  4. REMOVE FRONT BUMPER NO. 2 ENERGY ABSORBER

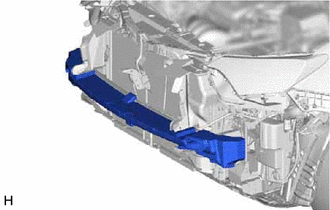

    1. A01QQ39

      Remove the front bumper No. 2 energy absorber.

  5. REMOVE HIGH PITCHED HORN ASSEMBLY

    Click here

  6. REMOVE LOW PITCHED HORN ASSEMBLY

    Click here

  7. REMOVE COOLER (AMBIENT TEMPERATURE SENSOR) THERMISTOR

    Click here

  8. REMOVE FRONT BUMPER CENTER STAY SUB-ASSEMBLY

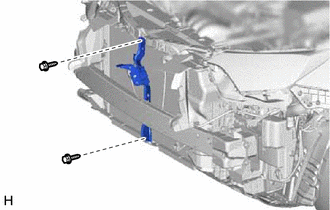

    1. A01QPPV

      Remove the 2 bolts and front bumper center stay sub-assembly.

  9. REMOVE FRONT BUMPER REINFORCEMENT

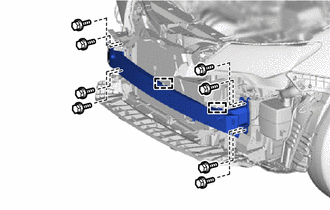

    1. A01QSTB

      Detach the 2 clamps.

    2. Remove the 8 bolts and front bumper reinforcement.

  10. REMOVE HEADLIGHT ASSEMBLY LH


    1. for Halogen Headlight:

      Click here

    2. for LED Headlight:

      Click here

  11. REMOVE HEADLIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  12. REMOVE FRONT BUMPER SIDE RETAINER LH

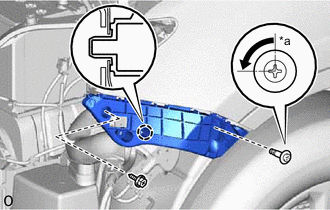

    A01QR3ZC02
    *a 90°

    1. Using a screwdriver, turn the clip 90° and remove the clip.

    2. Remove the screw.

    3. Detach the claw and remove the front bumper side retainer LH.

  13. REMOVE FRONT BUMPER SIDE RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.

  14. REMOVE FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY

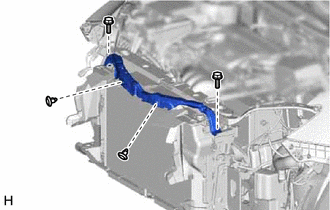

    1. A01QQNB

      Remove the 2 clips.

    2. Remove the 2 bolts and front bumper upper reinforcement sub-assembly.
