FRONT BUMPER REMOVAL

PROCEDURE


  1. REMOVE FRONT FENDER FRONT SPLASH SHIELD LH

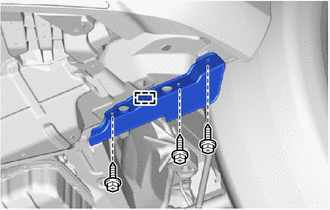

    1. A01KDBY

      Remove the 3 screws.

    2. Detach the clamp and remove the front fender front splash shield LH.

  2. REMOVE FRONT FENDER FRONT SPLASH SHIELD RH

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE FRONT BUMPER COVER

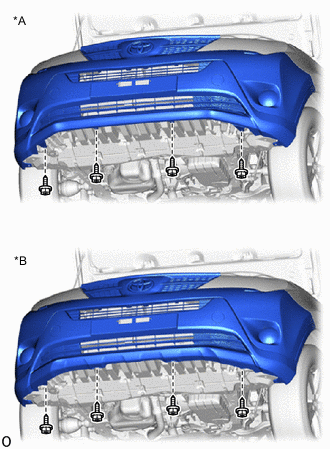

    1. A01KALDC01
      *A for Type A
      *B for Type B

      Remove the 4 screws.

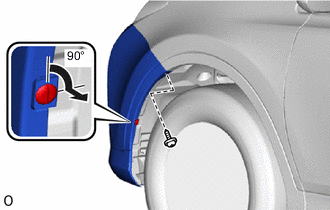

    2. A01KB9AE01

      Using a screwdriver, turn the pin hold clip 90° and remove the pin hold clip and screw.

      Tech Tips

      Use the same procedure for both pin hold clips and screws.

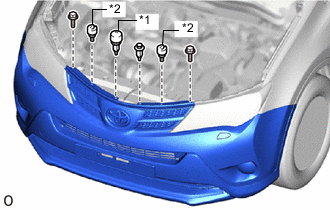

    3. A01KAPBC02
      *1 Center Hood Cushion
      *2 Radiator Grille Protector

      Remove the center hood cushion and 2 radiator grille protectors.

    4. Remove the 2 bolts and clip.

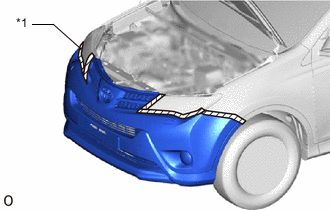

    5. A01KDSOC01
      *1 Protective Tape

      Put protective tape around the front bumper cover.

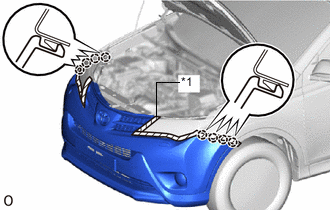

    6. A01KBAQC01
      *1 Protective Tape

      Detach the 8 claws and remove the front bumper cover.

    7. w/ Fog Light:

      Disconnect the 2 fog light connectors.

    8. w/ Headlight Cleaner System:

      Disconnect the headlight washer hose, and then drain the washer fluid.

      Tech Tips

      Use a container to collect the washer fluid.

  4. REMOVE FRONT BUMPER NO. 2 ENERGY ABSORBER

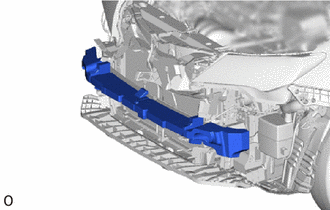

    1. A01KCBH

      Remove the front bumper No. 2 energy absorber.

  5. REMOVE FRONT BUMPER CENTER STAY SUB-ASSEMBLY

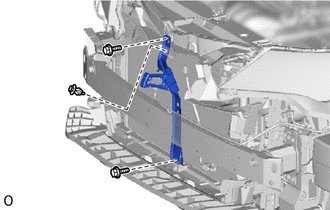

    A01KC26

    1. Remove the clip.

    2. Remove the 2 bolts and front bumper center stay sub-assembly.

  6. REMOVE FRONT BUMPER REINFORCEMENT

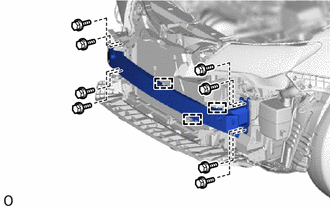

    1. A01KBE9

      Detach the 3 clamps.

    2. Remove the 8 bolts and front bumper reinforcement.

  7. REMOVE HEADLIGHT ASSEMBLY LH


    1. for Halogen Headlight:

      Click here

    2. for HID Headlight:

      Click here

  8. REMOVE HEADLIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE FRONT BUMPER SIDE RETAINER LH

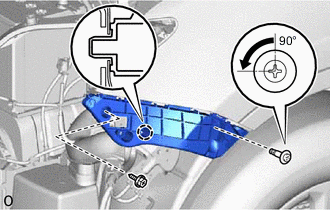

    A01KDL4E01

    1. Using a screwdriver, turn the clip 90° and remove the clip.

    2. Remove the screw.

    3. Detach the claw and remove the front bumper side retainer LH.

  10. REMOVE FRONT BUMPER SIDE RETAINER RH

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE FRONT BUMPER UPPER REINFORCEMENT SUB-ASSEMBLY

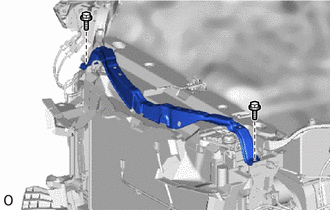

    A01KDG9

    1. Remove the 2 bolts and front bumper upper reinforcement sub-assembly.
