FRONT BUMPER DISASSEMBLY

PROCEDURE


  1. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  2. REMOVE TYPE 1 HEADLIGHT WASHER NOZZLE SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tech Tips

    Use the same procedure described for the LH side.

  3. REMOVE HEADLIGHT CLEANER HOSE (w/ Headlight Cleaner System)

    Click here

  4. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY LH (w/ Headlight Cleaner System)

    Click here

  5. REMOVE HEADLIGHT WASHER ACTUATOR SUB-ASSEMBLY RH (w/ Headlight Cleaner System)

    Tech Tips

    Use the same procedure described for the LH side.

  6. REMOVE HOOD TO FRONT END PANEL SEAL

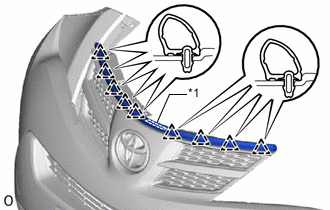

    1. A01KALCC01
      *1 Double-sided Tape

      Detach the 9 clips.

    2. Detach the double-sided tape to remove the hood to front end panel seal.

  7. REMOVE FOG LIGHT ASSEMBLY LH (w/ Fog Light)

    Click here

  8. REMOVE FOG LIGHT ASSEMBLY RH (w/ Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE FRONT BUMPER HOLE COVER LH (w/ Fog Light)

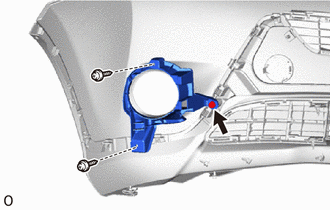

    1. A01KDQ1

      Remove the clip.

    2. Remove the 2 screws and front bumper hole cover LH.

  10. REMOVE FRONT BUMPER HOLE COVER RH (w/ Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  11. REMOVE FRONT BUMPER HOLE COVER LH (w/o Fog Light)

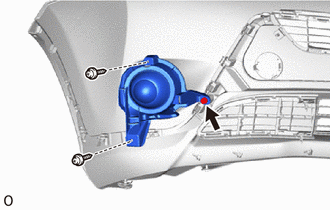

    1. A01KAT3

      Remove the clip.

    2. Remove the 2 screws and front bumper hole cover LH.

  12. REMOVE FRONT BUMPER HOLE COVER RH (w/o Fog Light)

    Tech Tips

    Use the same procedure described for the LH side.

  13. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY LH

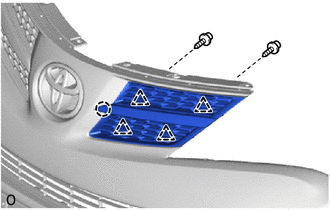

    1. A01KCQO

      Remove the 2 screws.

    2. Detach the claw.

    3. Detach the 4 clips and remove the radiator grille garnish sub-assembly LH.

  14. REMOVE RADIATOR GRILLE GARNISH SUB-ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  15. REMOVE FRONT BUMPER EMBLEM SUB-ASSEMBLY


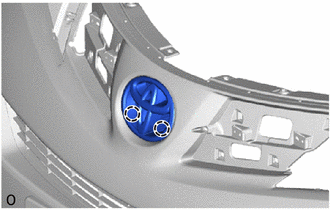

    1. A01KAJ8

      Detach the 2 claws and remove the front bumper emblem sub-assembly.

  16. REMOVE FRONT BUMPER ARM HOLE COVER LH

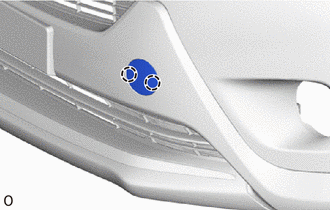

    1. A01KD3O

      Detach the 2 claws and remove the front bumper arm hole cover LH.

  17. REMOVE FRONT BUMPER ARM HOLE COVER RH

    Tech Tips

    Use the same procedure described for the LH side.

  18. REMOVE FRONT BUMPER EXTENSION LH

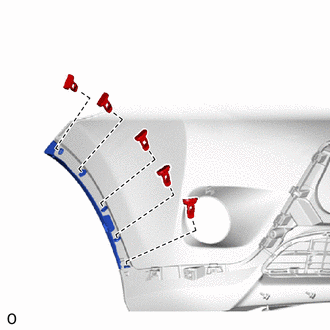

    1. A01KARN

      Remove the 5 retainers and front bumper extension LH.

  19. REMOVE FRONT BUMPER EXTENSION RH

    Tech Tips

    Use the same procedure described for the LH side.

  20. REMOVE LOWER NO. 1 RADIATOR GRILLE

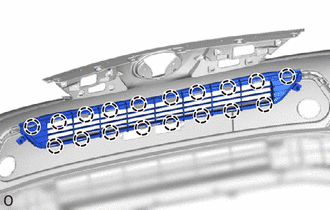

    1. A01KCM4

      Detach the 18 claws and remove the lower No. 1 radiator grille.

  21. REMOVE LOWER RADIATOR GRILLE LH (for Automatic Transaxle (U660F))

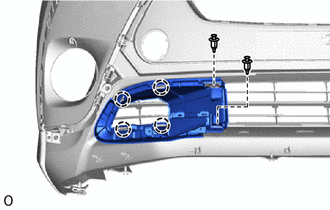

    1. A01KDFO

      Remove the 2 clips.

    2. Detach the 4 claws and remove the lower radiator grille LH.

  22. REMOVE LOWER RADIATOR GRILLE LH

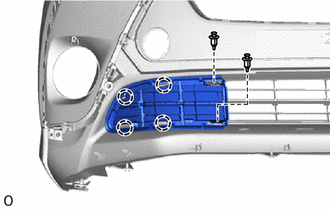

    1. A01KAUT

      Remove the 2 clips.

    2. Detach the 4 claws and remove the lower radiator grille LH.

  23. REMOVE LOWER RADIATOR GRILLE RH

    Tech Tips

    Use the same procedure described for the LH side.

  24. REMOVE FRONT BUMPER GUARD

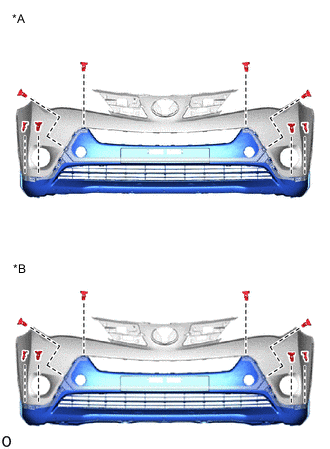

    1. A01KDJSC01
      *A for Type A
      *B for Type B

      Remove the 8 retainers and front bumper guard.

  25. REMOVE FRONT BUMPER MOULDING SUB-ASSEMBLY

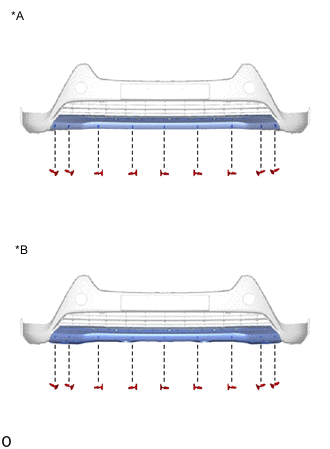

    1. A01KBSZC01
      *A for Type A
      *B for Type B

      Remove the 9 retainers and front bumper moulding sub-assembly.

  26. REMOVE FRONT BUMPER MOULDING (for Type B)


    1. Detach the double-sided tape to remove the front bumper moulding.

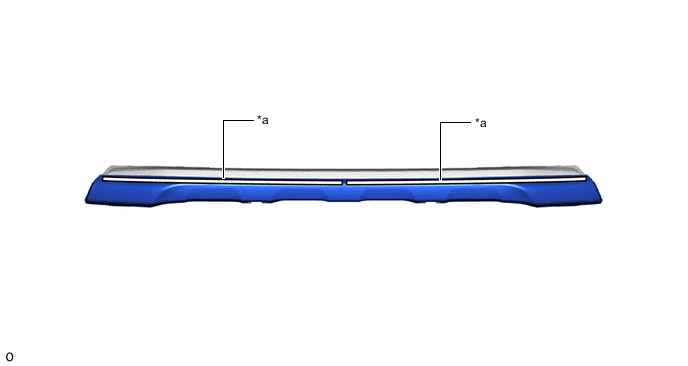

      A01KBU7C01
      *a Double-sided Tape - -

  27. REMOVE FRONT BUMPER MOULDING PROTECTOR (for Type B)

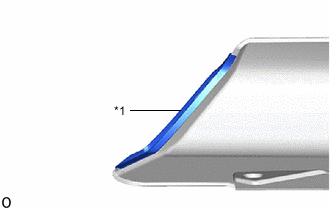

    1. A01KBUMC01
      *1 Front Bumper Moulding Protector

      Remove the front bumper moulding protector.
