ROOF HEADLINING DISASSEMBLY

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

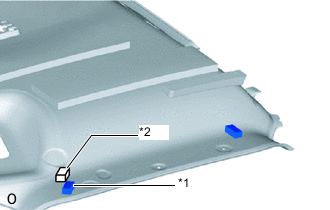

  1. REMOVE CENTER ROOF HEADLINING PAD


    1. B002AHDC01
      *1 for Type A
      *2 for Type B

      Remove the 2 center roof headlining pads.

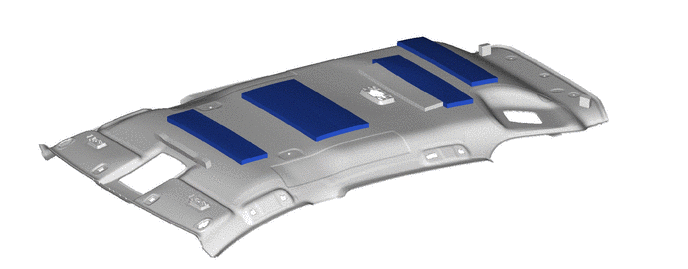

  2. REMOVE NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)


    1. Remove the 5 No. 1 roof silencer pads.

      B0029H1

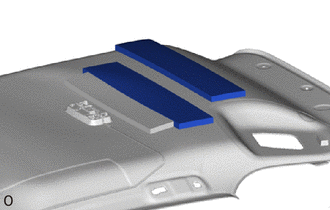

  3. REMOVE NO. 1 ROOF SILENCER PAD (w/ Sliding Roof)


    1. B002AE6

      Remove the 2 No. 1 roof silencer pads.

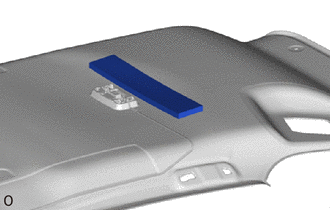

  4. REMOVE NO. 3 ROOF SILENCER PAD


    1. B002AOA

      Remove the No. 3 roof silencer pad.

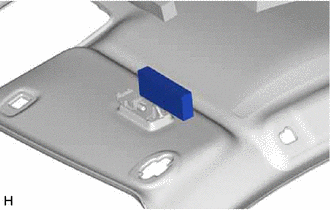

  5. REMOVE ROOF HEADLINING PAD (for Cold Area)

    Tech Tips

    Use the same procedure for both roof headlining pads.


    1. B002AFB

      Remove the roof headlining pad.

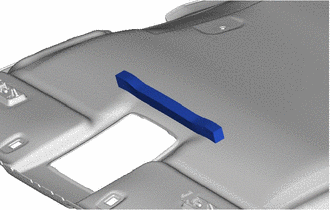

  6. REMOVE NO. 2 ROOF HEADLINING PAD (for Cold Area)


    1. B002APE

      Remove the No. 2 roof headlining pad.

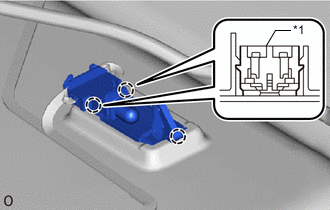

  7. REMOVE VANITY LIGHT ASSEMBLY LH


    1. B002ADKC01
      *1 Bulb Holder

      Detach the 2 claws and disconnect the bulb holder from the vanity light assembly LH.

    2. Detach the claw and remove the vanity light assembly LH.

  8. REMOVE VANITY LIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  9. REMOVE NO. 1 ROOF WIRE


    1. w/o Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

      4. Remove the remaining double-sided tape.

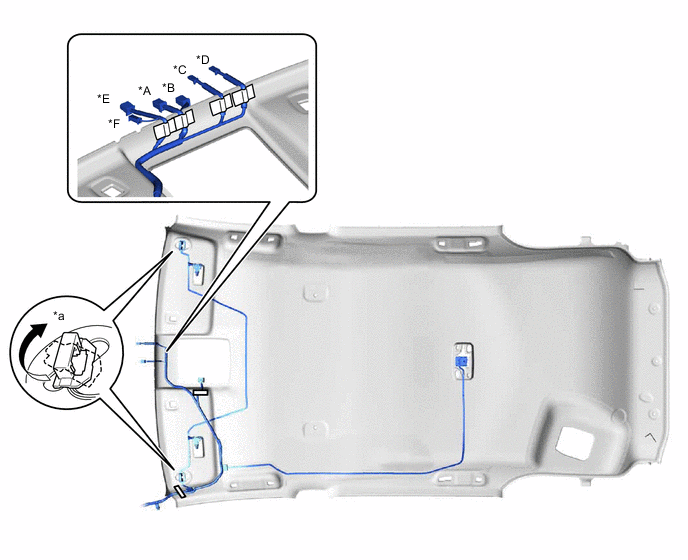

        B0029TUC01
        *A w/ EC Mirror, w/o Pre-crash Safety System *B w/ EC Mirror, w/ Pre-crash Safety System
        *C w/ Rain Sensor, w/o Pre-crash Safety System *D w/ Rain Sensor, w/ Pre-crash Safety System
        *E w/ Pre-crash Safety System *F w/ Camera Heater
        *a 90° - -
        B002AN0 One-sided Tape - -

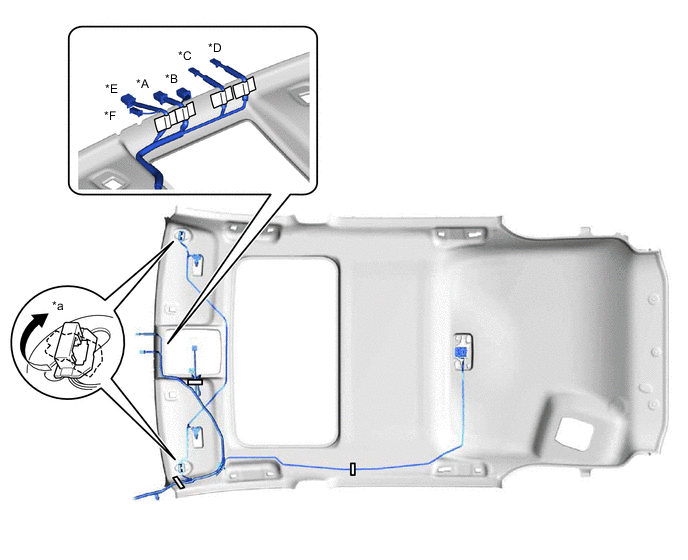

    2. w/ Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

      4. Remove the remaining double-sided tape.

        B0029L6C01
        *A w/ EC Mirror, w/o Pre-crash Safety System *B w/ EC Mirror, w/ Pre-crash Safety System
        *C w/ Rain Sensor, w/o Pre-crash Safety System *D w/ Rain Sensor, w/ Pre-crash Safety System
        *E w/ Pre-crash Safety System *F w/ Camera Heater
        *a 90° - -
        B002AN0 One-sided Tape - -

  10. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

    Click here

  11. REMOVE TONNEAU COVER STOPPER SILENCER (w/ Silencer)

    Tech Tips

    Use the same procedure for both tonneau cover stopper silencers.


    1. B0029GO

      Remove the tonneau cover stopper silencer.

  12. REMOVE TONNEAU COVER STOPPER

    Tech Tips

    Use the same procedure for both tonneau cover stoppers.


    1. B0029MW

      Remove the 2 screws and tonneau cover stopper.
