ROOF HEADLINING DISASSEMBLY

PROCEDURE


  1. REMOVE CENTER ROOF HEADLINING PAD

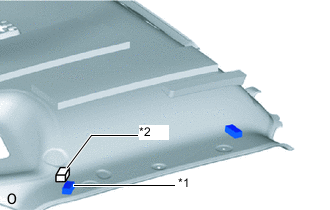

    1. A01CYSSC01
      *1 for Type A
      *2 for Type B

      Remove the 2 center roof headlining pads.

  2. REMOVE ROOF HEADLINING PAD RH (w/ Roof Headlining Support)

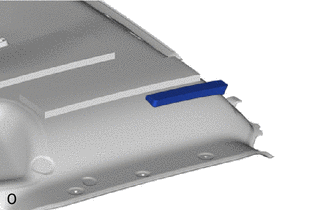

    1. A01CYVT

      Remove the roof headlining pad RH.

  3. REMOVE NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)


    1. Remove the 5 No. 1 roof silencer pads.

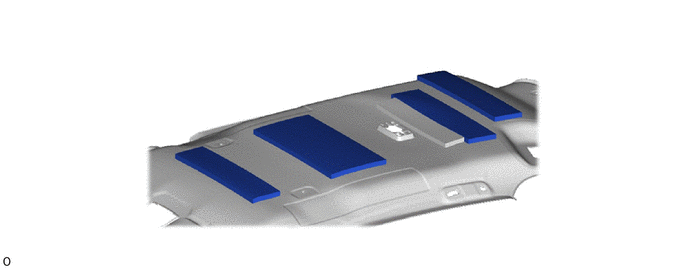

      A01CWXG

  4. REMOVE NO. 1 ROOF SILENCER PAD (w/ Sliding Roof)

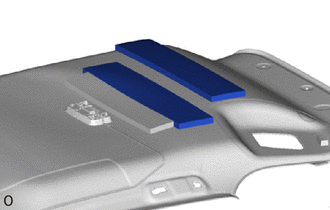

    1. A01CXF5

      Remove the 2 No. 1 roof silencer pads.

  5. REMOVE NO. 3 ROOF SILENCER PAD

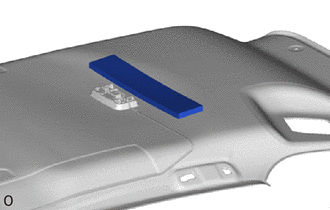

    1. A01CYM9

      Remove the No. 3 roof silencer pad.

  6. REMOVE ROOF HEADLINING PAD (w/o Roof Headlining Support, for Cold Area)

    Tech Tips

    Use the same procedure for both roof headlining pads.

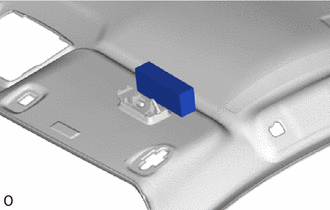

    1. A01CWI2

      Remove the roof headlining pad.

  7. REMOVE ROOF HEADLINING PAD (w/ Roof Headlining Support)

    Tech Tips

    Use the same procedure for both roof headlining pads.


    1. A01CWI2

      Remove the roof headlining pad.

  8. REMOVE NO. 2 ROOF HEADLINING PAD (w/o Roof Headlining Support, for Cold Area)

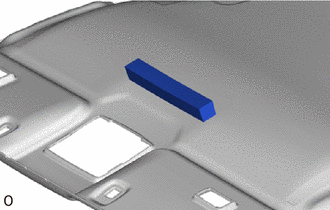

    1. A01CY8M

      Remove the No. 2 roof headlining pad.

  9. REMOVE NO. 2 ROOF HEADLINING PAD (w/ Roof Headlining Support)


    1. A01CY8M

      Remove the No. 2 roof headlining pad.

  10. REMOVE VANITY LIGHT ASSEMBLY LH

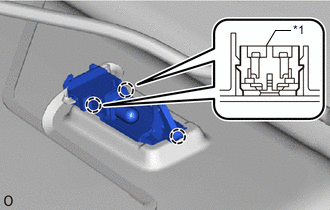

    1. A01CW39C01
      *1 Bulb Holder

      Detach the 2 claws and disconnect the bulb holder from the vanity light assembly LH.

    2. Detach the claw and remove the vanity light assembly LH.

  11. REMOVE VANITY LIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  12. REMOVE NO. 1 ROOF WIRE


    1. w/o Roof Headlining Support, w/o Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

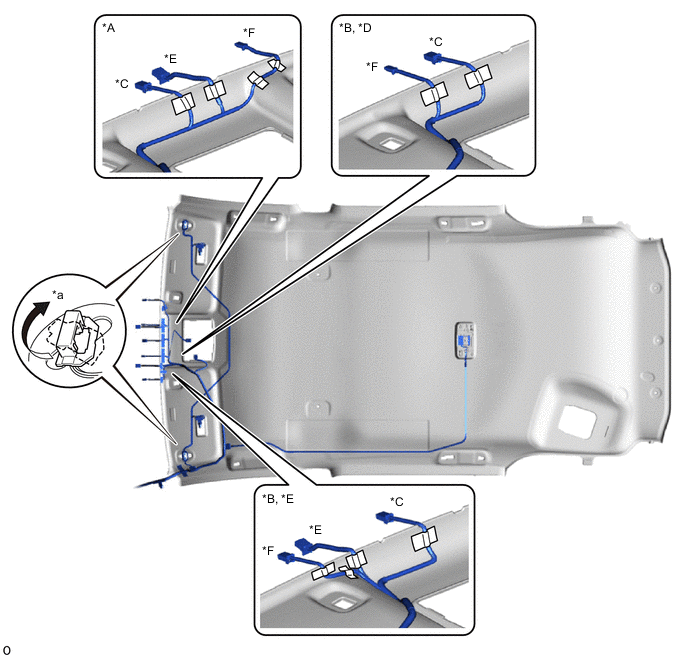

        A01CYKDC01
        *A for LHD *B for RHD
        *C w/ EC Mirror *D w/o Lane Departure Alert System
        *E w/ Lane Departure Alert System *F w/ Rain Sensor
        *a 90° - -
        A01CYOX One-sided Tape - -

      4. Remove the remaining double-sided tape.

    2. w/ Roof Headlining Support, w/o Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

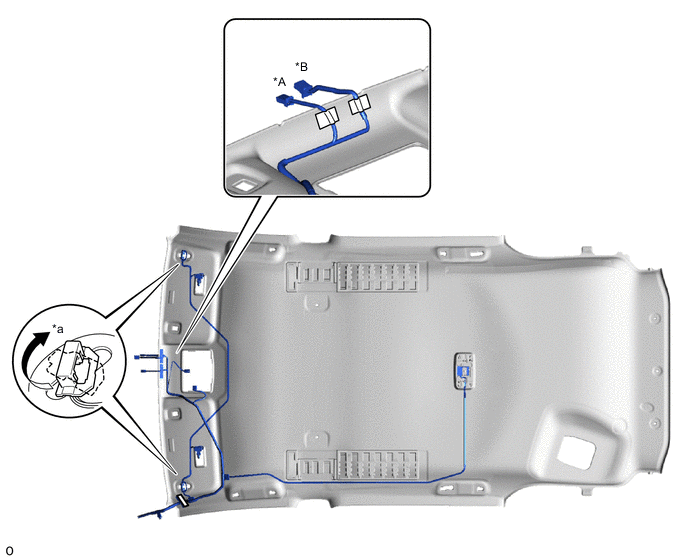

        A01CYW4C01
        *A w/ EC Mirror *B w/ Lane Departure Alert System
        *a 90° - -
        A01CYOX One-sided Tape - -

      4. Remove the remaining double-sided tape.

    3. w/o Roof Headlining Support, w/ Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

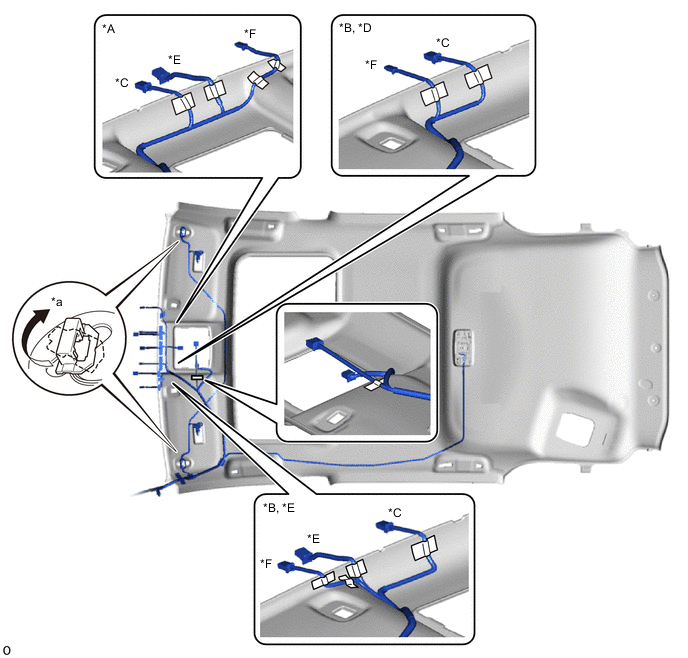

        A01CYQ7C01
        *A for LHD *B for RHD
        *C w/ EC Mirror *D w/o Lane Departure Alert System
        *E w/ Lane Departure Alert System *F w/ Rain Sensor
        *a 90° - -
        A01CYOX One-sided Tape - -

      4. Remove the remaining double-sided tape.

    4. w/ Roof Headlining Support, w/ Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

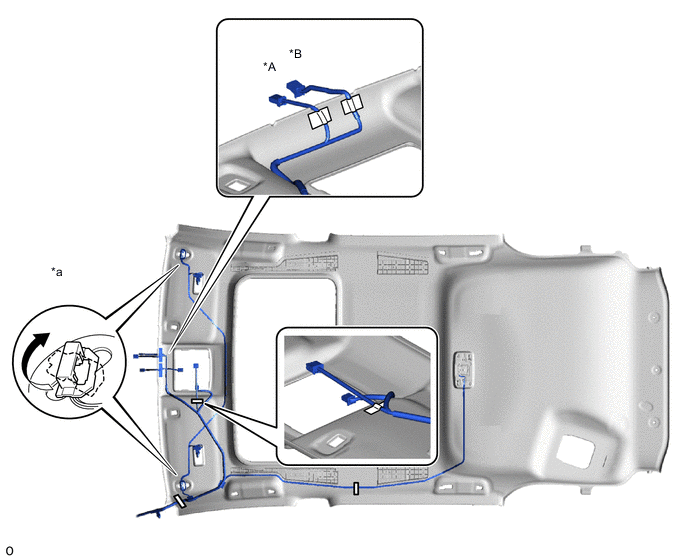

        A01CX4HC01
        *A w/ EC Mirror *B w/ Lane Departure Alert System
        *a 90° - -
        A01CYOX One-sided Tape - -

      4. Remove the remaining double-sided tape.

  13. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

    Click here

  14. REMOVE NO. 2 ROOF HEADLINING SUPPORT (w/ Roof Headlining Support)

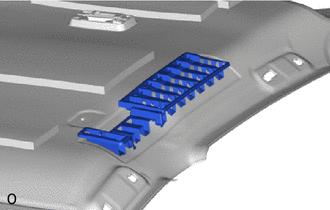

    1. A01CY9S

      w/o Sliding Roof:

      Remove the No. 2 roof headlining support.

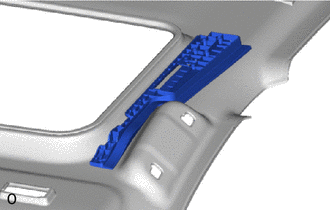

    2. A01CWBJ

      w/ Sliding Roof:

      Remove the No. 2 roof headlining support.

  15. REMOVE ROOF HEADLINING SUPPORT (w/ Roof Headlining Support)

    Tech Tips

    Use the same procedure described for the No. 2 roof headlining support.

  16. REMOVE NO. 4 ROOF HEADLINING SUPPORT (w/ Roof Headlining Support, w/ Sliding Roof)

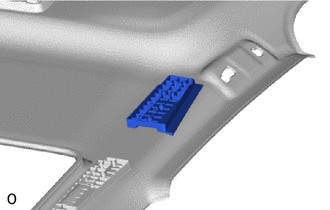

    1. A01CWQS

      Remove the No. 4 roof headlining support.

  17. REMOVE NO. 3 ROOF HEADLINING SUPPORT (w/ Roof Headlining Support, w/ Sliding Roof)

    Tech Tips

    Use the same procedure described for the No. 4 roof headlining support.
