ROOF HEADLINING DISASSEMBLY

PROCEDURE


  1. REMOVE CENTER ROOF HEADLINING PAD

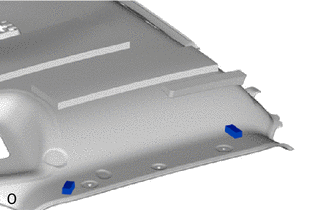

    1. A00YT74

      Remove the 2 center roof headlining pads.

  2. REMOVE ROOF HEADLINING PAD RH (w/ Roof Headlining Support)

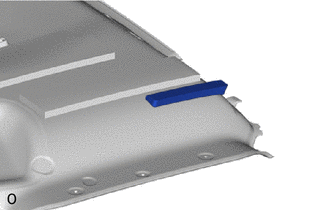

    1. A00YS3Q

      Remove the roof headlining pad RH.

  3. REMOVE NO. 1 ROOF SILENCER PAD (w/o Sliding Roof)


    1. Remove the 5 No. 1 roof silencer pads.

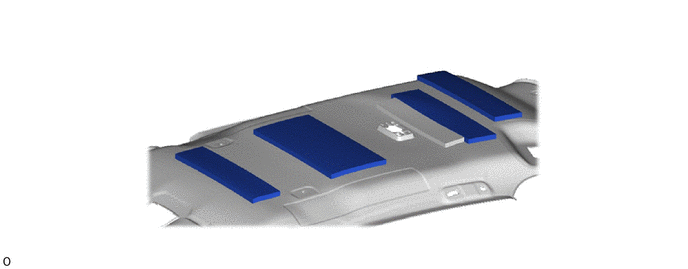

      A00YVVF

  4. REMOVE NO. 1 ROOF SILENCER PAD (w/ Sliding Roof)

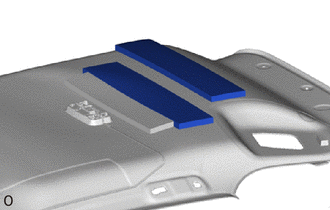

    1. A00YUYP

      Remove the 2 No. 1 roof silencer pads.

  5. REMOVE NO. 3 ROOF SILENCER PAD

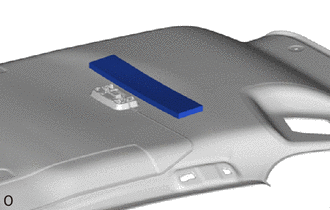

    1. A00YUA8

      Remove the No. 3 roof silencer pad.

  6. REMOVE ROOF HEADLINING PAD (w/o Headlining Support, for Cold Area)

    Tech Tips

    Use the same procedure for both roof headlining pads.


    1. A00YUF6

      Remove the roof headlining pad.

  7. REMOVE ROOF HEADLINING PAD (w/ Headlining Support)

    Tech Tips

    Use the same procedure for both roof headlining pads.

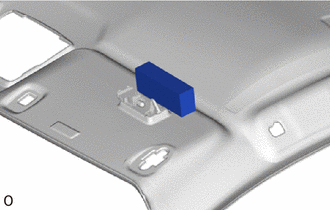

    1. A00YUF6

      Remove the roof headlining pad.

  8. REMOVE NO. 2 ROOF HEADLINING PAD (w/o Headlining Support, for Cold Area)

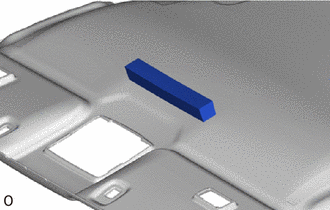

    1. A00YXEZ

      Remove the No. 2 roof headlining pad.

  9. REMOVE NO. 2 ROOF HEADLINING PAD (w/ Headlining Support)


    1. A00YXEZ

      Remove the No. 2 roof headlining pad.

  10. REMOVE VANITY LIGHT ASSEMBLY LH

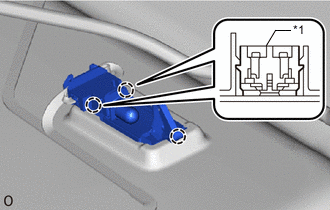

    1. A00YRNEC01
      *1 Bulb Holder

      Detach the 2 claws and disconnect the bulb holder from the vanity light assembly LH.

    2. Detach the claw and remove the vanity light assembly LH.

  11. REMOVE VANITY LIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedure described for the LH side.

  12. REMOVE NO. 1 ROOF WIRE


    1. w/o Roof Headlining Support, w/o Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

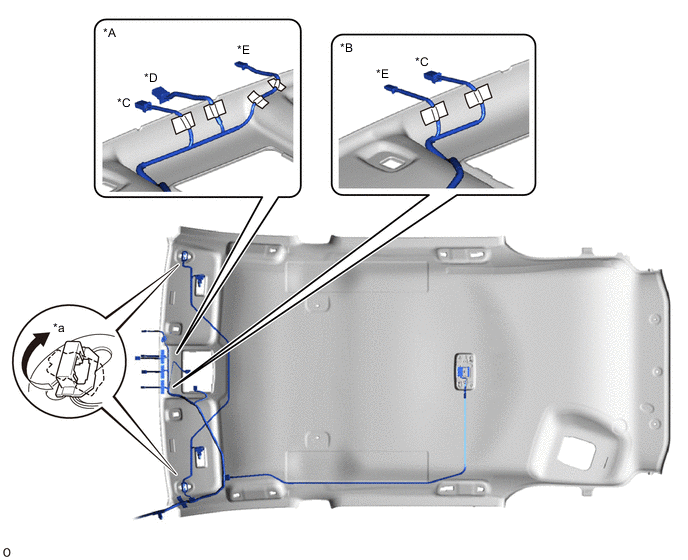

        A00YX09C01
        *A for LHD *B for RHD
        *C w/ EC Mirror *D w/ Lane Departure Alert System
        *E w/ Rain Sensor - -
        *a 90° - -
        A00YQYE One-sided Tape - -

      4. Remove the remaining double-sided tape.

    2. w/ Roof Headlining Support, w/o Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

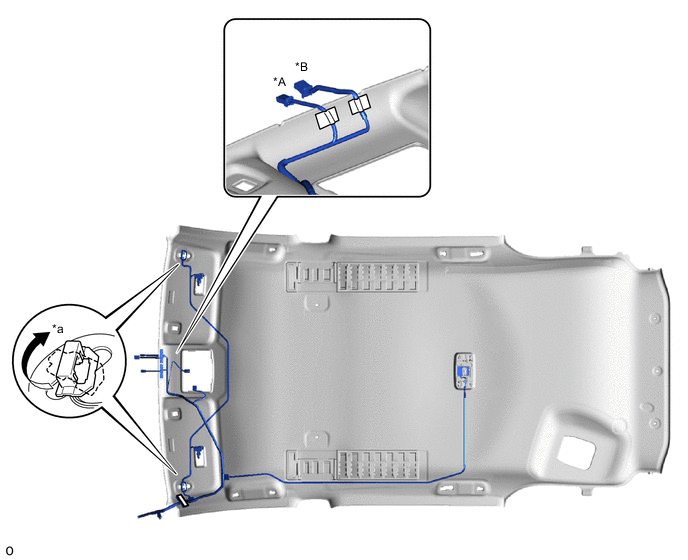

        A00YURVC01
        *A w/ EC Mirror *B w/ Lane Departure Alert System
        *a 90° - -
        A00YQYE One-sided Tape - -

      4. Remove the remaining double-sided tape.

    3. w/o Roof Headlining Support, w/ Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

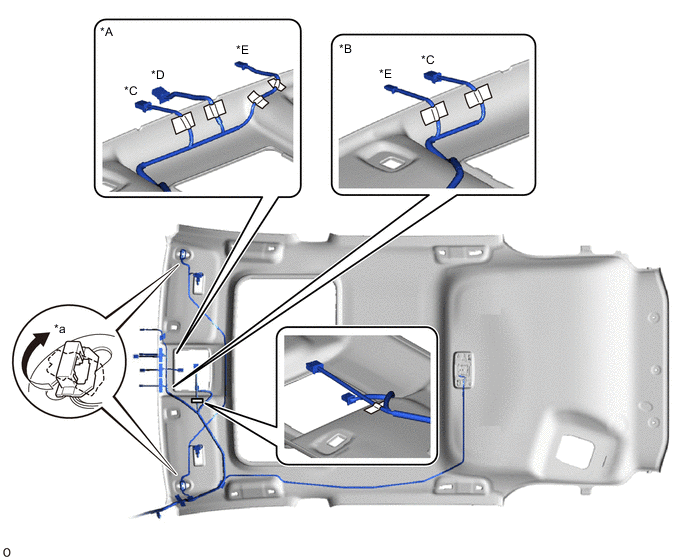

        A00YTJVC01
        *A for LHD *B for RHD
        *C w/ EC Mirror *D w/ Lane Departure Alert System
        *E w/ Rain Sensor - -
        *a 90° - -
        A00YQYE One-sided Tape - -

      4. Remove the remaining double-sided tape.

    4. w/ Roof Headlining Support, w/ Sliding Roof:


      1. Turn the 2 connectors approximately 90° clockwise and disconnect them.

      2. Remove the one-sided tape.

      3. Remove the remaining No. 1 roof wire from the double-sided tape.

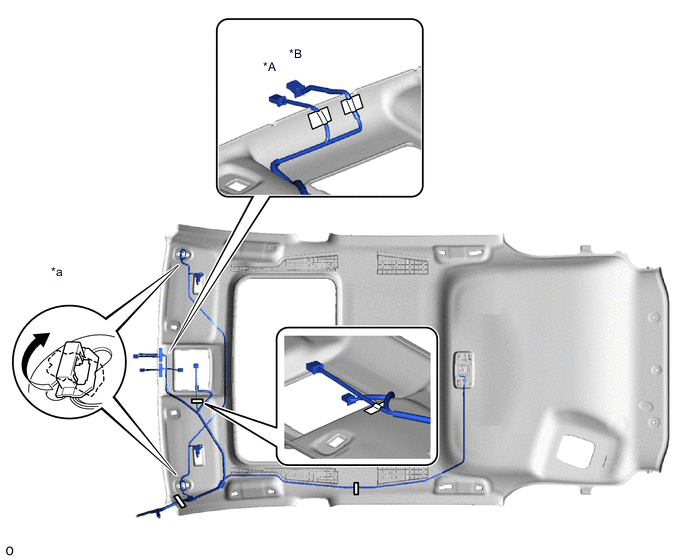

        A00YWSCC01
        *A w/ EC Mirror *B w/ Lane Departure Alert System
        *a 90° - -
        A00YQYE One-sided Tape - -

      4. Remove the remaining double-sided tape.

  13. REMOVE NO. 2 ANTENNA CORD SUB-ASSEMBLY

    Click here

  14. REMOVE NO. 2 ROOF HEADLINING SUPPORT (w/ Roof Headlining Support)

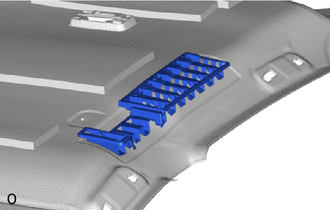

    1. A00YTCW

      w/o Slidong Roof:

      Remove the No. 2 roof headlining support.

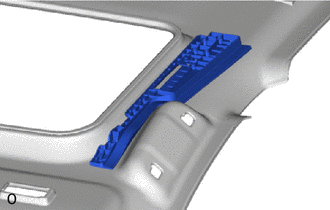

    2. A00YXMK

      w/ Slidong Roof:

      Remove the No. 2 roof headlining support.

  15. REMOVE ROOF HEADLINING SUPPORT (w/ Roof Headlining Support)

    Tech Tips

    Use the same procedure described for the No. 2 roof headlining support.

  16. REMOVE NO. 4 ROOF HEADLINING SUPPORT (w/ Roof Headlining Support, w/ Sliding Roof)

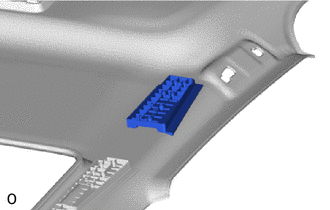

    1. A00YSDQ

      Remove the No. 4 roof headlining support.

  17. REMOVE NO. 3 ROOF HEADLINING SUPPORT (w/ Roof Headlining Support, w/ Sliding Roof)

    Tech Tips

    Use the same procedure described for the No. 4 roof headlining support.
