COMPRESSOR(for 1AD-FTV, 2AD-FHV, 2AD-FTV) REMOVAL

PROCEDURE


  1. RECOVER REFRIGERANT FROM REFRIGERATION SYSTEM

    Click here

  2. REMOVE V-RIBBED BELT

    for 1AD-FTV: Click here

    for 2AD-FHV: Click here

    for 2AD-FTV: Click here

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  4. REMOVE REAR ENGINE UNDER COVER LH

    Click here

  5. REMOVE REAR ENGINE UNDER COVER RH

    Click here

  6. REMOVE ENGINE FRONT MOUNTING BRACKET REINFORCEMENT LOWER (for 1AD-FTV)

    Click here

  7. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT LH

    Click here

  8. REMOVE FRONT SUSPENSION MEMBER REINFORCEMENT RH

    Click here

  9. REMOVE FRONT CROSSMEMBER SUB-ASSEMBLY

    Click here

  10. REMOVE NO. 3 AIR HOSE

    Click here

  11. REMOVE NO. 2 AIR TUBE

    Click here

  12. DISCONNECT DISCHARGE HOSE SUB-ASSEMBLY

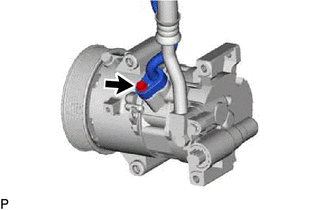

    1. A00YTKC

      Remove the bolt and disconnect the discharge hose sub-assembly from the compressor assembly with pulley.

    2. Remove the O-ring from the discharge hose sub-assembly.

      Note

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  13. DISCONNECT SUCTION HOSE SUB-ASSEMBLY

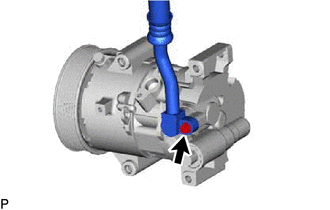

    1. A00YSIT

      Remove the bolt and disconnect the suction hose sub-assembly from the compressor assembly with pulley.

    2. Remove the O-ring from the suction hose sub-assembly.

      Note

      Seal the openings of the disconnected parts using vinyl tape to prevent entry of moisture and foreign matter.

  14. REMOVE COMPRESSOR ASSEMBLY WITH PULLEY

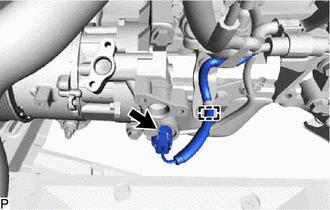

    1. A00YX7H

      Disconnect the connector and detach the harness clamp.

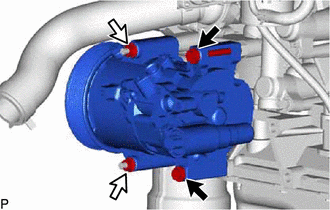

    2. A00YULO

      Remove the 2 bolts and 2 nuts.

    3. Using an E8 ''TORX'' socket wrench, remove the 2 stud bolts and compressor assembly with pulley.
