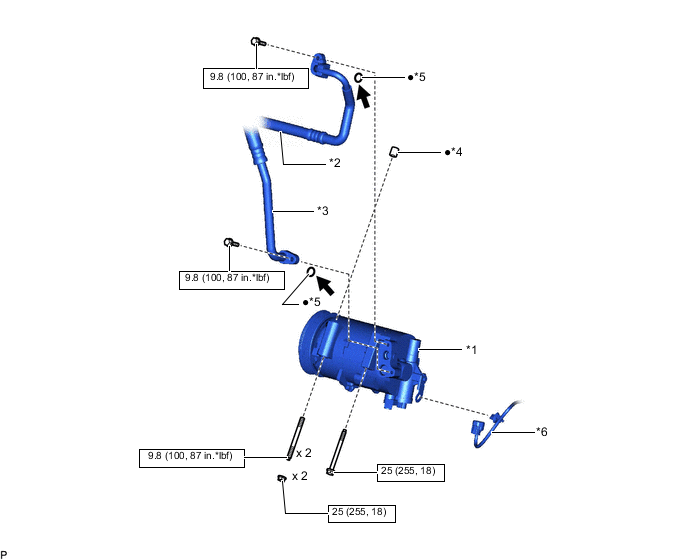

COMPRESSOR(for 2WW) COMPONENTS

ILLUSTRATION

A01V8X3C01
*1 COMPRESSOR ASSEMBLY WITH PULLEY *2 DISCHARGE HOSE SUB-ASSEMBLY
*3 SUCTION HOSE SUB-ASSEMBLY *4 COMPRESSOR PIN
*5 O-RING *6 WIRE HARNESS
A01V8G2 N*m (kgf*cm, ft.*lbf): Specified torque ● Non-reusable part
A01V9RL

for HFC-134a(R134a):

Compressor oil ND-OIL 8 or equivalent

for HFO-1234yf(R1234yf):

Compressor oil ND-OIL 12 or equivalent

 - -
