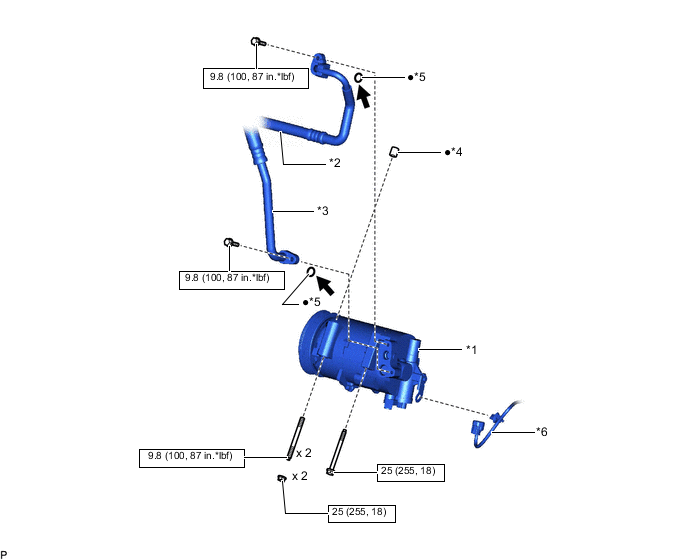

COMPRESSOR(for 2WW) COMPONENTS
ILLUSTRATION
| *1 | COMPRESSOR ASSEMBLY WITH PULLEY | *2 | DISCHARGE HOSE SUB-ASSEMBLY |
| *3 | SUCTION HOSE SUB-ASSEMBLY | *4 | COMPRESSOR PIN |
| *5 | O-RING | *6 | WIRE HARNESS |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Compressor oil ND-OIL 8 or equivalent | - | - |
