AIR CONDITIONING SYSTEM(for Automatic Air Conditioning System) ECO Switch Circuit

DESCRIPTION

When the combination switch assembly (ECO mode switch) is turned on, the air conditioning amplifier assembly receives a combination switch assembly (ECO mode switch) ON signal and controls the air conditioning to enhance fuel efficiency.

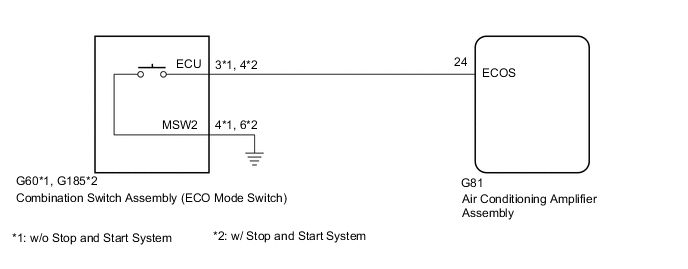

WIRING DIAGRAM

A01V8KZE20

CAUTION / NOTICE / HINT

Note

When the battery is disconnected or the air conditioning amplifier assembly is replaced, be sure to perform servo motor initialization

Click here

PROCEDURE


  1. READ VALUE USING GTS


    1. Connect the GTS to the DLC3.

    2. Turn the ignition switch to ON.

    3. Turn the GTS on.

    4. Enter the following menus: Body Electrical / Air Conditioner / Data List.

    5. Check the values by referring to the table below.


      Body Electrical > Air Conditioner > Data List
      Tester Display Measurement Item Range Normal Condition Diagnostic Note
      ECO Switch Combination switch assembly (ECO mode switch) OFF or ON

      OFF: Combination switch assembly (ECO mode switch) not operated

      ON: Combination switch assembly (ECO mode switch) operated

      		 -

      Body Electrical > Air Conditioner > Data List
      Tester Display
      ECO Switch
      OK
      Combination switch assembly (ECO mode switch) condition displayed on the GTS changes with the actual switch operation.
      Result
      Proceed to
      OK
      NG

    OK

    PROCEED TO NEXT SUSPECTED AREA SHOWN IN PROBLEM SYMPTOMS TABLE Click here

    NG

  2. INSPECT COMBINATION SWITCH ASSEMBLY (ECO MODE SWITCH)


    1. Remove the combination switch assembly (ECO mode switch).


    2. Inspect the combination switch assembly (ECO mode switch).


      Result
      Proceed to
      OK
      NG

    NG

    REPLACE COMBINATION SWITCH ASSEMBLY (ECO MODE SWITCH) w/o Stop and Start System: Click here w/ Stop and Start System: Click here

    OK

  3. CHECK HARNESS AND CONNECTOR (COMBINATION SWITCH ASSEMBLY [ECO MODE SWITCH] - AIR CONDITIONING AMPLIFIER ASSEMBLY)


    1. Disconnect the G81 air conditioning amplifier assembly connector.

    2. Disconnect the G60*1 or G185*2 combination switch assembly (ECO mode switch) connector.


      • *1: w/o Stop and Start System

      • *2: w/ Stop and Start System

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      w/o Stop and Start System
      Tester Connection Condition Specified Condition
      G81-24 (ECOS) - G60-3 (ECU) Always Below 1 Ω
      G81-24 (ECOS) - Body ground Always 10 kΩ or higher
      w/ Stop and Start System
      Tester Connection Condition Specified Condition
      G81-24 (ECOS) - G185-4 (ECU) Always Below 1 Ω
      G81-24 (ECOS) - Body ground Always 10 kΩ or higher
      Result
      Proceed to
      OK
      NG

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  4. CHECK HARNESS AND CONNECTOR (COMBINATION SWITCH ASSEMBLY [ECO MODE SWITCH] - BODY GROUND)


    1. A01VAZJC01
      *A w/o Stop and Start System
      *B w/ Stop and Start System
      *a

      Front view of wire harness connector

      (to Combination Switch Assembly [ECO Mode Switch])

      Disconnect the combination switch assembly (ECO mode switch) connector.

    2. Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      w/o Stop and Start System
      Tester Connection Condition Specified Condition
      G60-4 (MSW2) - Body ground Always Below 1 Ω
      w/ Stop and Start System
      Tester Connection Condition Specified Condition
      G185-6 (MSW2) - Body ground Always Below 1 Ω
      Result
      Proceed to
      OK
      NG

    OK

    REPLACE AIR CONDITIONING AMPLIFIER ASSEMBLY Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
