FRONT SEAT OUTER BELT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. INSTALL FRONT SHOULDER BELT ANCHOR ADJUSTER ASSEMBLY

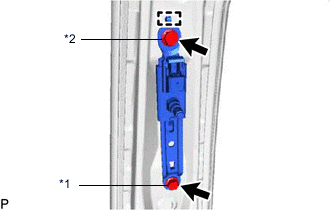

    1. A01QR9XC01
      *1 Bolt (A)
      *2 Bolt (B)

      Attach the guide to temporarily install the front shoulder belt anchor adjuster assembly with the 2 bolts.

    2. Tighten the bolt (A).

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

    3. Tighten the bolt (B).

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

  2. INSTALL FRONT SEAT OUTER BELT ASSEMBLY LH

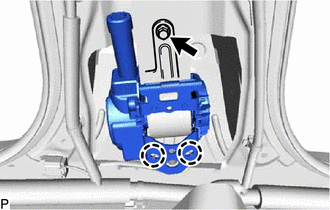

    1. A01QRD7

      Align the 2 claws with the seat belt positioning holes, and install the retractor of the front seat outer belt assembly LH with the bolt as shown in the illustration.

      Torque:
      8.5 N*m  { 87 kgf*cm, 75 in.*lbf }

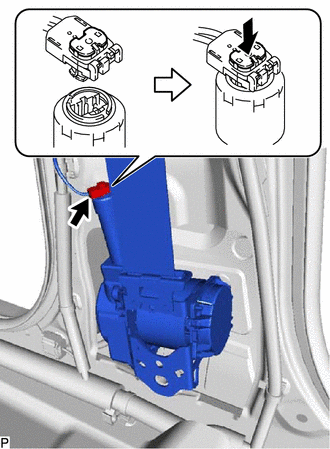

    2. A01QP84

      Connect the pretensioner connector and lock the locking button as shown in the illustration.

      Note

      Securely lock the locking button.

    3. Connect the shoulder anchor of the front seat outer belt assembly with the nut.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

  3. INSTALL FRONT SEAT OUTER BELT ASSEMBLY RH (for Front Passenger Seat Belt with Selectable Force Limiter)

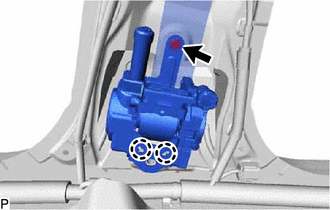

    1. A01QQ7S

      Align the 2 claws with the seat belt positioning holes, and install the retractor of the front seat outer belt assembly RH with the bolt as shown in the illustration.

      Torque:
      8.5 N*m  { 87 kgf*cm, 75 in.*lbf }

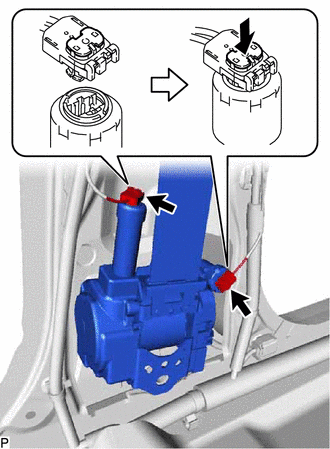

    2. A01QSPQ

      Connect the pretensioner connector and selectable force limiter connector, and lock the 2 locking buttons as shown in the illustration.

      Note

      Securely lock the locking button.

    3. Connect the shoulder anchor of the front seat outer belt assembly with the nut.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

  4. INSTALL CENTER PILLAR GARNISH LH

    Click here

  5. INSTALL LOWER CENTER PILLAR GARNISH LH

    Click here

  6. CONNECT FRONT SEAT OUTER BELT ASSEMBLY LH


    1. Connect the floor anchor of the front seat outer belt assembly LH with the bolt.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

    2. Check that the front seat outer belt assembly LH is not twisted.

  7. INSTALL OUTER LAP BELT ANCHOR COVER


    1. Attach the 3 claws to install the outer lap belt anchor cover.

  8. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  9. INSTALL REAR DOOR SCUFF PLATE LH

    Click here

  10. INSTALL FRONT DOOR OPENING TRIM WEATHERSTRIP LH

    Click here

  11. INSTALL FRONT DOOR SCUFF PLATE LH

    Click here

  12. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  13. CHECK SRS WARNING LIGHT

    Click here
