FOOTWELL LIGHT(for Driver Side) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE


  1. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY

    Click here

  2. REMOVE NO. 1 INTERIOR ILLUMINATION LIGHT ASSEMBLY

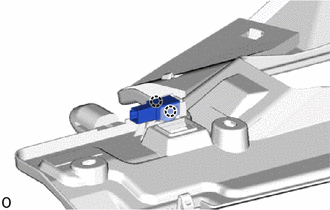

    1. A01VAPA

      Detach the 2 claws to remove the No. 1 interior illumination light assembly.
