DOOR CONTROL RECEIVER INSTALLATION

CAUTION / NOTICE / HINT

PROCEDURE

1. INSTALL DOOR CONTROL AND TIRE PRESSURE MONITORING SYSTEM RECEIVER ASSEMBLY (w/ Tire Pressure Warning System)




   1.

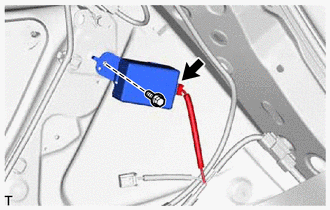

      Install the door control and tire pressure monitoring system receiver assembly with the bolt.

      Torque:

      8.3 N*m  { 85 kgf*cm, 73 in.*lbf }

   2. Connect the connector.

2. INSTALL DOOR CONTROL RECEIVER (w/o Tire Pressure Warning System)




   1.

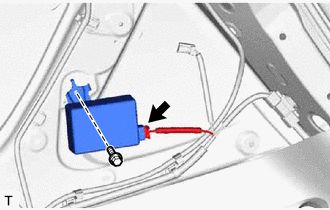

      Install the door control receiver with the bolt.

      Torque:

      8.3 N*m  { 85 kgf*cm, 73 in.*lbf }

   2. Connect the connector.

3. INSTALL INNER ROOF SIDE GARNISH ASSEMBLY RH

   Click here

4. INSTALL SEAT BELT ANCHOR COVER CAP

   Click here

5. INSTALL DECK TRIM SIDE PANEL ASSEMBLY RH

   Click here

6. INSTALL REAR NO. 1 FLOOR MAT SUPPORT SIDE PLATE

   Click here

7. INSTALL REAR FLOOR FINISH PLATE (w/o Spare Tire, for Compact Spare Tire)

   Click here

8. INSTALL REAR DECK TRIM COVER (w/ Grand Spare Tire)

   Click here

9. INSTALL DECK BOARD ASSEMBLY (w/o Spare Tire, for Compact Spare Tire)

   Click here

10. INSTALL DECK BOARD ASSEMBLY (w/ Grand Spare Tire)

    Click here

11. INSTALL TONNEAU COVER ASSEMBLY (w/ Tonneau Cover)

    Click here

12. INSTALL PACKAGE TRAY TRIM POCKET SUB-ASSEMBLY (w/ Partition Net)

    Click here

13. INSTALL REAR DOOR OPENING TRIM WEATHERSTRIP RH

    Click here

14. INSTALL REAR DOOR SCUFF PLATE RH

    Click here
