FRONT SEAT ASSEMBLY(for Manual Seat) REASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

  • A bolt without a torque specification is shown in the standard bolt chart.

    Click here

PROCEDURE


  1. INSTALL SEAT ADJUSTER COVER CAP


    1. Install the 2 seat adjuster cover caps to the separate type front seat cushion spring assembly LH.

  2. INSTALL SEAT TRACK ADJUSTING HANDLE

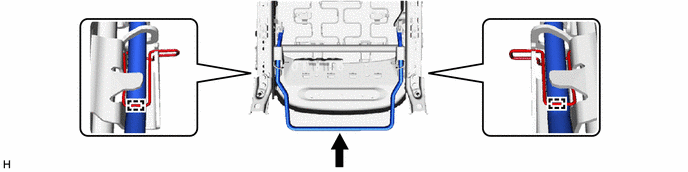

    1. Attach the 2 hooks to install the seat track adjusting handle in the direction indicated by the arrow in the illustration.

      A00YVWN

  3. INSTALL FRONT OUTER SEAT CUSHION EDGE PROTECTOR LH

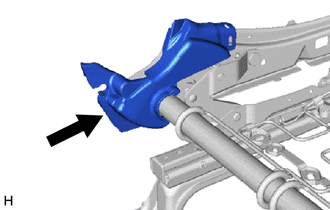

    1. A00YTHQ

      Install the front outer seat cushion edge protector LH in the direction indicated by the arrow in the illustration.

  4. INSTALL FRONT INNER SEAT CUSHION EDGE PROTECTOR LH

    Tech Tips

    Use the same procedure described for the front outer seat cushion edge protector LH.

  5. INSTALL FRONT LOWER SEAT CUSHION SHIELD LH


    1. Attach the clip to install the front lower seat cushion shield LH.

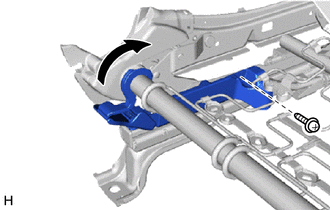

    2. A00YWP8

      Attach the hook in the direction indicated by the arrow in the illustration.

    3. Install the screw.

  6. INSTALL FRONT LOWER SEAT CUSHION SHIELD RH

    Tech Tips

    Use the same procedure described for the front lower seat cushion shield LH.

  7. INSTALL FRONT OUTER SEAT CUSHION EDGE PROTECTOR RH (for Front Passenger Side)

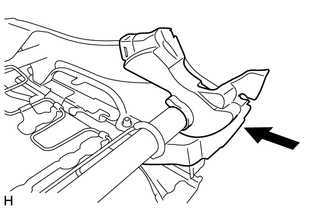

    1. A00YWZP

      Install the front outer seat cushion edge protector RH in the direction indicated by the arrow in the illustration.

  8. INSTALL FRONT INNER SEAT CUSHION EDGE PROTECTOR RH (for Front Passenger Side)

    Tech Tips

    Use the same procedure described for the front outer seat cushion edge protector RH.

  9. INSTALL OCCUPANT DETECTION ECU (for Front Passenger Side, w/ Occupant Classification System)

    Click here

  10. INSTALL FRONT SEAT WIRE RH (for Front Passenger Side, w/ Occupant Classification System)


    1. Attach the 6 clamps to install the front seat wire RH.

    2. Connect the 4 connectors.

      A00YUPE

  11. INSTALL FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)


    1. A00YSOO

      Install the front seat inner belt assembly LH with the nut.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }

    2. Attach the 2 clamps.

    3. for Type A:


      1. A00YQSQC01
        *1 Wire Harness Clamp
        *2 Connector Clamp

        Attach the 2 wire harness clamps and connector clamp.

    4. for Type B:


      1. A00YWI0

        Attach the wire harness clamp.

      2. A00YUUEC01
        *1 Wire Harness Clamp
        *2 Connector Clamp

        Attach the 3 wire harness clamps and connector clamp.

  12. INSTALL FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)


    1. for Type A:


      1. A00YRR2

        Install the front seat inner belt assembly RH with the nut.

        Torque:
        42 N*m  { 428 kgf*cm, 31 ft.*lbf }

      2. Attach the clamp.

      3. A00YX9GC01
        *1 Wire Harness Clamp
        *2 Connector Clamp

        Attach the 3 wire harness clamps and connector clamp.

    2. for Type B:


      1. A00YTW6

        Install the front seat inner belt assembly RH with the nut.

        Torque:
        42 N*m  { 428 kgf*cm, 31 ft.*lbf }

      2. Attach the clamp.

      3. A00YT4D

        Connect the connector.

  13. INSTALL FRONT SEAT AIRBAG SUB-ASSEMBLY RH (for Front Passenger Side, w/ Occupant Classification System)

    Click here

  14. INSTALL SEAT POSITION AIRBAG SENSOR (w/ Occupant Classification System)

    Click here

  15. INSTALL FRONT SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

  16. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER


    1. Set the separate type front seat cushion cover in place.

    2. Using hog ring pliers, install the separate type front seat cushion cover to the separate type front seat cushion pad with 21 new hog rings as shown in the illustration.

      Note


      • Be careful not to damage the separate type front seat cushion cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seat cushion cover.

      Tech Tips

      Install the hog rings at the cutouts if they are there.

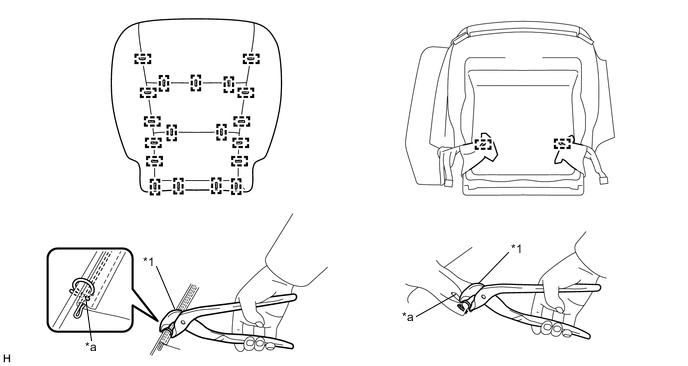

      A00YXNPC02
      *1 Hog Ring Pliers - -
      *a Cutout - -

  17. INSTALL SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD


    1. for Driver Side:


      1. Attach the 12 hooks to install the separate type front seat cushion cover with pad.

        A00YUP5

    2. for Front Passenger Side:


      1. Attach the 11 hooks to install the separate type front seat cushion cover with pad.

        A00YWH0
      2. A00YXWF

        w/ Occupant Ditection Sensor:

        Attach the clamp and connect the connector.

    3. w/ Seat Heater System:


      1. A00YUWUC01
        *1 Wire Harness Clamp
        *2 Connector Clamp

        Attach the connector clamp and 4 wire harness clamps to connect the wire harness of the front seat cushion heater.

  18. INSTALL FRONT SEAT AIRBAG ASSEMBLY LH (w/ Front Seat Side Airbag)

    Click here

  19. INSTALL SEATBACK FELT


    1. Install the seatback felt to the separate type front seatback spring assembly LH.

  20. INSTALL SEPARATE TYPE FRONT SEATBACK PAD


    1. Install the separate type front seatback pad to the separate type front seatback spring assembly LH.

  21. INSTALL FRONT SEATBACK HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

  22. INSTALL SEPARATE TYPE FRONT SEATBACK COVER


    1. Set the separate type front seatback cover in place.

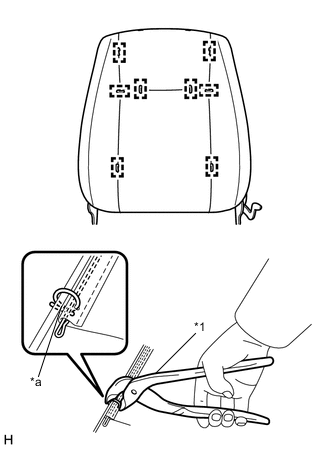

    2. A00YWCGC01
      *1 Hog Ring Pliers
      *a Cutout

      Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback pad with 8 new hog rings as shown in the illustration.

      Note


      • Be careful not to damage the separate type front seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

      Tech Tips

      Install the hog rings at the cutouts if they are there.

    3. w/ Front Seat Side Airbag:


      1. Pass the separate type front seatback cover bracket through the separate type front seatback pad.

      2. for Dual Type:

        Install the 2 nuts.

        Torque:
        5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

      3. for Single Type:

        Install the nut.

        Torque:
        5.5 N*m  { 56 kgf*cm, 49 in.*lbf }

    4. for Sports Seat Type:

      Close the 2 fasteners.

    5. A00YSZD

      Pull the straps to tighten them and confirm that there is a protrusion visible on each side.

    6. A00YUERC01
      *1 Hog Ring Pliers
      *a Cutout

      Using hog ring pliers, connect the straps of the separate type front seatback cover to the separate type front seatback frame sub-assembly LH with 3 new hog rings as shown in the illustration.

      Note


      • Be careful not to damage the separate type front seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the straps of the separate type front seatback cover.

      Tech Tips

      Install the hog rings at the cutouts if they are there.

    7. A00YRC8C01
      *1 Hog Ring Pliers
      *a Cutout

      Using hog ring pliers, install the separate type front seatback cover to the separate type front seatback frame sub-assembly LH with 5 new hog rings as shown in the illustration.

      Note


      • Be careful not to damage the separate type front seatback cover.

      • Be sure to securely install the hog rings as shown in the illustration while preventing wrinkles from forming on the separate type front seatback cover.

      Tech Tips

      Install the hog rings at the cutouts if they are there.

  23. INSTALL FRONT SEAT HEADREST SUPPORT


    1. Attach the 4 claws to install the 2 front seat headrest supports.

  24. INSTALL SEPARATE TYPE FRONT SEATBACK ASSEMBLY


    1. A00YT8B

      Install the separate type front seatback assembly with the 4 bolts.

      Torque:
      42 N*m  { 428 kgf*cm, 31 ft.*lbf }
    2. A00YW9F

      Attach the 2 hooks.

    3. A00YRUR

      for Front Passenger Side, for Type B:

      Cisconnect the wire harness of the front seat inner belt assembly with the screw.

    4. w/ Front Seat Side Airbag:


      1. A00YUH4C01
        *1 Fastener

        Attach the fastener to connect the wire harness of the front seat side airbag.

      2. A00YRYTC01
        *1 Wire Harness Clamp
        *2 Connector Clamp

        Attach the 4 wire harness clamps and connector clamp to connect the wire harness of the front seat side airbag.

    5. A00YRJV

      w/ Seat Heater System:


      1. Attach the wire harness clamp and connector clamp.

      2. Connect the connector.

    6. Connect the rubber band.

  25. INSTALL FRONT INNER SEAT CUSHION SHIELD LH

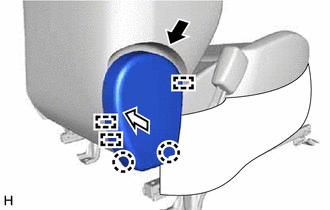

    1. A00YQUKC01
      A00YXOY First
      A00YSPP Second

      Attach the 3 guides and 2 claws to install the front inner seat cushion shield LH as indicated by the arrows in the order shown in the illustration.

  26. INSTALL FRONT INNER SEAT CUSHION SHIELD RH (for Front Passenger Side)

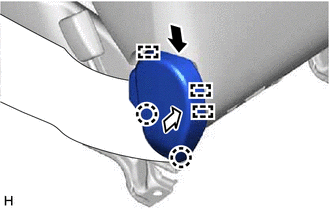

    1. A00YTACC01
      A00YXOY First
      A00YSPP Second

      Attach the 3 guides and 2 claws to install the front inner seat cushion shield RH as indicated by the arrows in the order shown in the illustration.

  27. INSTALL FRONT SEAT CUSHION SHIELD LH

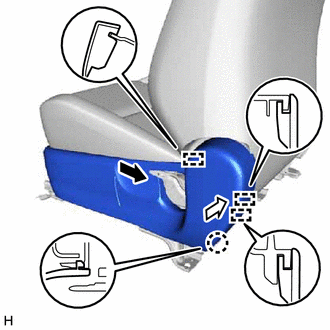

    1. A00YSA4C01
      A00YXOY First
      A00YSPP Second

      Attach the 3 guides and claw to install the front seat cushion shield LH as indicated by the arrows in the order shown in the illustration.

    2. A00YQX2

      Attach the claw and 2 clips.

  28. INSTALL VERTICAL ADJUSTING HANDLE LH


    1. Install the front seat vertical adjusting handle LH with the screw.

  29. INSTALL RECLINING ADJUSTER RELEASE HANDLE LH


    1. Attach the claw to install the reclining adjuster release handle LH.
