FRONT SEAT ASSEMBLY(for Manual Seat) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

Tech Tips


  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE


  1. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH


    1. A01GB28C01
      *1 Protective Tape

      Using a screwdriver, detach the claw to remove the reclining adjuster release handle LH.

      Tech Tips

      Tape the screwdriver tip before use.

  2. REMOVE VERTICAL ADJUSTING HANDLE LH


    1. A01GAIE

      Remove the screw and vertical adjusting handle LH.

  3. REMOVE FRONT SEAT CUSHION SHIELD LH


    1. A01GD2F

      Detach the 2 clips and claw.

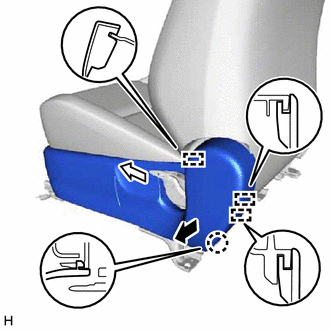

    2. A01GAD5C01
      A01GAQ1 First
      A01GBFL Second

      Detach the claw and 3 guides to remove the front seat cushion shield LH as indicated by the arrows in the order shown in the illustration.

  4. REMOVE FRONT INNER SEAT CUSHION SHIELD LH

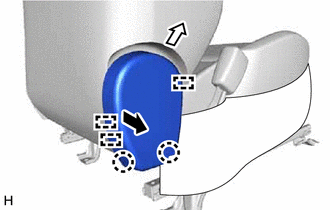

    1. A01GCI7C01
      A01GAQ1 First
      A01GBFL Second

      Detach the 2 claws and 3 guides to remove the front inner seat cushion shield LH as indicated by the arrows in the order shown in the illustration.

  5. REMOVE FRONT INNER SEAT CUSHION SHIELD RH (for Front Passenger Side)


    1. A01GAI8C01
      A01GAQ1 First
      A01GBFL Second

      Detach the 2 claws and 3 guides to remove the front inner seat cushion shield RH as indicated by the arrows in the order shown in the illustration.

  6. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY


    1. A01GAHQ

      Disconnect the rubber band.

    2. A01G9WOC01
      *1 Wire Harness Clamp
      *2 Connector Clamp

      w/ Front Seat Side Airbag:


      1. Detach the 4 wire clamps and connector clamp to disconnect the wire harness of the front seat side airbag.

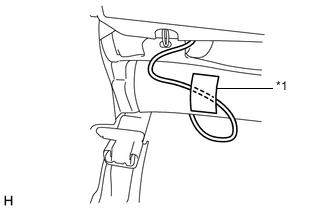

      2. A01GA94C01
        *1 Fastener

        Detach the fastener to disconnect the wire harness of the front seat side airbag.

    3. A01GCNZ

      w/ Seat Heater System:


      1. Detach the wire harness clamp and connector clamp.

      2. Disconnect the connector.

    4. A01GC0U

      Detach the 2 hooks.

    5. A01GBUA

      Remove the 4 bolts and separate type front seatback assembly.

  7. REMOVE FRONT SEAT HEADREST SUPPORT


    1. A01GC35

      Detach the 4 claws to remove the 2 front seat headrest supports.

  8. REMOVE SEPARATE TYPE FRONT SEATBACK COVER


    1. A01GCJK

      Remove the 5 hog rings.

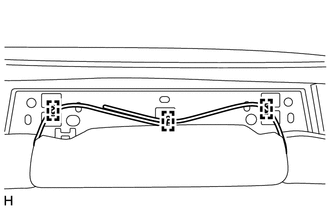

    2. A01GCKI

      Remove the 3 hog rings.

    3. A01GCW4

      for Sports Seat Type:

      Open the 2 fasteners.

    4. w/ Front Seat Side Airbag:

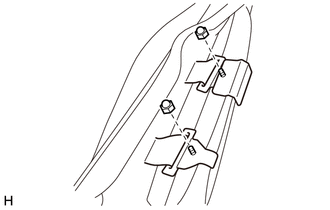

      1. A01GA8S

        for Dual Type:

        Remove the 2 nuts.

      2. A01GBHZ

        for Single Type:

        Remove the nut.

      3. Pull the separate type front seatback cover bracket from the separate type front seatback pad.

    5. A01GANF

      Remove the 8 hog rings and separate type front seatback cover from the separate type front seatback pad.

  9. REMOVE FRONT SEATBACK HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

  10. REMOVE SEPARATE TYPE FRONT SEATBACK PAD


    1. Remove the separate type front seatback pad from the separate type front seatback spring assembly LH.

  11. REMOVE SEATBACK FELT


    1. Remove the seatback felt from the separate type front seatback spring assembly LH.

  12. REMOVE FRONT SEAT AIRBAG ASSEMBLY LH (w/ Front Seat Side Airbag)

    Click here

  13. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD


    1. w/ Seat Heater System:


      1. A01GCFCC01
        *1 Wire Harness Clamp
        *2 Connector Clamp

        Detach the 4 wire harness clamps and connector clamp to disconnect the wire harness of the front seat cushion heater.

    2. for Driver Side:


      1. Detach the 12 hooks to remove the separate type front seat cushion cover with pad.

        A01GD3U

    3. for Front Passenger Side:


      1. Detach the 11 hooks to remove the separate type front seat cushion cover with pad.

        A01GARW
      2. A01GAJE

        w/ Occupant Detection Sensor:

        Detach the clamp and disconnect the connector.

  14. REMOVE SEPARATE TYPE FRONT SEAT CUSHION COVER


    1. Remove the 21 hog rings and separate type front seat cushion cover from the separate type front seat cushion pad.

      A01GD83

  15. REMOVE SEAT POSITION AIRBAG SENSOR (w/ Occupant Classification System)

    Click here

  16. REMOVE FRONT SEAT AIRBAG SUB-ASSEMBLY RH (for Front Passenger Side, w/ Occupant Classification System)

    Click here

  17. REMOVE FRONT SEAT CUSHION HEATER ASSEMBLY LH (w/ Seat Heater System)

    Click here

  18. REMOVE FRONT SEAT INNER BELT ASSEMBLY LH (for Driver Side)


    1. A01GA4NC01
      *1 Wire Harness Clamp
      *2 Connector Clamp

      for Type A:


      1. Detach the 2 wire harness clamps and connector clamp.

    2. for Type B:

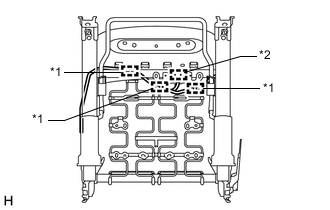

      1. A01GBI4C01
        *1 Wire Harness Clamp
        *2 Connector Clamp

        Detach the 3 wire harness clamps and connector clamp.

      2. A01GAM6

        Detach the wire harness clamp.

    3. A01GAEP

      Detach the 2 clamps.

    4. Remove the nut and front seat inner belt assembly LH.

  19. REMOVE FRONT SEAT INNER BELT ASSEMBLY RH (for Front Passenger Side)


    1. for Type A:


      1. A01GAQ5C01
        *1 Wire Harness Clamp
        *2 Connector Clamp

        Detach the 3 wire harness clamps and connector clamp.

      2. A01GDA2

        Detach the clamp.

      3. Remove the nut and front seat inner belt assembly RH.

    2. for Type B:

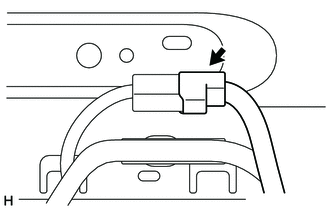

      1. A01GDBD

        Disconnect the connector.

      2. A01GBG1

        Detach the clamp.

      3. Remove the nut and front seat inner belt assembly RH.

  20. REMOVE FRONT SEAT WIRE RH (for Front Passenger Side, w/ Occupant Classification System)


    1. A01GD63

      Detach the claw to disconnect the connector.

    2. Disconnect the 4 connectors.

    3. Detach the 4 clamps to remove the front seat wire RH.

  21. REMOVE OCCUPANT DETECTION ECU (for Front Passenger Side, w/ Occupant Classification System)

    Click here

  22. REMOVE FRONT LOWER SEAT CUSHION SHIELD LH


    1. A01GD7V

      Remove the screw.

    2. Detach the hook in the direction indicated by the arrow in the illustration.

    3. A01GB4G

      Detach the clip to remove the front lower seat cushion shield LH.

  23. REMOVE FRONT LOWER SEAT CUSHION SHIELD RH

    Tech Tips

    Use the same procedure described for the front lower seat cushion shield LH.

  24. REMOVE FRONT OUTER SEAT CUSHION EDGE PROTECTOR LH


    1. A01GAEG

      Remove the front outer seat cushion edge protector LH in the direction indicated by the arrow in the illustration.

  25. REMOVE FRONT INNER SEAT CUSHION EDGE PROTECTOR LH

    Tech Tips

    Use the same procedure described for the front outer seat cushion edge protector LH.

  26. REMOVE FRONT OUTER SEAT CUSHION EDGE PROTECTOR RH (for Front Passenger Side)


    1. A01GA9N

      Remove the front seat outer cushion edge protector RH in the direction indicated by the arrow in the illustration.

  27. REMOVE FRONT INNER SEAT CUSHION EDGE PROTECTOR RH (for Front Passenger Side)

    Tech Tips

    Use the same procedure described for the front seat outer cushion edge protector RH.

  28. REMOVE SEAT TRACK ADJUSTING HANDLE

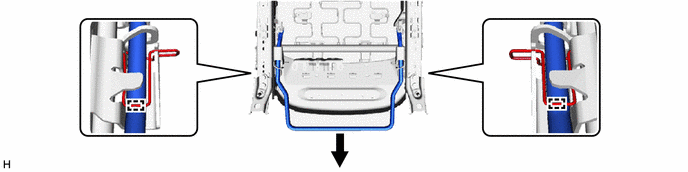

    1. Detach the 2 hooks to remove the seat track adjusting handle in the direction indicated by the arrow in the illustration.

      A01GCCR

  29. REMOVE SEAT ADJUSTER COVER CAP


    1. Remove the 2 seat adjuster cover caps from the separate type front seat cushion spring assembly LH.
