FRONT SEAT ASSEMBLY(for Manual Seat) COMPONENTS
ILLUSTRATION

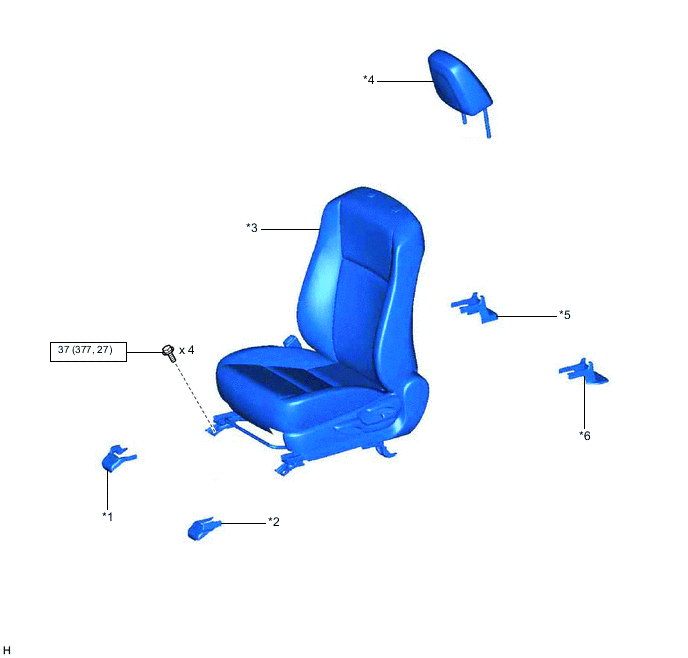

| *1 | FRONT INNER SEAT TRACK BRACKET COVER LH | *2 | FRONT OUTER SEAT TRACK BRACKET COVER LH |
| *3 | FRONT SEAT ASSEMBLY LH | *4 | FRONT SEAT HEADREST ASSEMBLY |
| *5 | REAR INNER SEAT TRACK BRACKET COVER LH | *6 | REAR OUTER SEAT TRACK BRACKET COVER LH |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | for Front Passenger Side | - | - |

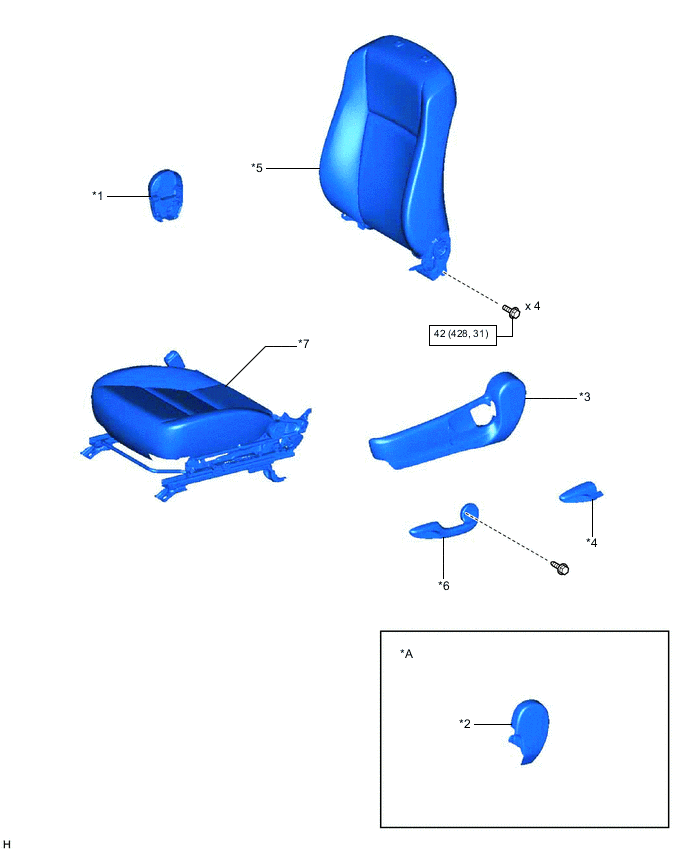

| *1 | FRONT INNER SEAT CUSHION SHIELD LH | *2 | FRONT INNER SEAT CUSHION SHIELD RH |
| *3 | FRONT SEAT CUSHION SHIELD LH | *4 | RECLINING ADJUSTER RELEASE HANDLE LH |
| *5 | SEPARATE TYPE FRONT SEATBACK ASSEMBLY | *6 | VERTICAL ADJUSTING HANDLE LH |
| *7 | SEPARATE TYPE FRONT SEAT CUSHION ASSEMBLY | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *A | except Sports Seat Type | *B | for Sports Seat Type |
| *C | w/ Front Seat Side Airbag | *D | for Dual Type |
| *E | for Single Type | *F | w/ Seat Heater System |

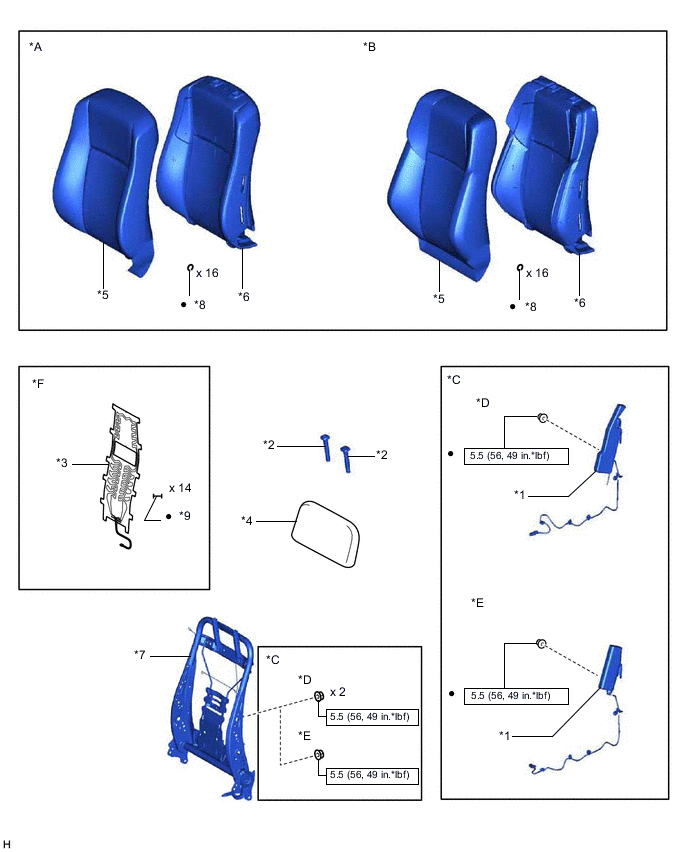

| *1 | FRONT SEAT AIRBAG ASSEMBLY LH | *2 | FRONT SEAT HEADREST SUPPORT |
| *3 | FRONT SEATBACK HEATER ASSEMBLY LH | *4 | SEATBACK FELT |
| *5 | SEPARATE TYPE FRONT SEATBACK COVER | *6 | SEPARATE TYPE FRONT SEATBACK PAD |
| *7 | SEPARATE TYPE FRONT SEATBACK SPRING ASSEMBLY LH | *8 | HOG RING |
| *9 | TACK PIN | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION
| *A | except Sports Seat Type | *B | for Sports Seat Type |
| *C | w/ Seat Heater System | *D | w/ Occupant Classification System |
| *E | for Front Passenger Side | *F | for Type A |
| *G | for Type B | - | - |

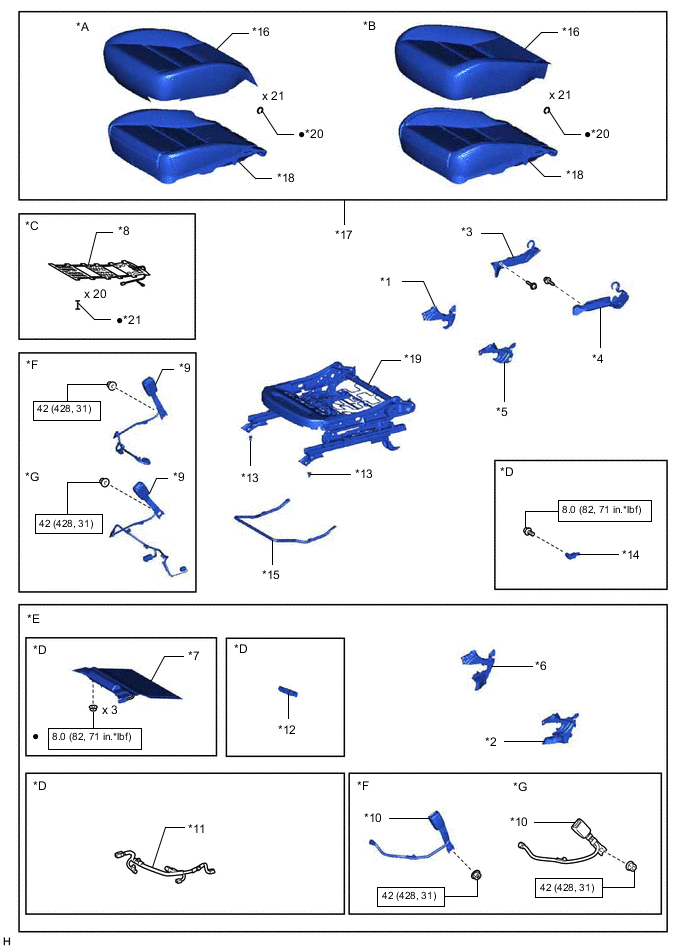

| *1 | FRONT INNER SEAT CUSHION EDGE PROTECTOR LH | *2 | FRONT INNER SEAT CUSHION EDGE PROTECTOR RH |
| *3 | FRONT LOWER SEAT CUSHION SHIELD LH | *4 | FRONT LOWER SEAT CUSHION SHIELD RH |
| *5 | FRONT OUTER SEAT CUSHION EDGE PROTECTOR LH | *6 | FRONT OUTER SEAT CUSHION EDGE PROTECTOR RH |
| *7 | FRONT SEAT AIRBAG SUB-ASSEMBLY RH | *8 | FRONT SEAT CUSHION HEATER ASSEMBLY LH |
| *9 | FRONT SEAT INNER BELT ASSEMBLY LH | *10 | FRONT SEAT INNER BELT ASSEMBLY RH |
| *11 | FRONT SEAT WIRE RH | *12 | OCCUPANT DETECTION ECU |
| *13 | SEAT ADJUSTER COVER CAP | *14 | SEAT POSITION AIRBAG SENSOR |
| *15 | SEAT TRACK ADJUSTING HANDLE | *16 | SEPARATE TYPE FRONT SEAT CUSHION COVER |
| *17 | SEPARATE TYPE FRONT SEAT CUSHION COVER WITH PAD | *18 | SEPARATE TYPE FRONT SEAT CUSHION PAD |
| *19 | SEPARATE TYPE FRONT SEAT CUSHION SPRING ASSEMBLY LH | *20 | HOG RING |
| *21 | TACK PIN | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
