SEAT POSITION SENSOR REMOVAL

PROCEDURE


  1. PRECAUTION

    CAUTION:

    Be sure to read Precaution thoroughly before servicing.

    Click here

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    CAUTION:

    Wait at least 90 seconds after disconnecting the cable from the negative (-) battery terminal to disable the SRS system.

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE FRONT SEAT ASSEMBLY LH


    1. for Manual Seat:

      Click here

    2. for Power Seat:

      Click here

  4. REMOVE RECLINING ADJUSTER RELEASE HANDLE LH (for Manual Seat)

    Click here

  5. REMOVE VERTICAL ADJUSTING HANDLE LH (for Manual Seat)

    Click here

  6. REMOVE FRONT SEAT CUSHION SHIELD LH (for Manual Seat)

    Click here

  7. REMOVE SEAT POSITION AIRBAG SENSOR

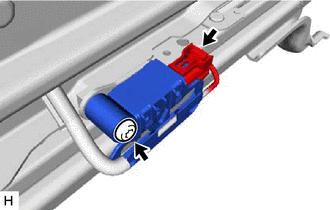

    1. A01VAID

      for Manual Seat:


      1. Disconnect the connector.

      2. Separate the wire harness from the seat slide position sensor protector.

      3. Using a T30 "TORX" socket wrench, remove the "TORX" screw and seat position airbag sensor with the seat slide position sensor protector.

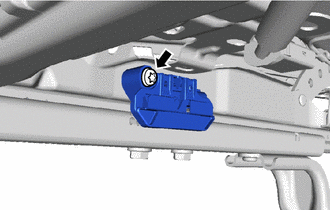

    2. A01V7VO

      for Power Seat:


      1. Disconnect the connector.

      2. Separate the wire harness from the seat slide position sensor protector.

      3. Using a T30 "TORX" socket wrench, remove the "TORX" screw and seat position airbag sensor with the seat slide position sensor protector.

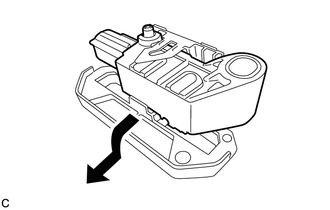

    3. A01V9F1

      Remove the seat position airbag sensor from the seat slide position sensor protector as shown in the illustration.
