OCCUPANT CLASSIFICATION ECU INSTALLATION

PROCEDURE


  1. INSTALL OCCUPANT DETECTION ECU

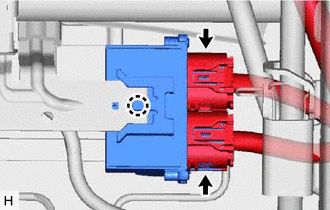

    1. A01V7XZ

      Attach the claw to install the occupant classification ECU.

      Note

      If the occupant classification ECU has been dropped, or there are any cracks, dents or other defects in the case or connector, replace the occupant classification ECU with a new one.

    2. Connect the 2 connectors.

      Note

      When installing the occupant classification ECU, be careful that the SRS wiring does not interfere with or is pinched between other parts.

  2. INSTALL FRONT SEAT ASSEMBLY RH


    1. for Manual Seat:

      Click here

    2. for Power Seat:

      Click here

  3. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  4. ZERO POINT CALIBRATION AND SENSITIVITY

    Click here

  5. PERFORM DIAGNOSTIC SYSTEM CHECK

    Click here

  6. CHECK SRS WARNING LIGHT

    Click here
