GENERATOR(for 100 A Type) COMPONENTS

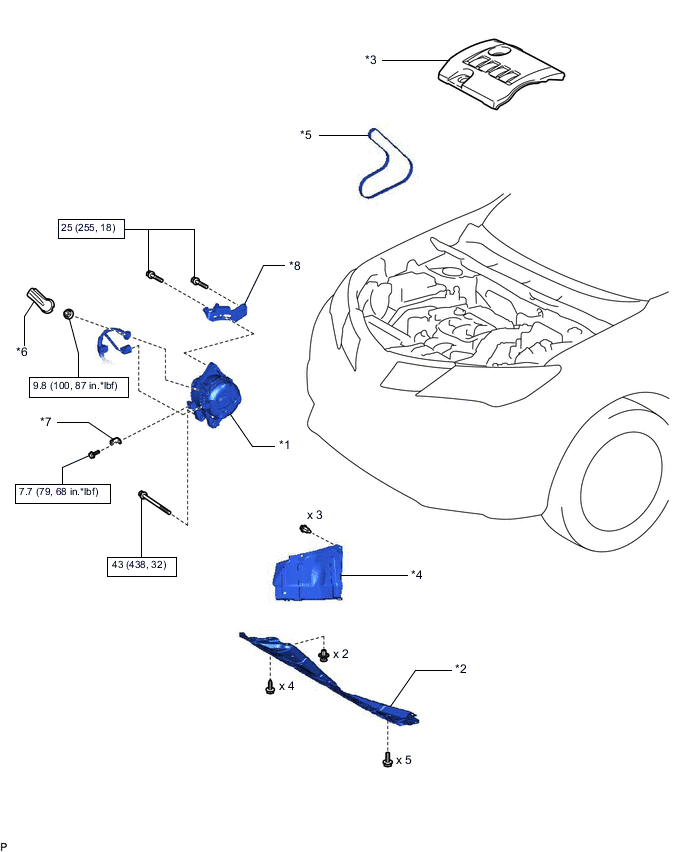

ILLUSTRATION
| *1 | GENERATOR ASSEMBLY | *2 | NO. 1 ENGINE UNDER COVER |
| *3 | NO. 2 CYLINDER HEAD COVER | *4 | REAR ENGINE UNDER COVER RH |
| *5 | V-RIBBED BELT | *6 | TERMINAL CAP |
| *7 | WIRE HARNESS CLAMP BRACKET | *8 | ADJUSTING BAR |
 |
Specified torque: N*m (kgf*cm, ft.*lbf) | - | - |

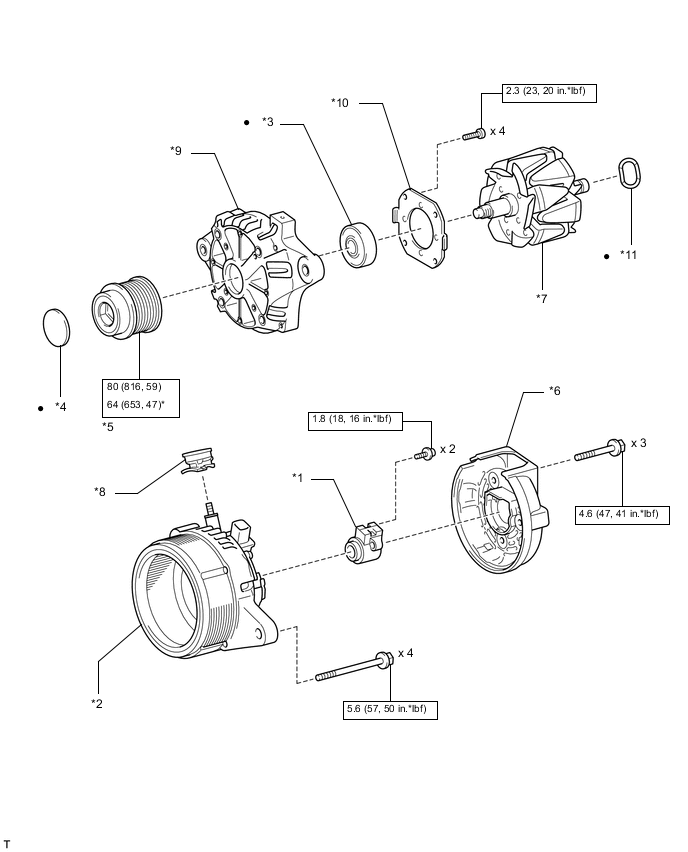

ILLUSTRATION
| *1 | GENERATOR BRUSH HOLDER ASSEMBLY | *2 | GENERATOR COIL ASSEMBLY |
| *3 | GENERATOR DRIVE END FRAME BEARING | *4 | GENERATOR PULLEY CAP |
| *5 | GENERATOR PULLEY WITH CLUTCH | *6 | GENERATOR REAR END COVER |
| *7 | GENERATOR ROTOR ASSEMBLY | *8 | TERMINAL INSULATOR |
| *9 | GENERATOR DRIVE END FRAME ASSEMBLY | *10 | RETAINER PLATE |
| *11 | WASHER | - | - |
| |
Specified torque: N*m (kgf*cm, ft.*lbf) | * | For use with SST |
| ● | Non-reusable part | - | - |
