CHARGING SYSTEM PARTS LOCATION

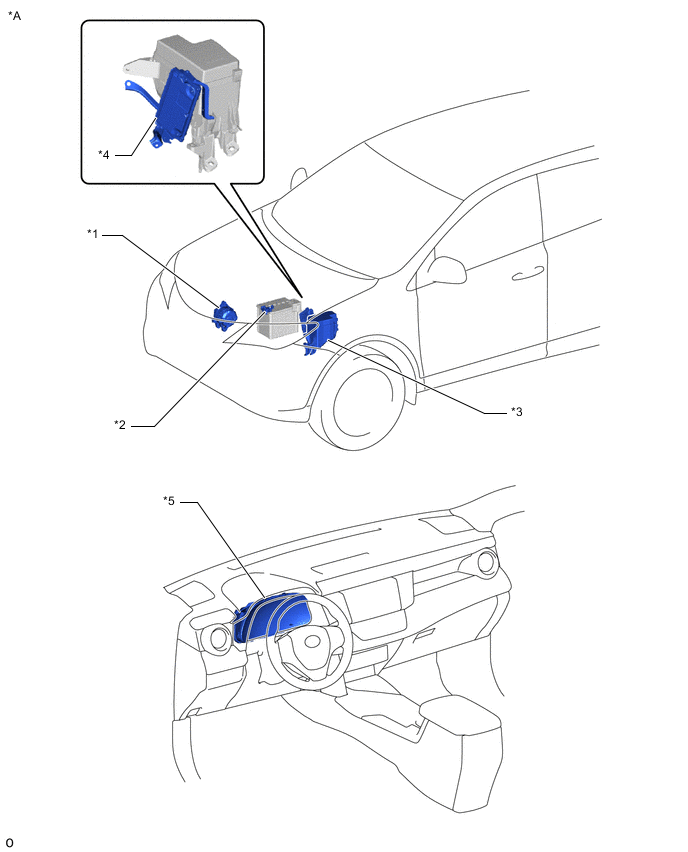

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | GENERATOR ASSEMBLY | *2 | BATTERY STATE SENSOR ASSEMBLY |
| *3 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ALT FUSE - ALT-S/ICS FUSE - EFI-MAIN NO. 2 FUSE |
*4 | ECM |
| *5 | COMBINATION METER ASSEMBLY | - | - |

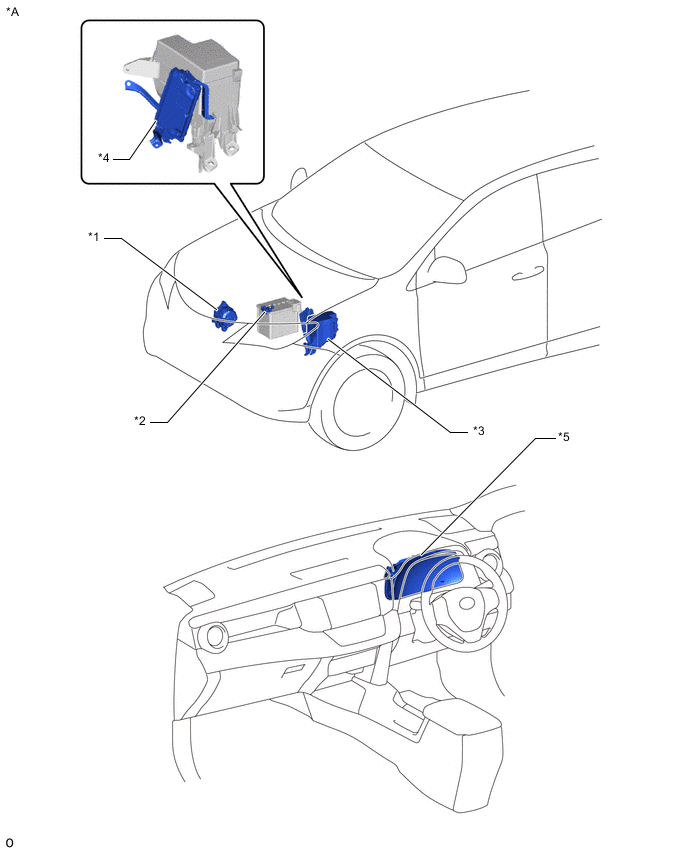

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | GENERATOR ASSEMBLY | *2 | BATTERY STATE SENSOR ASSEMBLY |
| *3 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY - ALT FUSE - ALT-S/ICS FUSE - EFI-MAIN NO. 2 FUSE |
*4 | ECM |
| *5 | COMBINATION METER ASSEMBLY | - | - |
