GENERATOR(for 100 A Type) COMPONENTS

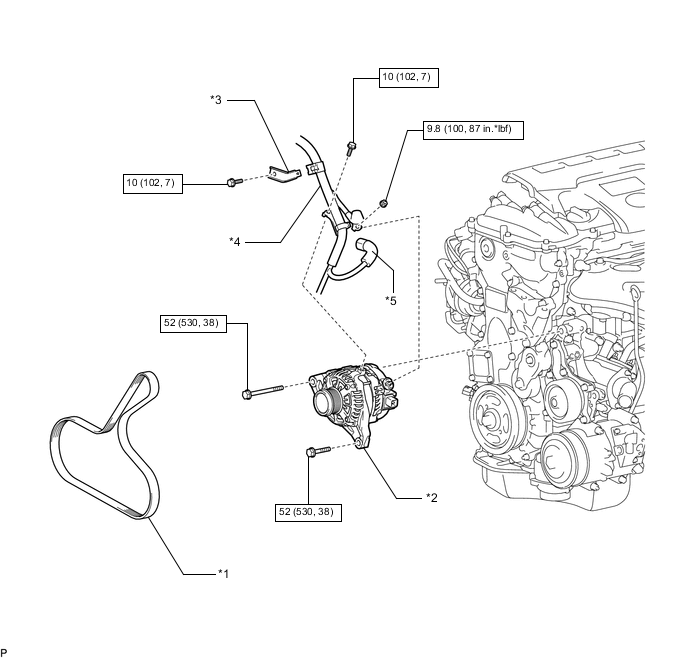

ILLUSTRATION
| *1 | FAN AND GENERATOR V BELT | *2 | GENERATOR ASSEMBLY |
| *3 | WIRE HARNESS CLAMP BRACKET | *4 | GENERATOR WIRE |
| *5 | GENERATOR CONNECTOR | - | - |
 |
Specified torque: N*m (kgf*cm, ft.*lbf) | - | - |

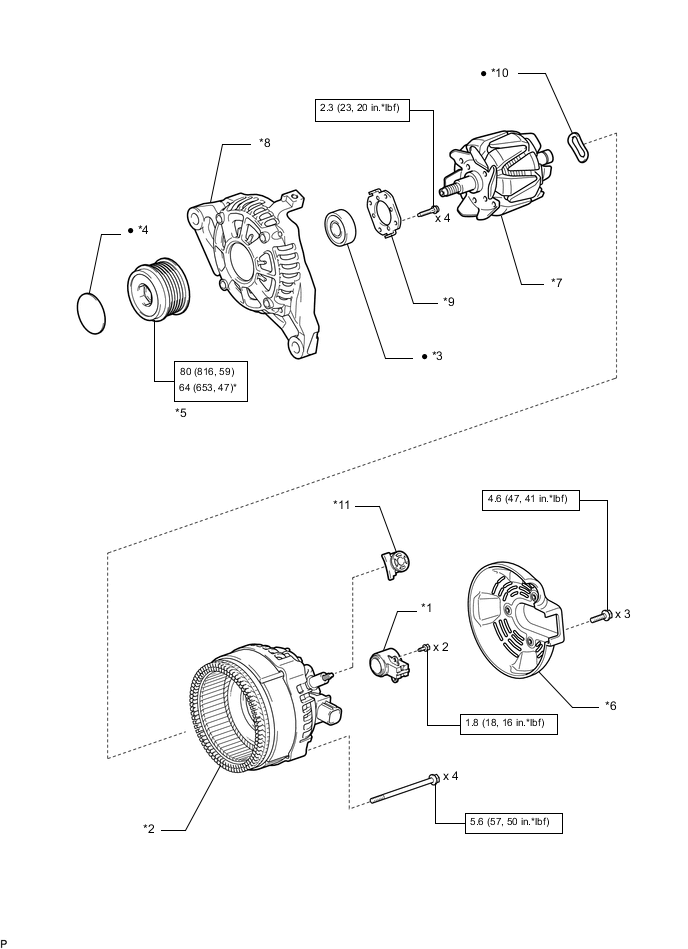

ILLUSTRATION
| *1 | GENERATOR BRUSH HOLDER ASSEMBLY | *2 | GENERATOR COIL ASSEMBLY |
| *3 | GENERATOR DRIVE END FRAME BEARING | *4 | GENERATOR PULLEY CAP |
| *5 | GENERATOR PULLEY WITH CLUTCH | *6 | GENERATOR REAR END COVER |
| *7 | GENERATOR ROTOR ASSEMBLY | *8 | GENERATOR DRIVE END FRAME |
| *9 | BEARING RETAINER | *10 | WASHER |
| *11 | TERMINAL INSULATOR | - | - |
| |
Specified torque: N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
| * | For use with SST | - | - |
