RADIO RECEIVER REMOVAL

PROCEDURE

1. PRECAUTION

   Note

   After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

   Click here

2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

   Note

   When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

   Click here

3. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

   Click here

4. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

   Click here

5. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

   Click here

6. REMOVE TELLTALE LIGHT ASSEMBLY

   Click here

7. REMOVE RADIO RECEIVER ASSEMBLY (for Radio Receiver Type)




   1.

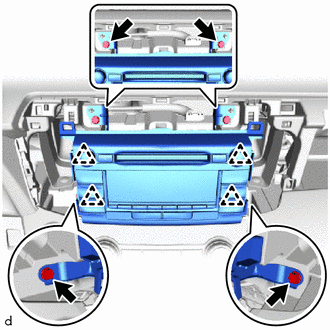

      Remove the 4 bolts.

   2. Detach the 4 clips and remove the radio receiver assembly with bracket.

   3. Disconnect each connector.

8. REMOVE RADIO & DISPLAY RECEIVER ASSEMBLY (for Radio and Display Type)




   1. except 7 inch Type




      1.

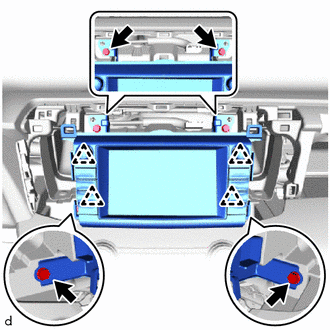

         Remove the 4 bolts.

      2. Detach the 4 clips and remove the radio and display receiver assembly with bracket.

      3. Disconnect each connector.

   2. for 7 inch Type




      1.

         Remove the 4 bolts.

      2. Detach the 4 clips and remove the radio and display receiver assembly with bracket.

      3. Disconnect each connector.

9. REMOVE NO. 1 RADIO BRACKET

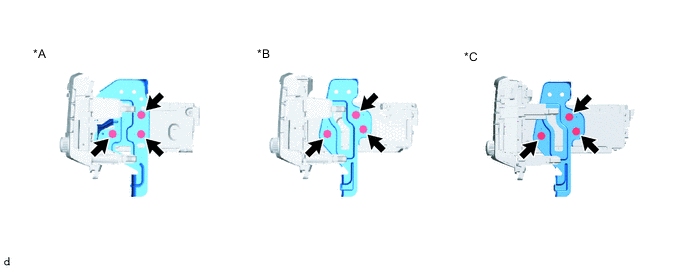

   1. Remove the 3 screws and No. 1 radio bracket.



      *A	for Radio Receiver Type	*B	for Radio and Display Type (except 7 inch Type)
      *C	for Radio and Display Type (for 7 inch Type)	-	-

10. REMOVE NO. 2 RADIO BRACKET

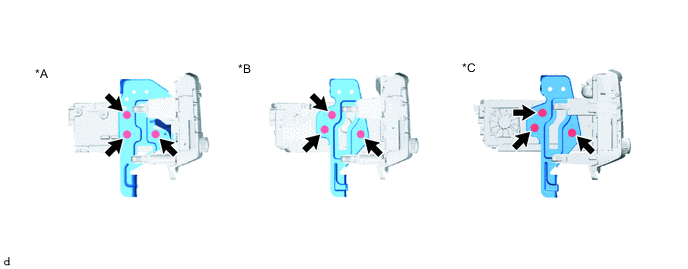

    1. Remove the 3 screws and No. 2 radio bracket.



       *A	for Radio Receiver Type	*B	for Radio and Display Type (except 7 inch Type)
       *C	for Radio and Display Type (for 7 inch Type)	-	-
