REAR SPEED SENSOR(for 2WD) REMOVAL

CAUTION / NOTICE / HINT

Tech Tips


  • Use the same procedure for the RH and LH sides.

  • The procedures listed below are for the LH side.

PROCEDURE


  1. REMOVE REAR WHEEL

  2. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH


    1. Remove the deck trim side panel LH Click here.

      Tech Tips

      Refer to the procedures from the removal of the rear door scuff plate LH up until the removal of the deck trim side panel LH.

  3. REMOVE SKID CONTROL SENSOR WIRE


    1. A01QO64

      Disconnect the skid control sensor wire connector.

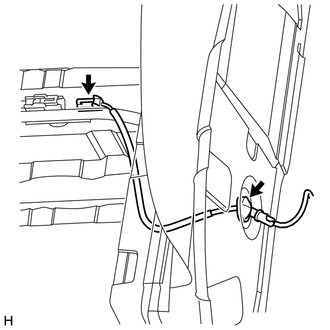

    2. A01QQZY

      Disconnect the grommet of the skid control sensor wire from the hole of the wheel house.

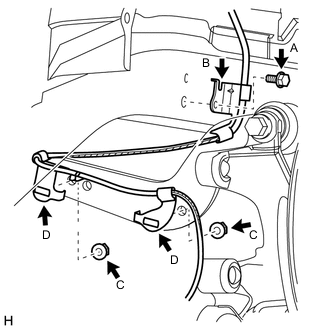

    3. A01QPGCE01

      Remove the bolt labeled A and sensor clamp labeled B from the side member.

    4. Remove the 2 nuts labeled C and 2 sensor clamps labeled D from the upper arm.

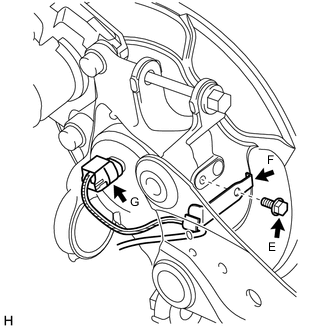

    5. A01QU2LE01

      Remove the bolt labeled E and sensor clamp labeled F from the carrier.

    6. Disconnect the skid control sensor wire connector labeled G from the skid control sensor.

  4. REMOVE REAR DISC BRAKE CYLINDER MOUNTING LH

    Click here

  5. REMOVE REAR DISC

    Click here

  6. REMOVE REAR AXLE HUB AND BEARING ASSEMBLY LH (SKID CONTROL SENSOR)

    Click here
