BRAKE ACTUATOR(w/o VSC) REASSEMBLY

PROCEDURE


  1. INSTALL BRAKE ACTUATOR BOLT CUSHION


    1. Install the 3 brake actuator bolt cushions to the brake actuator bracket.

  2. INSTALL BRAKE ACTUATOR CASE COLLAR


    1. Install the 3 brake actuator case collars to the 3 brake actuator bolt cushions.

      Note

      Make sure the collars are in full contact with the cushions.

  3. INSTALL NO. 1 BRAKE ACTUATOR BRACKET

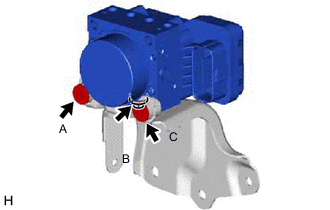

    1. A00YT97E01

      Install the brake actuator bracket to the brake actuator with the 3 bolts. Tighten the 3 bolts uniformly in alphabetical order.

      Torque:
      5.4 N*m  { 55 kgf*cm, 48 in.*lbf }

      Note


      • Do not remove the hole plugs of a new brake actuator before connecting the 6 brake lines because the brake actuator is filled with brake fluid.

      • Do not hold the actuator by the connector.

      • If the actuator is dropped, replace it.
