PATTERN SELECT SWITCH INSPECTION

PROCEDURE


  1. INSPECT COMBINATION SWITCH ASSEMBLY

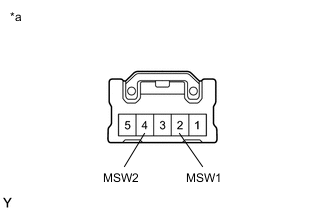

    1. A01QSYAC03
      *a

      Component without harness connected

      (Combination Switch Assembly)

      w/o Stop and Start System:

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      2 (MSW1) - 4 (MSW2) Combination switch (SPORT) on Below 1 Ω
      2 (MSW1) - 4 (MSW2) Combination switch (SPORT) off 10 kΩ or higher

      If the result is not as specified, replace the combination switch assembly.

    2. A01QRLIC01
      *a

      Component without harness connected

      (Combination Switch Assembly)

      w/ Stop and Start System:

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance
      Tester Connection Switch Condition Specified Condition
      2 (MSW1) - 5 (MSW2) Combination switch (POWER MODE) on Below 1 Ω
      2 (MSW1) - 5 (MSW2) Combination switch (POWER MODE) off 10 kΩ or higher

      If the result is not as specified, replace the combination switch assembly.
