OIL PRESSURE SENSOR INSTALLATION

PROCEDURE


  1. INSTALL OIL PRESSURE SENSOR


    1. Coat the O-ring of the pressure sensor with Toyota Genuine CVT fluid FE.

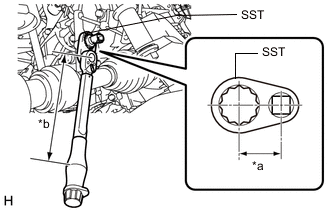

    2. A01V9GNC01
      *a Length of SST 50 mm (1.97 in.)
      *b Length of Torque Wrench 180 mm (7.09 in.)

      Using SST, install the oil pressure sensor.

      SST
      09326-22011
      Torque:
      without SST
      21 N*m  { 214 kgf*cm, 15 ft.*lbf }
      with SST
      16 N*m  { 163 kgf*cm, 12 ft.*lbf }

      Note


      • This torque value is effective when SST is parallel to the torque wrench.

      • The "with SST" torque value is effective when using SST with a fulcrum length of 50 mm (1.97 in.).

      • The "with SST" torque value is effective when using a torque wrench with a fulcrum length of 180 mm (7.09 in.).

      • If using a torque wrench with a different length, or connecting the torque wrench and SST at an angle, refer to the alternate torque values.

        Click here

    3. Connect the oil pressure sensor connector.

  2. INSTALL REAR ENGINE UNDER COVER LH

    Click here

  3. RESET MEMORY

    Click here
