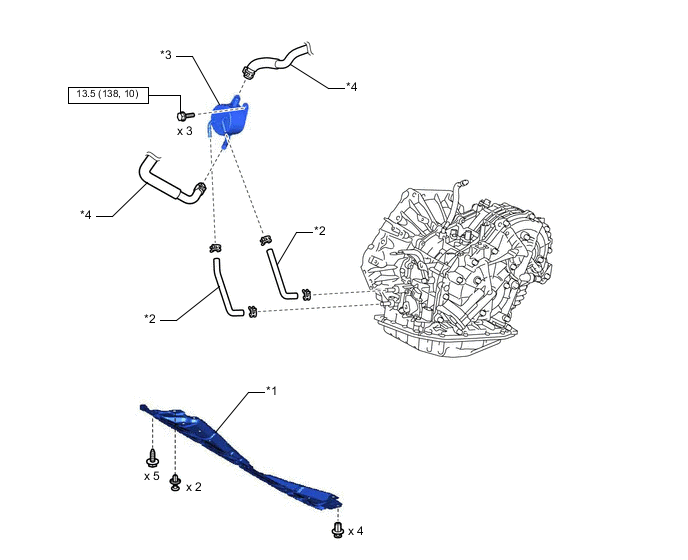

OIL COOLER COMPONENTS
ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER | *2 | NO. 1 OIL COOLER INLET HOSE AND NO. 1 OIL COOLER OUTLET HOSE |
| *3 | OIL COOLER | *4 | WATER BY-PASS HOSE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | NO. 1 ENGINE UNDER COVER | *2 | NO. 1 OIL COOLER INLET HOSE AND NO. 1 OIL COOLER OUTLET HOSE |
| *3 | OIL COOLER | *4 | WATER BY-PASS HOSE |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
