VEHICLE STABILITY CONTROL SYSTEM PARTS LOCATION

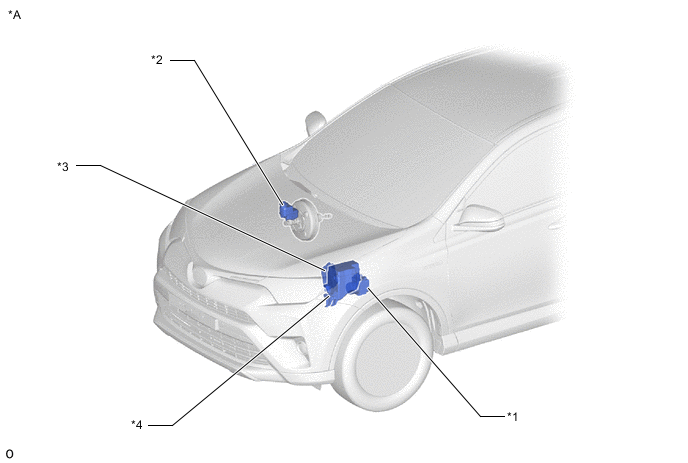

ILLUSTRATION
| *A | for LHD | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | BRAKE FLUID LEVEL WARNING SWITCH (BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY) |
| *3 | ECM | *4 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
|

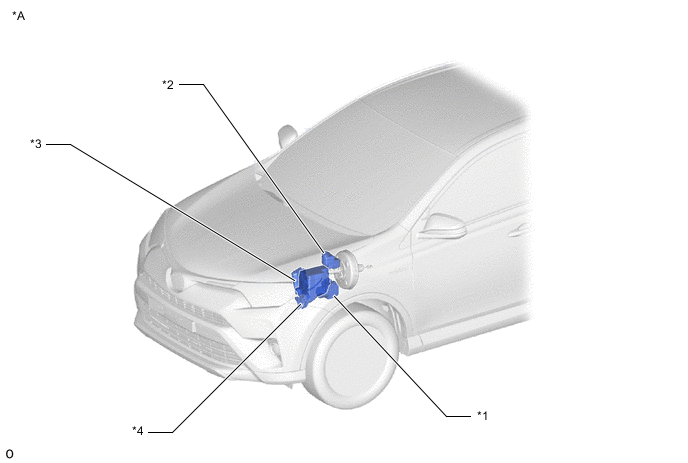

ILLUSTRATION
| *A | for RHD | - | - |
| *1 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *2 | BRAKE FLUID LEVEL WARNING SWITCH (BRAKE MASTER CYLINDER RESERVOIR SUB-ASSEMBLY) |
| *3 | ECM | *4 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY
|

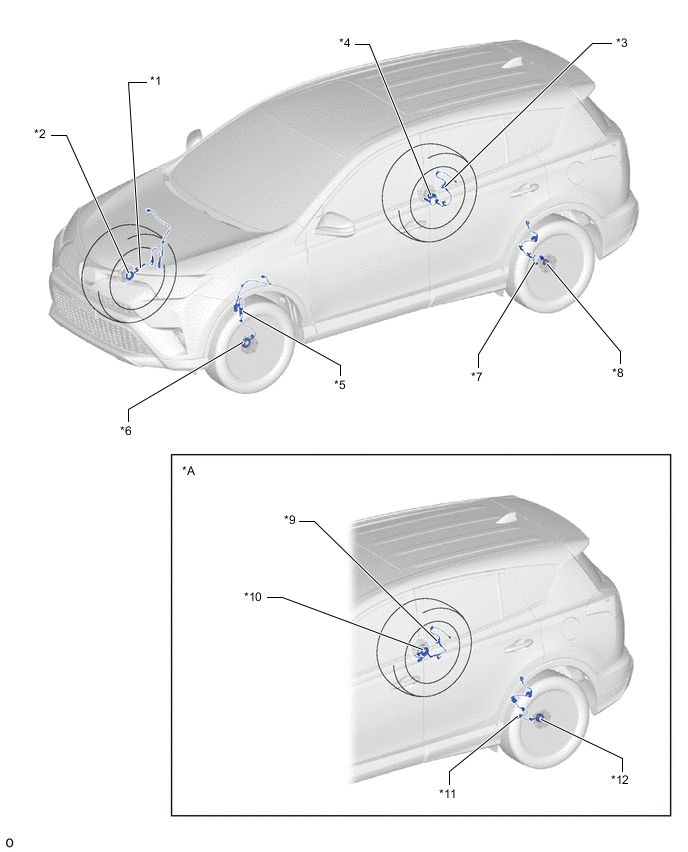

ILLUSTRATION
| *A | for 4WD/AWD | - | - |
| *1 | FRONT SPEED SENSOR RH | *2 | FRONT SPEED SENSOR ROTOR RH (FRONT AXLE HUB SUB-ASSEMBLY RH) |
| *3 | SKID CONTROL SENSOR WIRE RH | *4 | REAR SPEED SENSOR RH/REAR SPEED SENSOR ROTOR RH (REAR AXLE HUB AND BEARING ASSEMBLY RH) |
| *5 | FRONT SPEED SENSOR LH | *6 | FRONT SPEED SENSOR ROTOR LH (FRONT AXLE HUB SUB-ASSEMBLY LH) |
| *7 | SKID CONTROL SENSOR WIRE LH | *8 | REAR SPEED SENSOR LH/REAR SPEED SENSOR ROTOR LH (REAR AXLE HUB AND BEARING ASSEMBLY LH) |
| *9 | REAR SPEED SENSOR RH | *10 | REAR SPEED SENSOR ROTOR RH (REAR AXLE HUB AND BEARING ASSEMBLY RH) |
| *11 | REAR SPEED SENSOR LH | *12 | REAR SPEED SENSOR ROTOR LH (REAR AXLE HUB AND BEARING ASSEMBLY LH) |

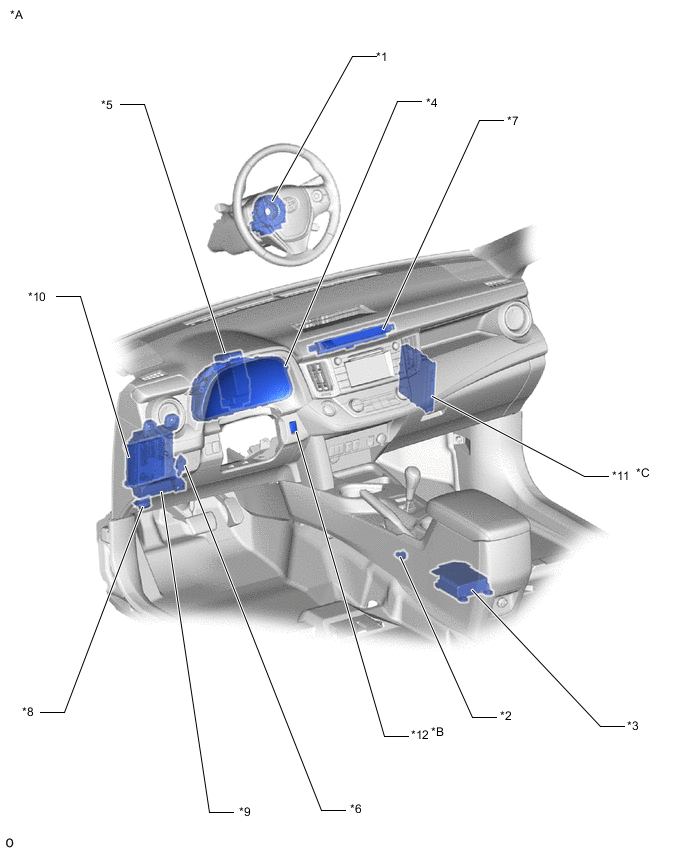

ILLUSTRATION
| *A | for LHD | *B | w/ Downhill Assist Control |
| *C | w/ Stop and Start System | - | - |
| *1 | STEERING ANGLE SENSOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY) | *2 | PARKING BRAKE SWITCH ASSEMBLY |
| *3 | YAW RATE AND ACCELERATION SENSOR (AIRBAG SENSOR ASSEMBLY) | *4 | COMBINATION METER ASSEMBLY |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | VSC OFF SWITCH (TELLTALE LIGHT ASSEMBLY) | *8 | DLC3 |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
|
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | ENGINE STOP AND START ECU | *12 | DOWNHILL ASSIST CONTROL SWITCH |

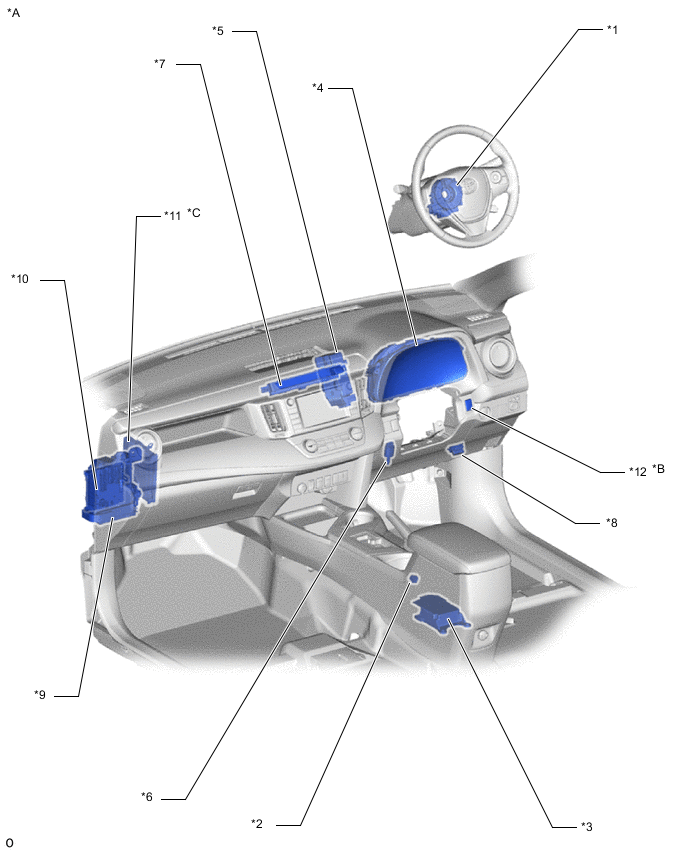

ILLUSTRATION
| *A | for RHD | *B | w/ Downhill Assist Control |
| *C | w/ Stop and Start System | - | - |
| *1 | STEERING ANGLE SENSOR (SPIRAL WITH SENSOR CABLE SUB-ASSEMBLY) | *2 | PARKING BRAKE SWITCH ASSEMBLY |
| *3 | YAW RATE AND ACCELERATION SENSOR (AIRBAG SENSOR ASSEMBLY) | *4 | COMBINATION METER ASSEMBLY |
| *5 | POWER STEERING ECU ASSEMBLY | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | VSC OFF SWITCH (TELLTALE LIGHT ASSEMBLY) | *8 | DLC3 |
| *9 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY
|
*10 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *11 | ENGINE STOP AND START ECU | *12 | DOWNHILL ASSIST CONTROL SWITCH |
