КОРПУС ДИФФЕРЕНЦИАЛА РАЗБОРКА

PROCEDURE

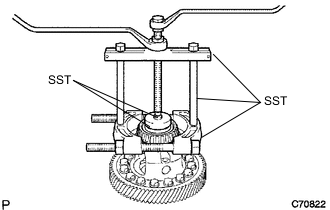

  1. REMOVE FRONT DIFFERENTIAL CASE FRONT TAPERED ROLLER BEARING


    1. A012M10N01

      Using SST, remove the front differential case front tapered roller bearing from the front No. 1 differential case sub-assembly.

      SST
      09950-00020
      09950-00030
      09950-40011   ( 09957-04010 )
      09950-60010   ( 09951-00560 )

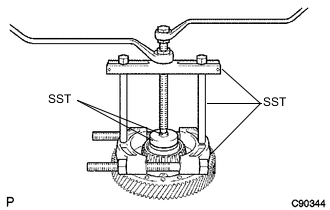

  2. REMOVE FRONT DIFFERENTIAL CASE REAR TAPERED ROLLER BEARING


    1. A012L5HN01

      Using SST, remove the front differential case rear tapered roller bearing from the front No. 1 differential case sub-assembly.

      SST
      09950-00020
      09950-00030
      09950-40011   ( 09957-04010 )
      09950-60010   ( 09951-00490 )

  3. REMOVE FRONT DIFFERENTIAL RING GEAR


    1. A012H5EC01
      *a Matchmark

      Put matchmarks on the front differential ring gear and front No. 1 differential case sub-assembly.

    2. A012HPO

      Remove the 16 bolts. Using a plastic hammer, remove the front No. 1 differential case sub-assembly from the front differential ring gear.
