МЕХАНИЧЕСКАЯ ТРАНСМИССИЯ В СБОРЕ УЗЛЫ И ДЕТАЛИ

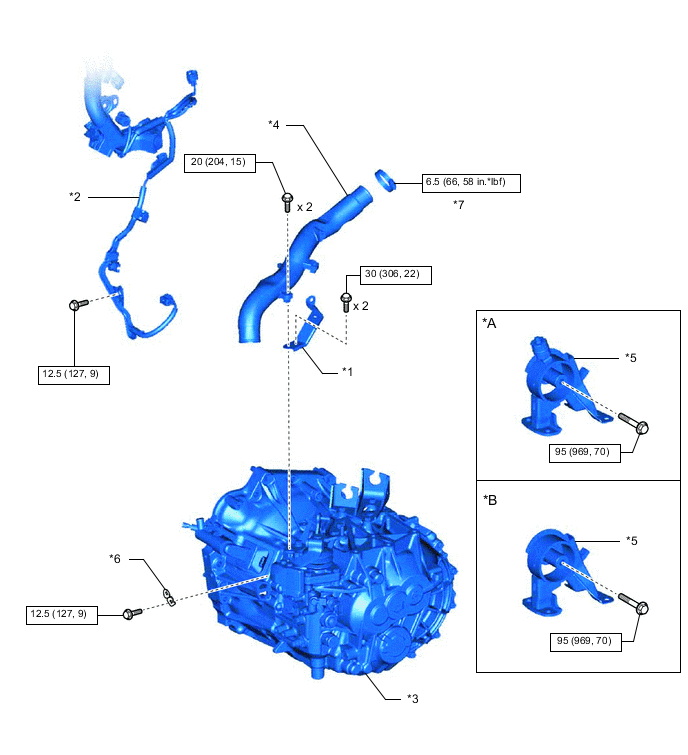

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | AIR TUBE SUPPORT | *2 | ENGINE WIRE |
| *3 | MANUAL TRANSAXLE ASSEMBLY | *4 | NO. 1 AIR TUBE |
| *5 | REAR ENGINE MOUNTING INSULATOR | *6 | WIRE HARNESS CLAMP BRACKET |
| *7 | HOSE CLAMP | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

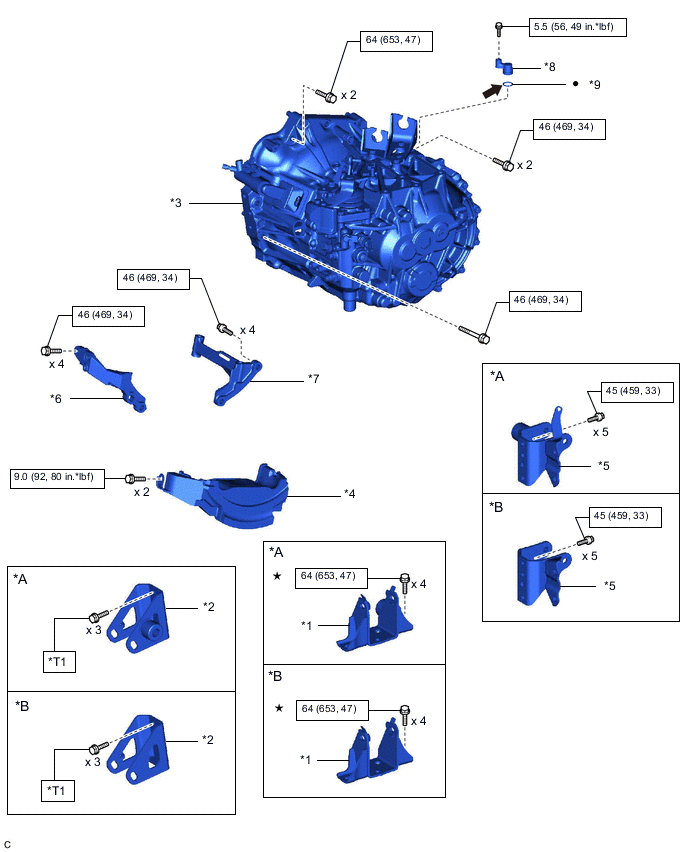

ILLUSTRATION
| *A | Type A | *B | Type B |
| *1 | ENGINE MOUNTING BRACKET LH | *2 | FRONT ENGINE MOUNTING BRACKET |
| *3 | MANUAL TRANSAXLE ASSEMBLY | *4 | OIL PAN INSULATOR |
| *5 | REAR ENGINE MOUNTING BRACKET | *6 | STIFFENER PLATE LH |
| *7 | STIFFENER PLATE RH | *8 | SPEEDOMETER DRIVEN HOLE COVER SUB-ASSEMBLY |
| *9 | O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
Gear Oil |
| ★ | Precoated part | ● | Non-reusable part |
| *T1 | for Green Bolt: 64 (653, 47) for Silver Bolt: 45 (459, 33) |
- | - |
