БЛОК СЦЕПЛЕНИЯ (для моделей с EA66) УЗЛЫ И ДЕТАЛИ

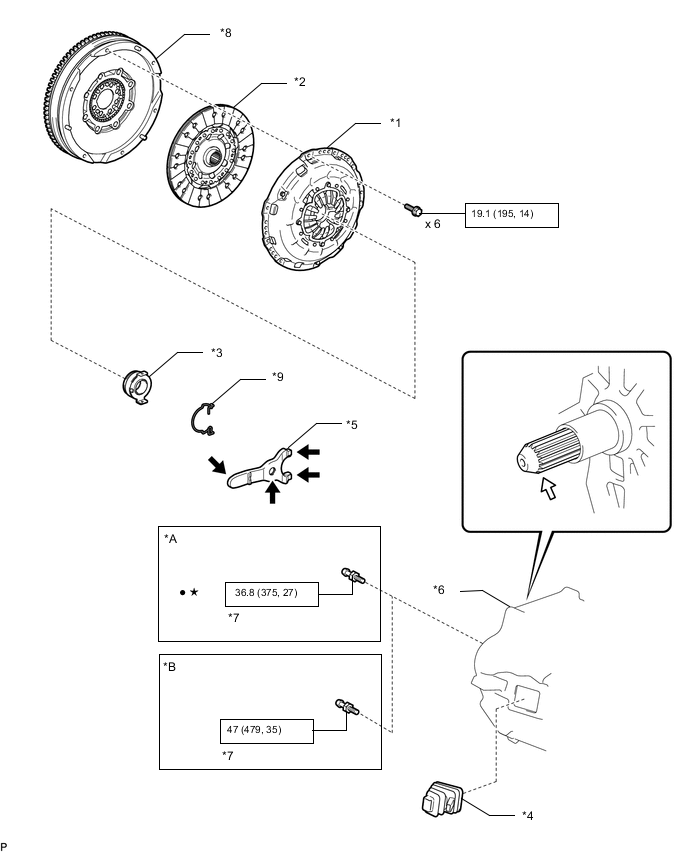

ILLUSTRATION
| *A | w/ Precoated Part | *B | w/o Precoated part |
| *1 | CLUTCH COVER ASSEMBLY | *2 | CLUTCH DISC ASSEMBLY |
| *3 | CLUTCH RELEASE BEARING ASSEMBLY | *4 | CLUTCH RELEASE FORK BOOT |
| *5 | CLUTCH RELEASE FORK SUB-ASSEMBLY | *6 | MANUAL TRANSAXLE ASSEMBLY |
| *7 | RELEASE FORK SUPPORT | *8 | FLYWHEEL SUB-ASSEMBLY |
| *9 | RELEASE BEARING HUB CLIP | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Clutch spline grease |  |
Release hub grease |
| ★ | Precoated part |
