СИСТЕМА КРУИЗ-КОНТРОЛЯ (для моделей с 1ND-TV без ЭБУ помощи при движении) СХЕМА СИСТЕМЫ

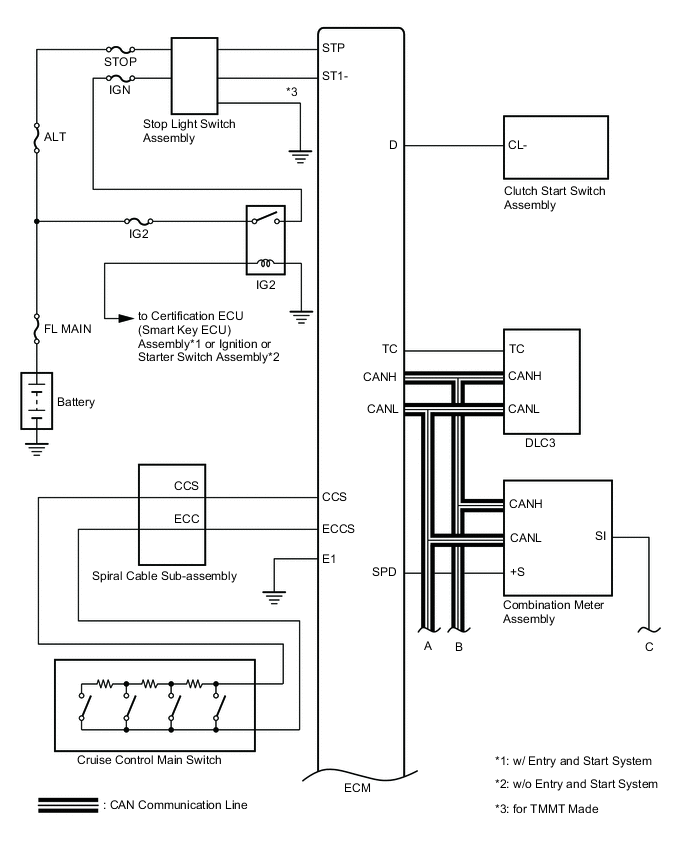

A01TCTME01

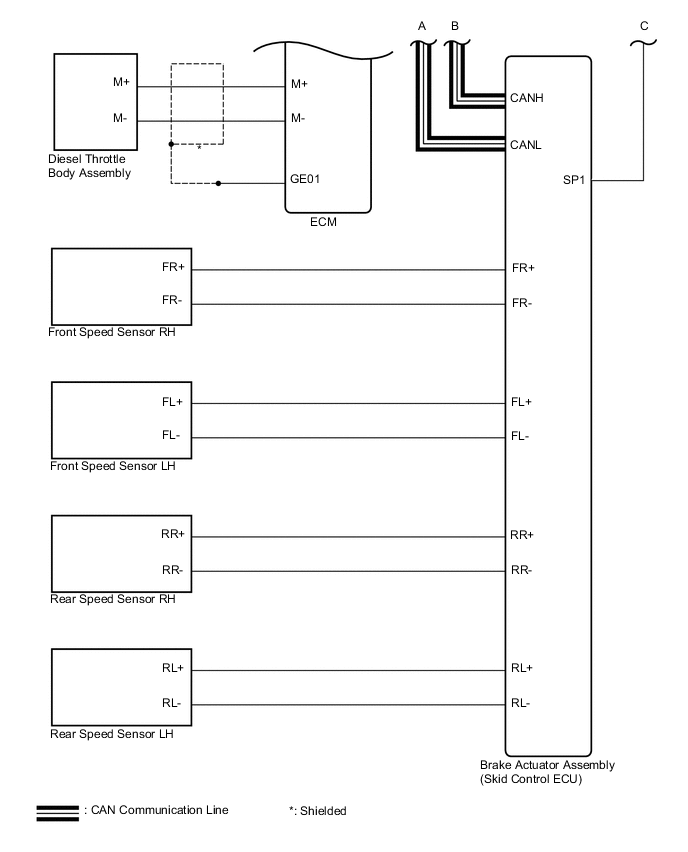

A01TCDAE23
Communication Table
Sender Receiver Signal Line
ECM

Combination Meter ECU

(Cruise Control Indicator)

(Cruise Control SET Indicator)

 Cruise control indicator and cruise control SET indicator operation signal CAN
