СВЕЧА НАКАЛИВАНИЯ СНЯТИЕ

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE NO. 1 ENGINE COVER

    Click here

  4. DISCONNECT ENGINE WIRE

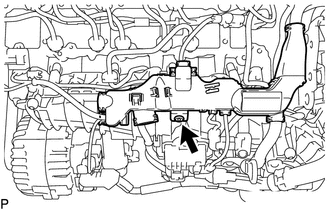

    1. B0043HI

      Using a T25 "TORX" socket wrench, remove the screw and disconnect the engine wire so that the glow plug assemblies can be removed in a later step.

  5. REMOVE GLOW PLUG ASSEMBLY


    1. Disconnect the 4 glow plug assembly connectors.

    2. B0041WXN01

      Using SST, remove the 4 glow plug assemblies.

      SST
      PZ4TB-04910-68
