СТАРТЕР (для механической трансмиссии для моделей с системой запуска и останова) УЗЛЫ И ДЕТАЛИ

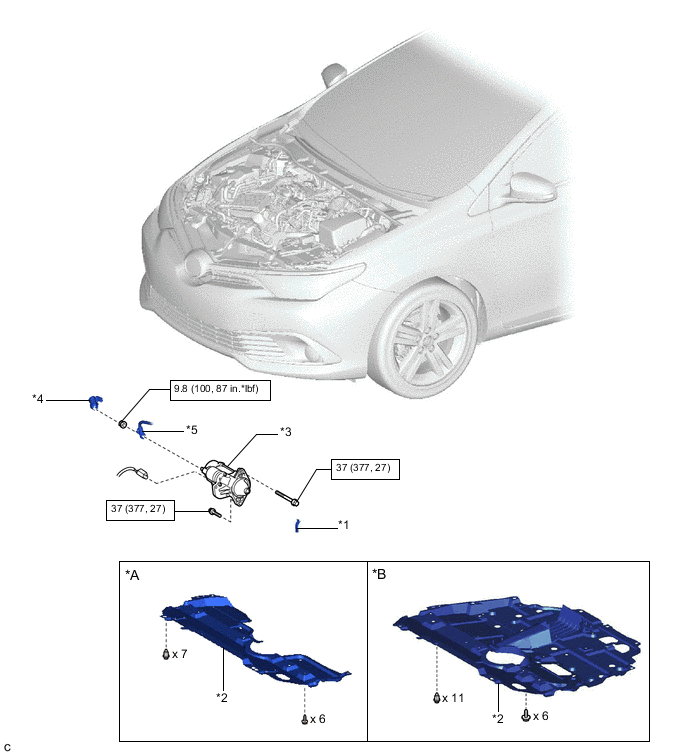

ILLUSTRATION
| *A | for Half Cover Type | *B | for Full Cover Type |
| *1 | FLYWHEEL HOUSING SIDE COVER | *2 | NO. 1 ENGINE UNDER COVER |
| *3 | STARTER ASSEMBLY | *4 | TERMINAL CAP PROTECTOR |
| *5 | TERMINAL CAP | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

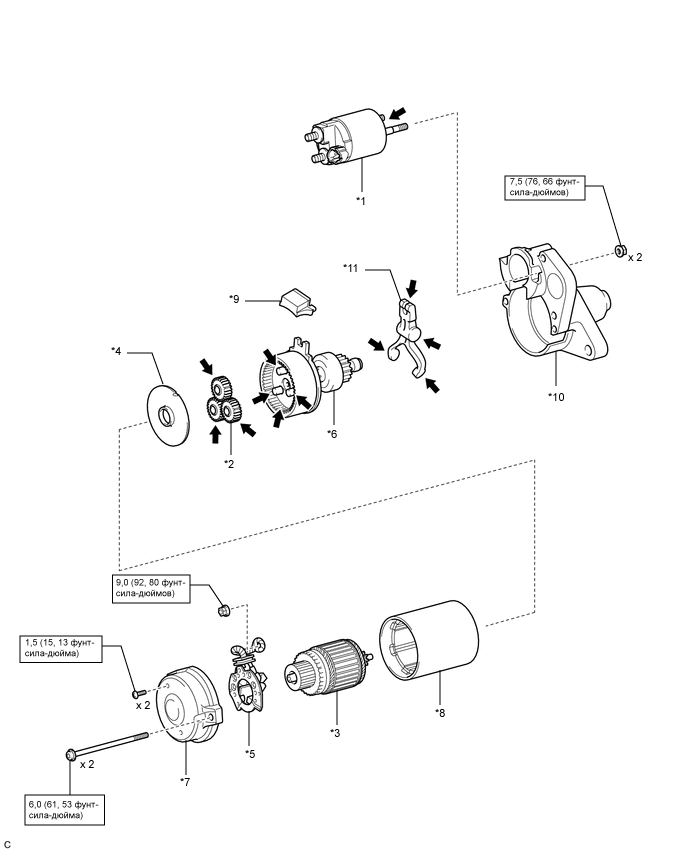

ILLUSTRATION
| *1 | MAGNET STARTER SWITCH ASSEMBLY | *2 | PLANETARY GEAR |
| *3 | STARTER ARMATURE ASSEMBLY | *4 | STARTER ARMATURE PLATE |
| *5 | STARTER BRUSH HOLDER ASSEMBLY | *6 | STARTER CENTER BEARING CLUTCH SUB-ASSEMBLY |
| *7 | STARTER COMMUTATOR END FRAME ASSEMBLY | *8 | STARTER YOKE ASSEMBLY |
| *9 | RUBBER SEAL | *10 | STARTER DRIVE HOUSING ASSEMBLY |
| *11 | PINION DRIVE LEVER | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
High-temperature grease |
