СТАРТЕР (для моделей без системы запуска и останова) СНЯТИЕ

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the negative (-) battery terminal. Therefore, make sure to read the disconnecting the cable from the negative (-) battery terminal notices before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE NO. 1 ENGINE UNDER COVER

    Click here

  4. REMOVE FLYWHEEL HOUSING SIDE COVER

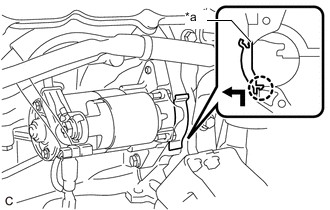

    1. A01T8TBC01
      *a Protrusion

      Disengage the claw as shown in the illustration to remove the flywheel housing side cover.

  5. REMOVE STARTER ASSEMBLY

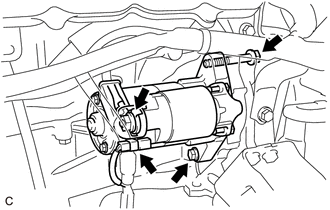

    1. A01TDA9

      Disconnect the starter assembly connector.

    2. Remove the terminal cap.

    3. Remove the nut and disconnect terminal 30.

    4. Remove the 2 bolts and starter assembly.
