РАДИАТОР (кроме моделей с кузовом типа "седан") УЗЛЫ И ДЕТАЛИ

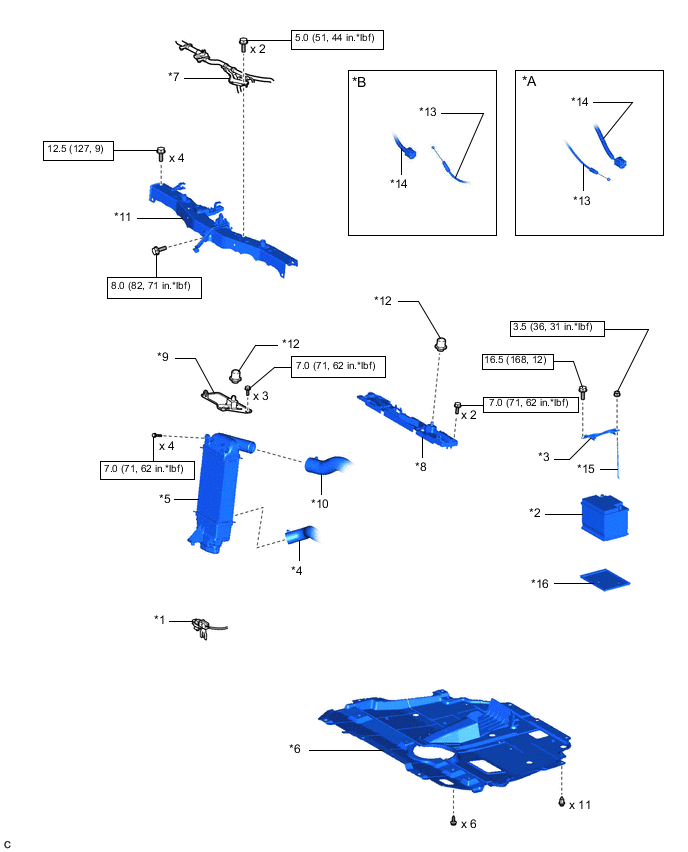

ILLUSTRATION
| *A | for RHD | *B | for LHD |
| *1 | THERMISTOR ASSEMBLY | *2 | BATTERY |
| *3 | BATTERY CLAMP SUB-ASSEMBLY | *4 | NO. 3 AIR HOSE |
| *5 | INTERCOOLER ASSEMBLY | *6 | NO. 1 ENGINE UNDER COVER |
| *7 | NO. 1 WATER HOSE CLAMP BRACKET | *8 | NO. 2 FAN SHROUD |
| *9 | NO. 1 RADIATOR SUPPORT | *10 | NO. 2 AIR HOSE |
| *11 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY | *12 | RADIATOR SUPPORT CUSHION |
| *13 | HOOD LOCK CONTROL CABLE ASSEMBLY | *14 | WIRE HARNESS |
| *15 | BATTERY BOLT | *16 | BATTERY TRAY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

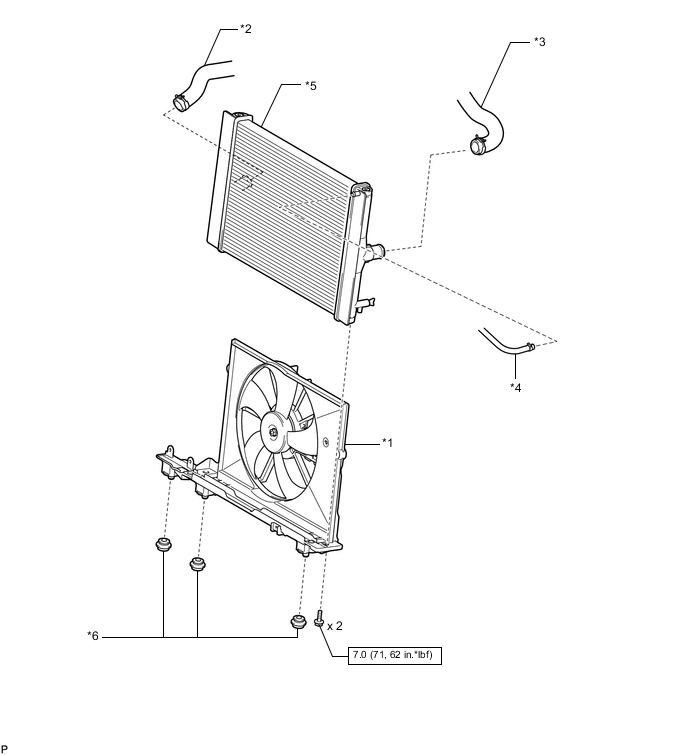

ILLUSTRATION
| *1 | FAN SHROUD | *2 | NO. 2 RADIATOR HOSE |
| *3 | NO. 3 RADIATOR HOSE | *4 | NO. 3 WATER BY-PASS HOSE |
| *5 | RADIATOR ASSEMBLY | *6 | LOWER RADIATOR SUPPORT |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
