РАДИАТОР (для моделей с кузовом типа "седан") УЗЛЫ И ДЕТАЛИ
ILLUSTRATION
| *A | for Half Cover Type | *B | for Full Cover Type |
| *1 | NO. 1 ENGINE UNDER COVER | - | - |
ILLUSTRATION

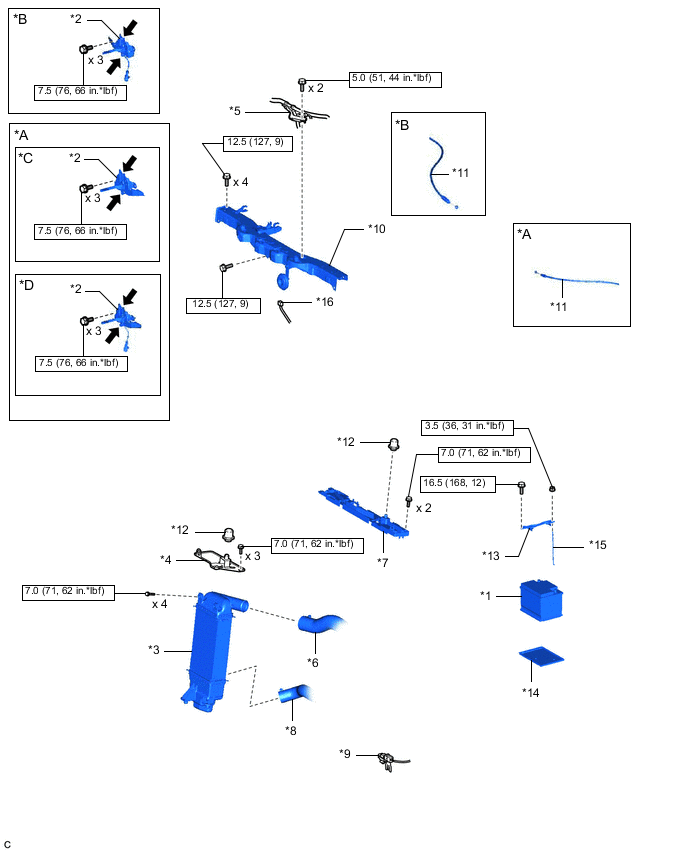

| *A | for LHD | *B | for RHD |
| *C | w/o Engine Hood Courtesy Switch | *D | w/ Engine Hood Courtesy Switch |
| *1 | BATTERY | *2 | HOOD LOCK ASSEMBLY |
| *3 | INTERCOOLER ASSEMBLY | *4 | NO. 1 RADIATOR SUPPORT |
| *5 | NO. 1 WATER HOSE CLAMP BRACKET | *6 | NO. 2 AIR HOSE |
| *7 | NO. 2 FAN SHROUD | *8 | NO. 3 AIR HOSE |
| *9 | THERMISTOR ASSEMBLY | *10 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
| *11 | HOOD LOCK CONTROL CABLE ASSEMBLY | *12 | RADIATOR SUPPORT CUSHION |
| *13 | BATTERY CLAMP SUB-ASSEMBLY | *14 | BATTERY TRAY |
| *15 | BATTERY CLAMP BOLT | *16 | HORN CONNECTOR |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |  |
MP grease |
ILLUSTRATION

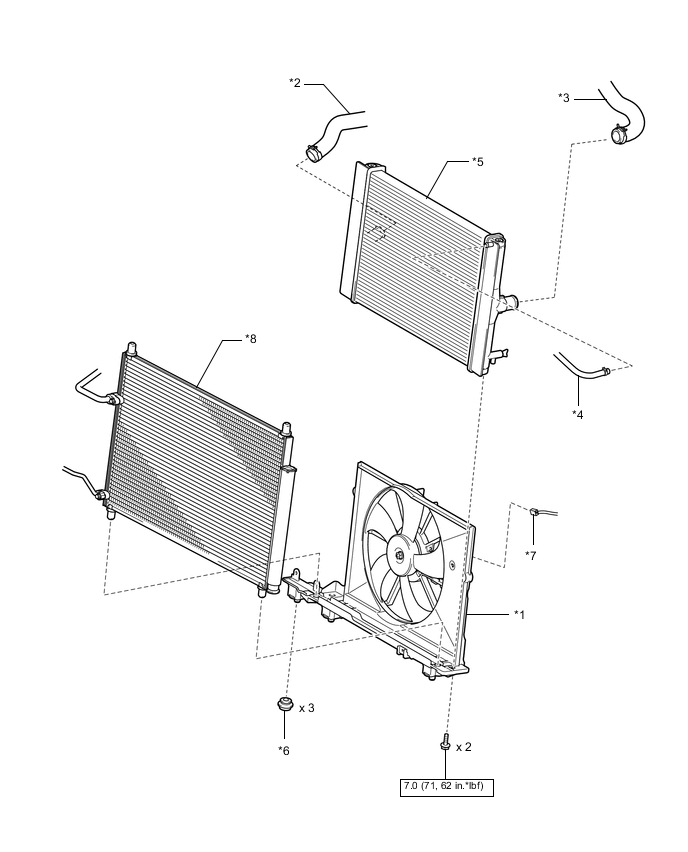

| *1 | FAN SHROUD | *2 | NO. 2 RADIATOR HOSE |
| *3 | NO. 3 RADIATOR HOSE | *4 | NO. 3 WATER BY-PASS HOSE |
| *5 | RADIATOR ASSEMBLY | *6 | LOWER RADIATOR SUPPORT |
| *7 | COOLING FAN ECU CONNECTOR | *8 | CONDENSER ASSEMBLY |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
