ПРОМЕЖУТОЧНЫЙ ОХЛАДИТЕЛЬ СНЯТИЕ

PROCEDURE


  1. REMOVE HEADLIGHT ASSEMBLY LH (except Sedan)

    Click here

  2. REMOVE HEADLIGHT ASSEMBLY LH (for Sedan)

    Click here

  3. REMOVE HEADLIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedures for the RH side and LH side.

  4. REMOVE BATTERY

    Click here

  5. DISCONNECT NO. 1 WATER HOSE CLAMP BRACKET (except Sedan)

    Click here

  6. DISCONNECT NO. 1 WATER HOSE CLAMP BRACKET (for Sedan)

    Click here

  7. REMOVE HOOD LOCK ASSEMBLY (for Sedan)


  8. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY (except Sedan)

    Click here

  9. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY (for Sedan)

    Click here

  10. DISCONNECT NO. 2 AIR HOSE


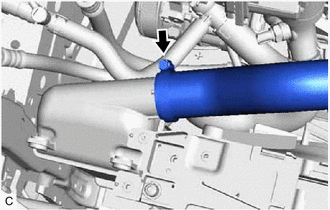

    1. A012IJW

      Loosen the hose clamp, and disconnect the No. 2 air hose.

  11. DISCONNECT NO. 3 AIR HOSE

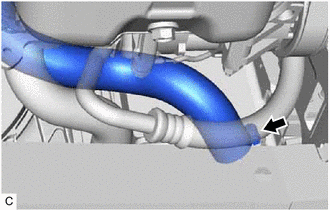

    1. A012KCN

      Loosen the hose clamp, and disconnect the No. 3 air hose.

  12. REMOVE NO. 1 RADIATOR SUPPORT

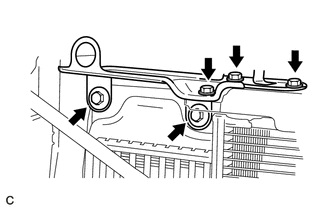

    1. A012J2G

      Remove the 5 bolts and No. 1 radiator support.

    2. Remove the radiator support cushion.

  13. REMOVE INTERCOOLER ASSEMBLY

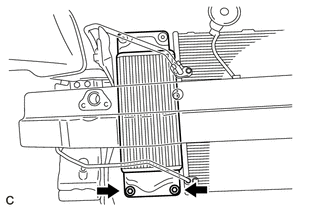

    1. A012IL7

      Remove the 2 bolts and intercooler assembly.
