ПРОМЕЖУТОЧНЫЙ ОХЛАДИТЕЛЬ СНЯТИЕ

PROCEDURE


  1. REMOVE HEADLIGHT ASSEMBLY LH

    Click here

  2. REMOVE HEADLIGHT ASSEMBLY RH

    Tech Tips

    Use the same procedures for the RH side and LH side.

  3. DISCONNECT NO. 1 WATER HOSE CLAMP BRACKET

    Click here

  4. REMOVE UPPER RADIATOR SUPPORT SUB-ASSEMBLY

    Click here

  5. DISCONNECT NO. 2 AIR HOSE

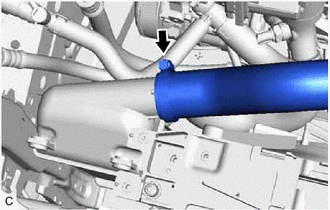

    1. A00Y9BM

      Loosen the hose clamp, and disconnect the No. 2 air hose.

  6. DISCONNECT NO. 3 AIR HOSE

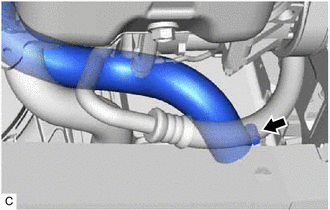

    1. A00Y76C

      Loosen the hose clamp, and disconnect the No. 3 air hose.

  7. REMOVE NO. 1 RADIATOR SUPPORT

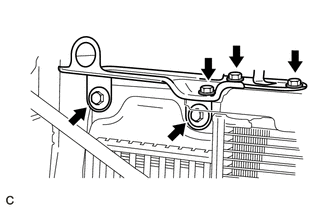

    1. A00Y5QK

      Remove the 5 bolts and No. 1 radiator support.

    2. Remove the radiator support cushion.

  8. REMOVE INTERCOOLER ASSEMBLY

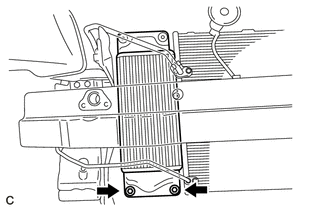

    1. A00Y6II

      Remove the 2 bolts and intercooler assembly.
