ПРОМЕЖУТОЧНЫЙ ОХЛАДИТЕЛЬ УЗЛЫ И ДЕТАЛИ
ILLUSTRATION

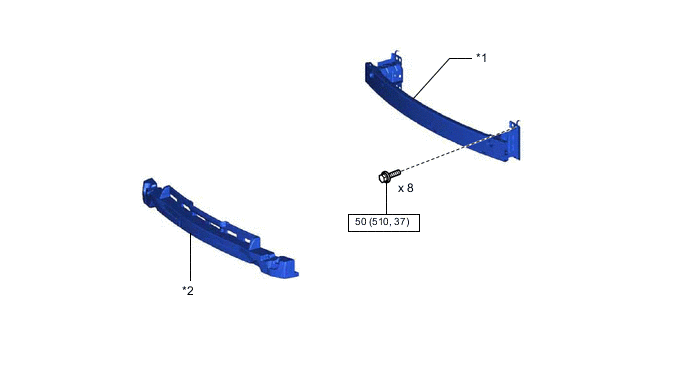

| *1 | FRONT BUMPER ENERGY ABSORBER | *2 | FRONT BUMPER REINFORCEMENT SUB-ASSEMBLY |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

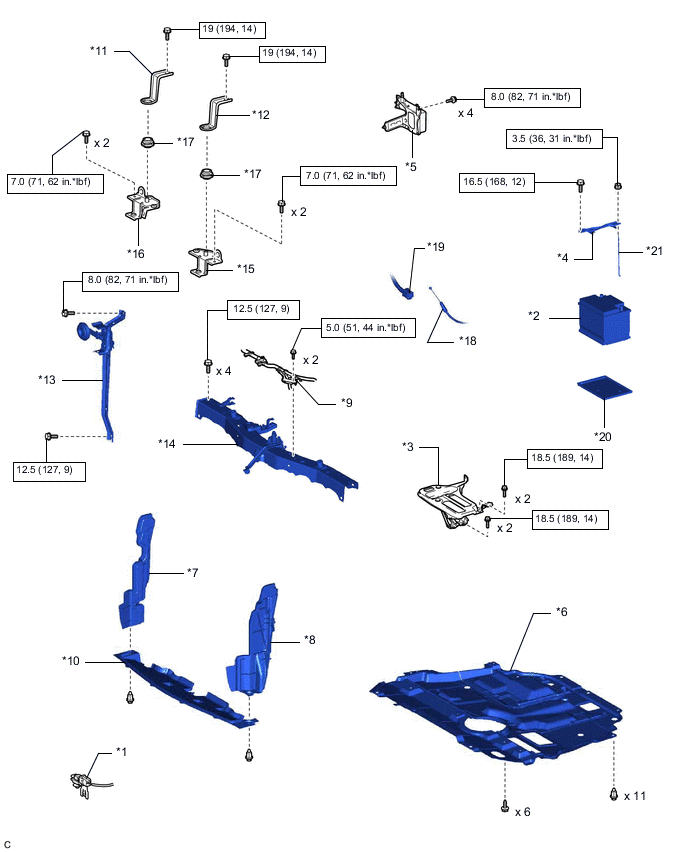

| *1 | THERMISTOR ASSEMBLY | *2 | BATTERY |
| *3 | BATTERY CARRIER BRACKET SUB-ASSEMBLY | *4 | BATTERY CLAMP SUB-ASSEMBLY |
| *5 | INJECTOR DRIVER | *6 | NO. 1 ENGINE UNDER COVER |
| *7 | NO. 1 RADIATOR AIR GUIDE LH | *8 | NO. 1 RADIATOR AIR GUIDE RH |
| *9 | NO. 1 WATER HOSE CLAMP BRACKET | *10 | NO. 3 RADIATOR AIR GUIDE |
| *11 | RADIATOR SUPPORT LH | *12 | RADIATOR SUPPORT RH |
| *13 | RADIATOR SUPPORT TO CROSS MEMBER BRACE SUB-ASSEMBLY | *14 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY |
| *15 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY LH | *16 | UPPER RADIATOR SUPPORT SUB-ASSEMBLY RH |
| *17 | RADIATOR SUPPORT CUSHION | *18 | HOOD LOCK CONTROL CABLE ASSEMBLY |
| *19 | WIRE HARNESS | *20 | BATTERY TRAY |
| *21 | CLAMP BOLT | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
ILLUSTRATION

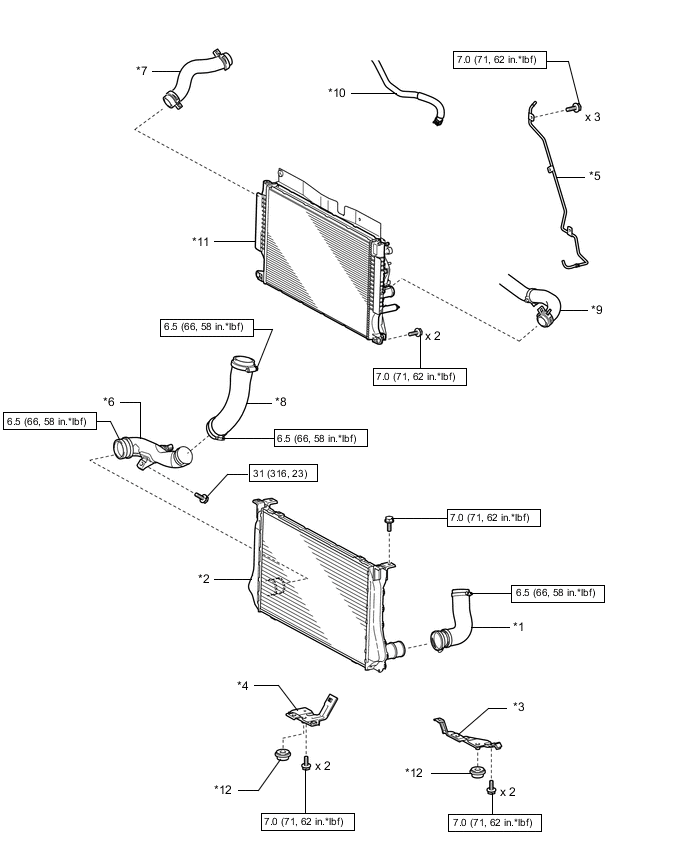

| *1 | INTERCOOLER AIR HOSE | *2 | INTERCOOLER ASSEMBLY |
| *3 | LOWER RADIATOR SUPPORT SUB-ASSEMBLY LH | *4 | LOWER RADIATOR SUPPORT SUB-ASSEMBLY RH |
| *5 | NO. 1 VACUUM TRANSMITTING PIPE SUB-ASSEMBLY | *6 | NO. 2 AIR TUBE |
| *7 | NO. 2 RADIATOR HOSE | *8 | NO. 3 AIR HOSE |
| *9 | NO. 3 RADIATOR HOSE | *10 | NO. 3 WATER BY-PASS HOSE |
| *11 | RADIATOR ASSEMBLY | *12 | LOWER RADIATOR SUPPORT |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |
