ОХЛАДИТЕЛЬ РОГ УЗЛЫ И ДЕТАЛИ
ILLUSTRATION

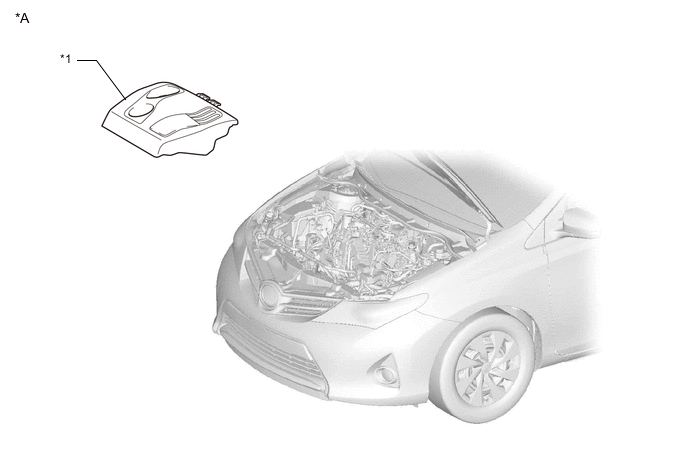

| *A | w/ No. 1 Engine Cover | - | - |
| *1 | NO. 1 ENGINE COVER | - | - |
ILLUSTRATION

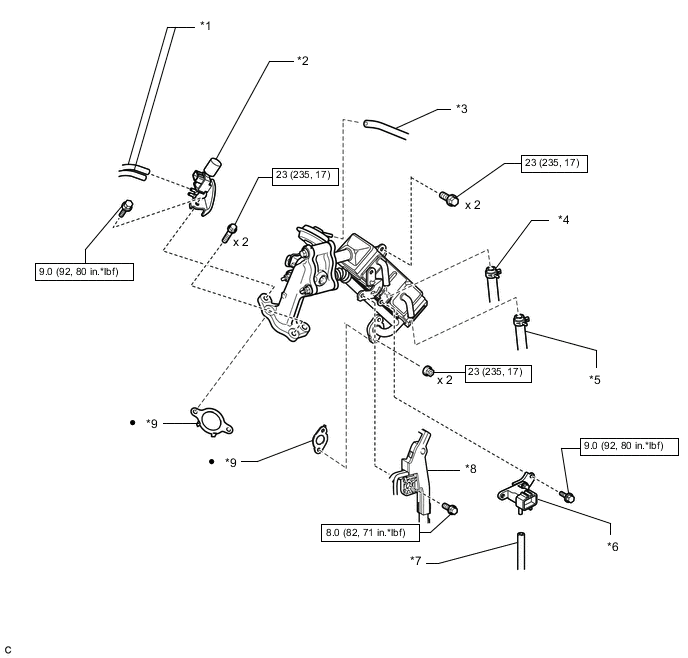

| *1 | VACUUM TRANSMITTING HOSE | *2 | EGR BYPASS VALVE SWITCHING VALVE (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY) |
| *3 | VACUUM HOSE | *4 | NO. 2 OIL COOLER HOSE |
| *5 | NO. 2 WATER BY-PASS HOSE | *6 | MANIFOLD ABSOLUTE PRESSURE SENSOR (DIESEL TURBO PRESSURE SENSOR) |
| *7 | VACUUM TRANSMITTING HOSE | *8 | ENGINE WIRE |
| *9 | GASKET | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
ILLUSTRATION

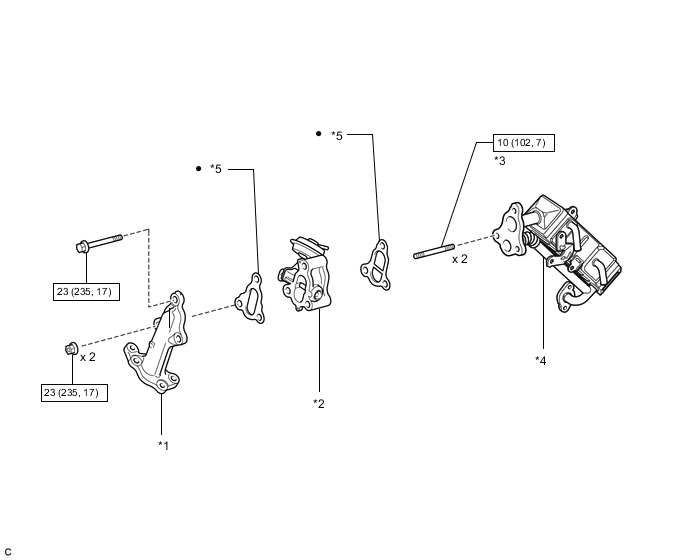

| *1 | EGR PIPE CONNECTOR | *2 | NO. 2 EGR VALVE ASSEMBLY |
| *3 | STUD BOLT | *4 | EGR PIPE WITH COOLER SUB-ASSEMBLY |
| *5 | GASKET | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
