ДОПОЛНИТЕЛЬНАЯ ФОРСУНКА ОТРАБОТАВШЕГО ТОПЛИВА СНЯТИЕ

PROCEDURE


  1. PRECAUTION

    Note

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Click here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click here

  3. REMOVE NO. 1 ENGINE COVER

    Click here

  4. REMOVE AIR CLEANER CAP SUB-ASSEMBLY

    Click here

  5. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Click here

  6. DISCONNECT WIRE HARNESS

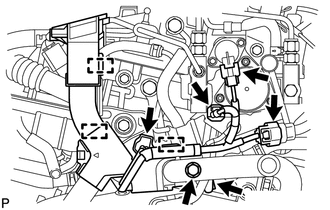

    1. A012IJO

      Disconnect the 5 connectors and 3 wire harness clamps.

    2. Remove the bolt from the fuel hose protector.

  7. REMOVE WIRE HARNESS CLAMP BRACKET

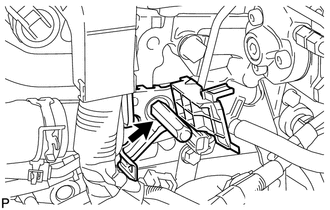

    1. A012FII

      Remove the bolt and wire harness clamp bracket.

  8. REMOVE FUEL HOSE PROTECTOR


    1. A012GS8

      Remove the bolt and fuel hose protector.

  9. REMOVE FUEL TUBE SUB-ASSEMBLY

    Click here

  10. REMOVE EXHAUST FUEL ADDITION INJECTOR ASSEMBLY

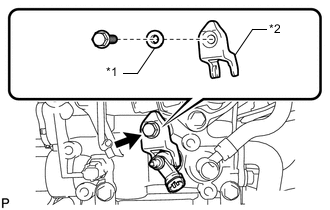

    1. A012F8GC01
      *1 Washer
      *2 Nozzle Holder Clamp

      Remove the bolt, washer, nozzle holder clamp, exhaust fuel addition injector assembly and gasket.

  11. REMOVE FUEL INJECTOR SEAL

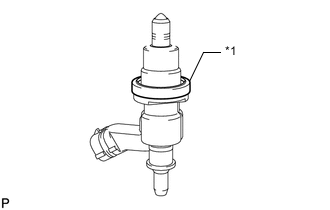

    1. A012KKQC01
      *1 Fuel Injector Seal

      Remove the fuel injector seal from the exhaust fuel addition injector assembly.
