ДОПОЛНИТЕЛЬНАЯ ФОРСУНКА ОТРАБОТАВШЕГО ТОПЛИВА УЗЛЫ И ДЕТАЛИ

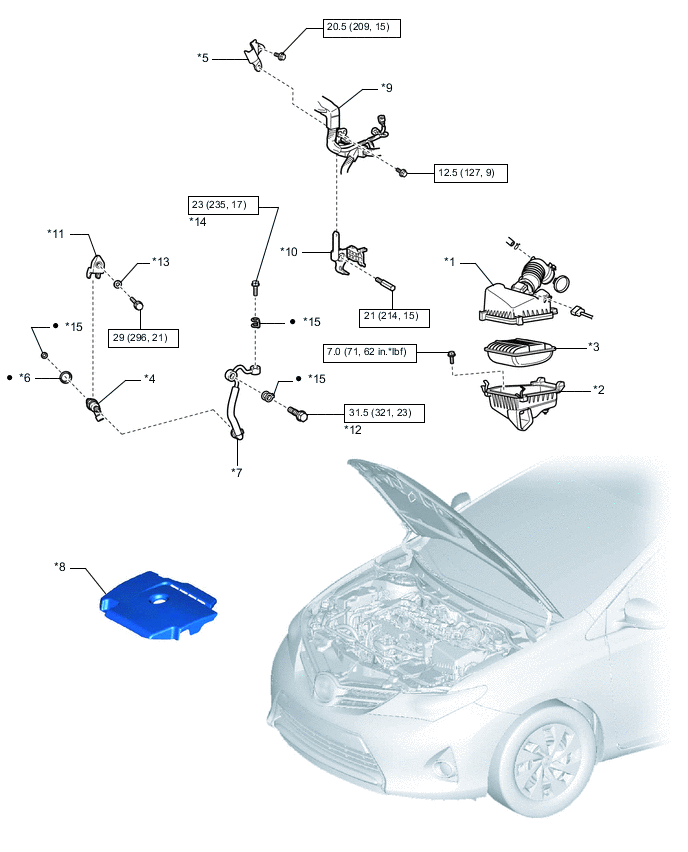

ILLUSTRATION
| *1 | AIR CLEANER CAP SUB-ASSEMBLY | *2 | AIR CLEANER CASE SUB-ASSEMBLY |
| *3 | AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY | *4 | EXHAUST FUEL ADDITION INJECTOR ASSEMBLY |
| *5 | FUEL HOSE PROTECTOR | *6 | FUEL INJECTOR SEAL |
| *7 | FUEL TUBE SUB-ASSEMBLY | *8 | NO. 1 ENGINE COVER |
| *9 | WIRE HARNESS | *10 | WIRE HARNESS CLAMP BRACKET |
| *11 | NOZZLE HOLDER CLAMP | *12 | CHECK VALVE |
| *13 | WASHER | *14 | UNION BOLT |
| *15 | GASKET | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
