КЛАПАН РОГ УЗЛЫ И ДЕТАЛИ
ILLUSTRATION

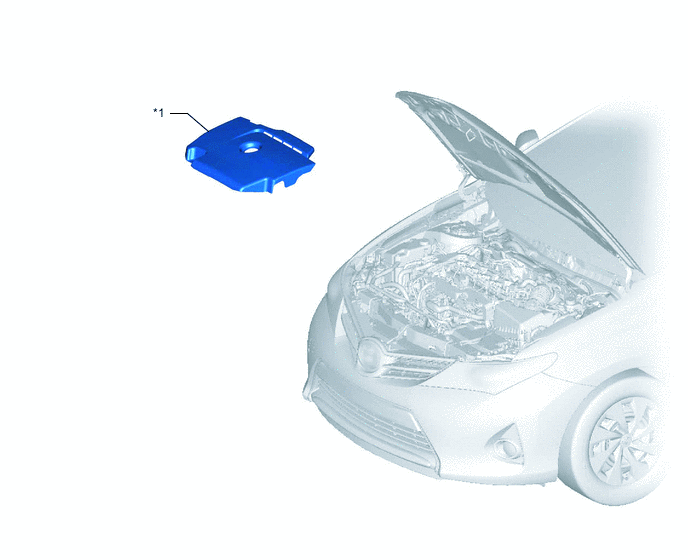

| *1 | NO. 1 ENGINE COVER | - | - |
ILLUSTRATION

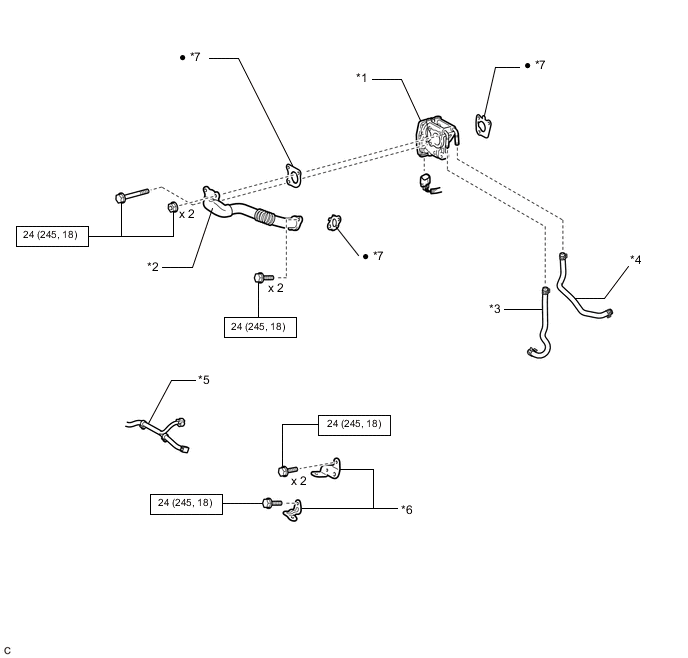

| *1 | EGR VALVE (ELECTRIC EGR CONTROL VALVE ASSEMBLY) | *2 | NO. 2 EGR PIPE SUB-ASSEMBLY |
| *3 | NO. 7 WATER BY-PASS HOSE | *4 | NO. 8 WATER BY-PASS HOSE |
| *5 | WIRE HARNESS | *6 | EGR VALVE BRACKET |
| *7 | GASKET | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
