СИСТЕМА СНИЖЕНИЯ ТОКСИЧНОСТИ ОТРАБОТАВШИХ ГАЗОВ РАСПОЛОЖЕНИЕ ДЕТАЛЕЙ
ILLUSTRATION

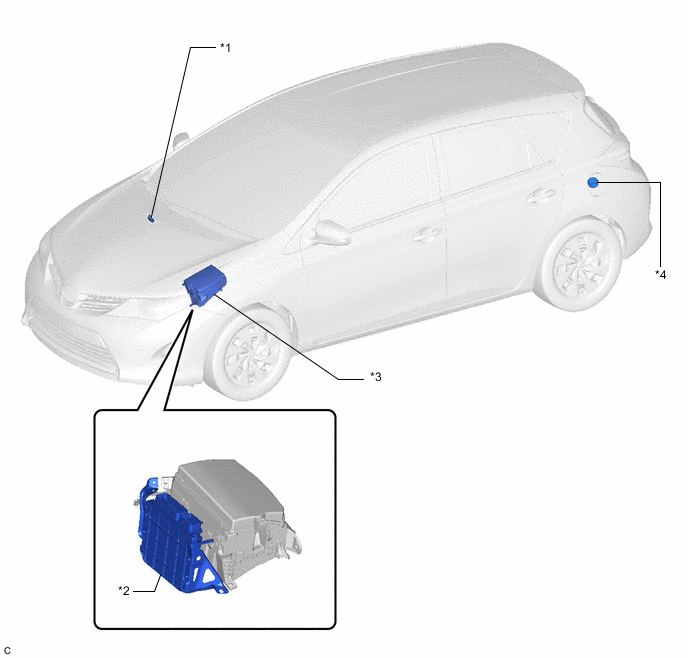

| *1 | DIFFERENTIAL PRESSURE SENSOR | *2 | ECM |
| *3 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK - EFI-MAIN RELAY - EFI-MAIN FUSE - EFI NO. 2 FUSE |
*4 | FUEL TANK CAP |
ILLUSTRATION

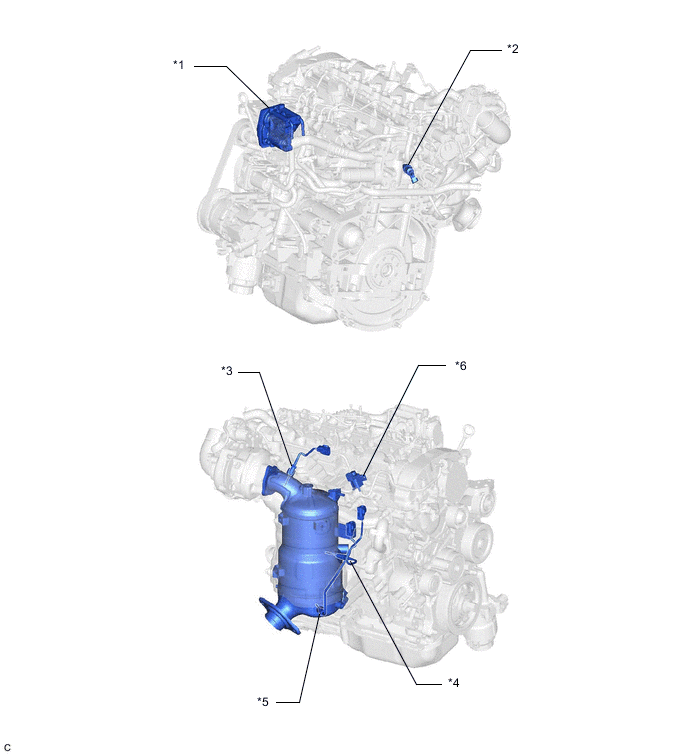

| *1 | EGR VALVE (ELECTRIC EGR CONTROL VALVE ASSEMBLY) | *2 | EXHAUST FUEL ADDITION INJECTOR ASSEMBLY |
| *3 | EXHAUST GAS TEMPERATURE SENSOR | *4 | NO. 2 EXHAUST GAS TEMPERATURE SENSOR |
| *5 | NO. 3 EXHAUST GAS TEMPERATURE SENSOR | *6 | EGR BYPASS VALVE SWITCHING VALVE (NO. 1 VACUUM SWITCHING VALVE ASSEMBLY) |
