МАСЛЯНЫЙ РАДИАТОР ДВИГАТЕЛЯ УСТАНОВКА

PROCEDURE


  1. INSTALL OIL COOLER ASSEMBLY


    1. Check and clean the oil cooler assembly installation surface.

    2. Install 2 new O-rings and a new gasket to the oil filter bracket sub-assembly.

    3. Install the oil cooler assembly with the 2 bolts and 2 nuts.

      Torque:
      21 N*m  { 214 kgf*cm, 15 ft.*lbf }

  2. CONNECT OIL COOLER HOSE

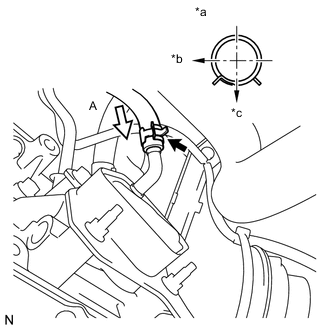

    A012KEIC01
    *a View A
    *b RH Side
    *c Front Side

    1. Connect the oil cooler hose, and slide the clips to secure it.

      Note

      The direction of the clip is as shown in the illustration.

  3. ADD ENGINE OIL

    Click here

  4. CHECK ENGINE OIL LEVEL

    Click here

  5. ADD ENGINE COOLANT

    Click here

  6. INSPECT FOR OIL LEAK

    Click here

  7. INSPECT FOR COOLANT LEAK

    Click here

  8. INSTALL OIL FILTER ELEMENT SERVICE HOLE COVER (for Full Cover Type)

    Click here
