ДАТЧИК ПОЛОЖЕНИЯ КОЛЕНЧАТОГО ВАЛА УЗЛЫ И ДЕТАЛИ

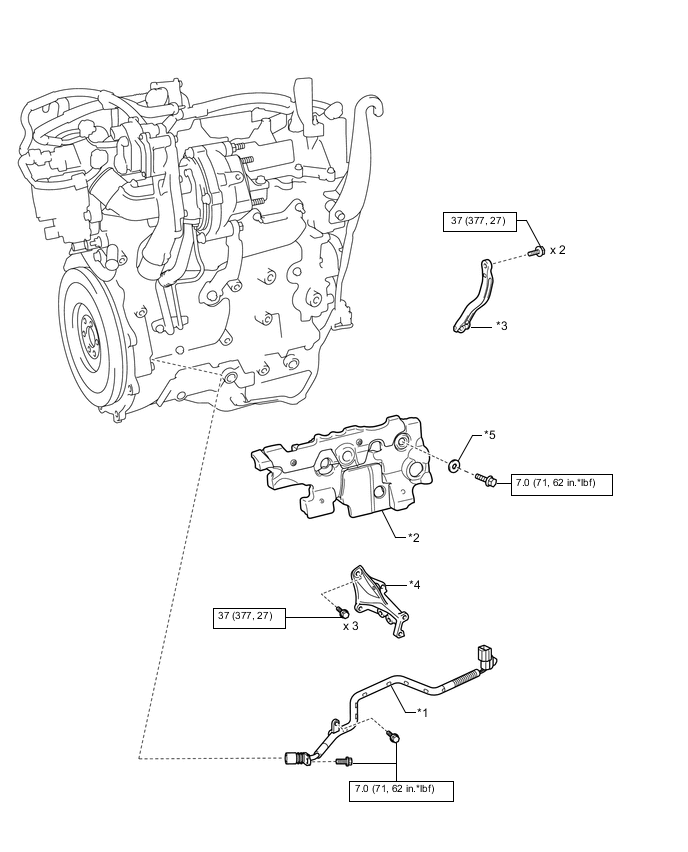

ILLUSTRATION
| *1 | CRANK POSITION SENSOR | *2 | CYLINDER BLOCK SIDE COVER |
| *3 | MANIFOLD STAY | *4 | MANIFOLD SUPPORT BRACKET |
| *5 | PLATE WASHER | - | - |
 |
N*m (kgf*cm, ft*lbf): Specified torque | - | - |
ILLUSTRATION
| *1 | CRANK POSITION SENSOR | *2 | CYLINDER BLOCK SIDE COVER |
| *3 | MANIFOLD STAY | *4 | MANIFOLD SUPPORT BRACKET |
| *5 | PLATE WASHER | - | - |
| |
N*m (kgf*cm, ft*lbf): Specified torque | - | - |
