КОРПУС ДРОССЕЛЬНОЙ ЗАСЛОНКИ ДИЗЕЛЬНОГО ДВИГАТЕЛЯ УЗЛЫ И ДЕТАЛИ

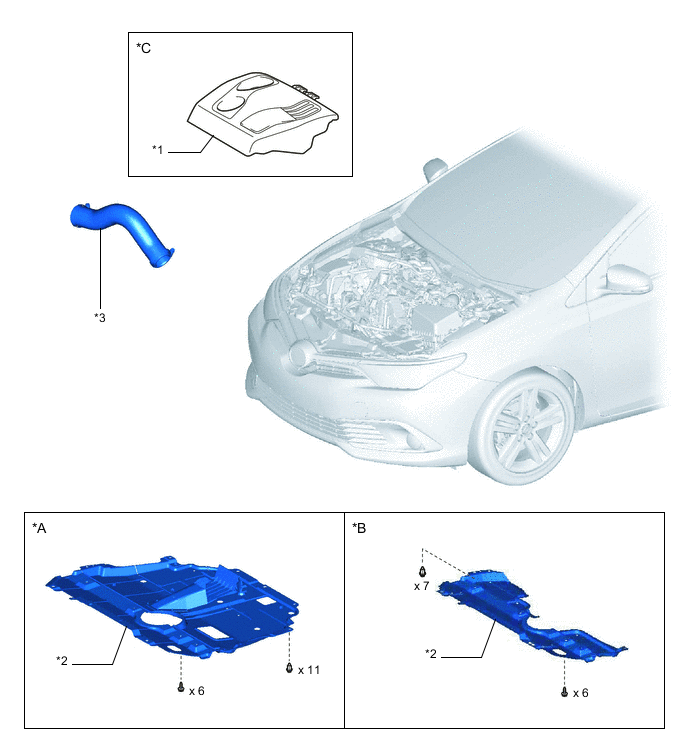

ILLUSTRATION
| *A | for Full Cover Type | *B | for Half Cover Type |
| *C | w/ No. 1 Engine Cover | - | - |
| *1 | NO. 1 ENGINE COVER | *2 | NO. 1 ENGINE UNDER COVER |
| *3 | INTERCOOLER AIR HOSE | - | - |

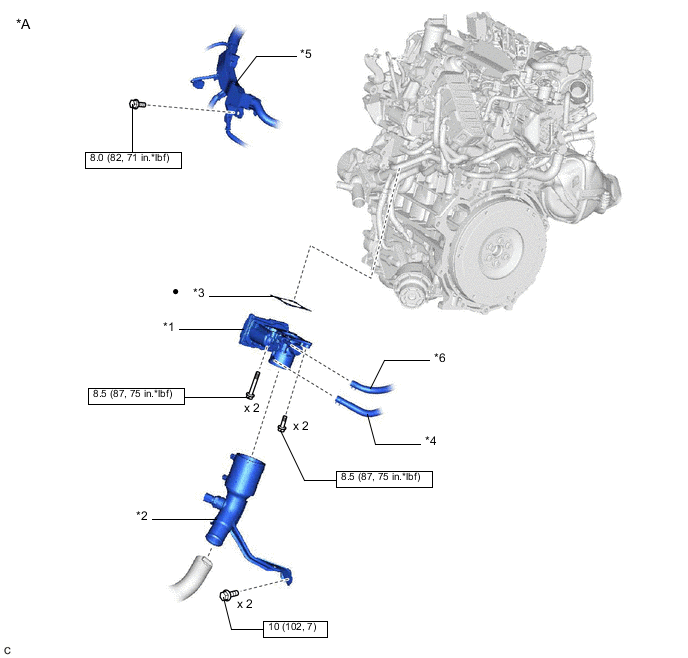

ILLUSTRATION
| *A | w/ Glow Plug Controller | - | - |
| *1 | DIESEL THROTTLE BODY ASSEMBLY | *2 | NO. 2 AIR TUBE |
| *3 | VENTURI GASKET | *4 | NO. 3 WATER BY-PASS HOSE |
| *5 | ENGINE WIRE | *6 | NO. 5 WATER BY-PASS HOSE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |

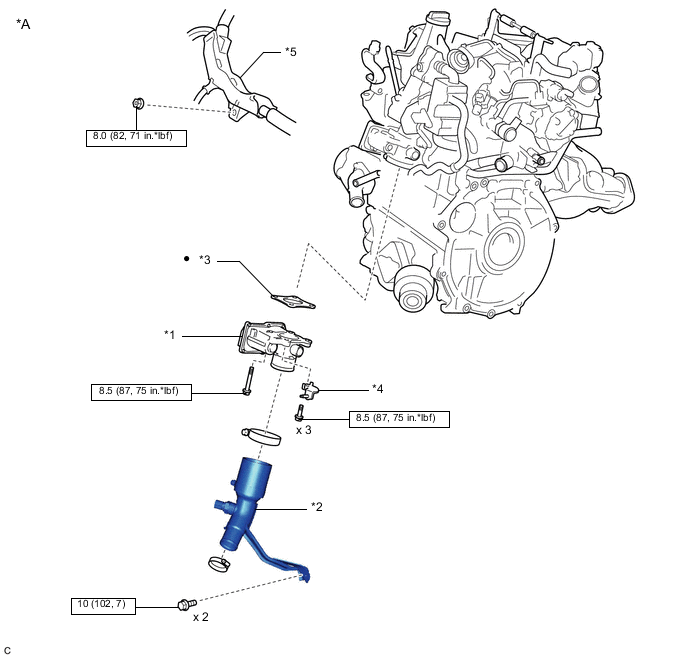

ILLUSTRATION
| *A | w/o Glow Plug Controller | - | - |
| *1 | DIESEL THROTTLE BODY ASSEMBLY | *2 | NO. 2 AIR TUBE |
| *3 | VENTURI GASKET | *4 | WIRE HARNESS BRACKET |
| *5 | ENGINE WIRE | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
