СИСТЕМА ECD (для моделей с контроллером свечей накаливания) РАСПОЛОЖЕНИЕ ДЕТАЛЕЙ
ILLUSTRATION
| *1 | EFI-MAIN RELAY, IG2 RELAY | *2 | MASS AIR FLOW METER |
| *3 | PARK / NEUTRAL POSITION SWITCH ASSEMBLY (for Multi-mode Manual Transaxle Models) | *4 | GLOW PLUG CONTROLLER |
| *5 | ENGINE ROOM RELAY BLOCK AND JUNCTION BLOCK ASSEMBLY | *6 | GLOW PLUG RELAY ASSEMBLY |
| *7 | ECM | *8 | EFI-MAIN NO. 2 RELAY |
| *9 | ST NO. 1 RELAY | - | - |
ILLUSTRATION
| *1 | CRANKSHAFT POSITION SENSOR | *2 | DIFFERENTIAL PRESSURE SENSOR |
| *3 | ENGINE COOLANT TEMPERATURE SENSOR | *4 | TURBOCHARGER SUB-ASSEMBLY |
| *5 | SUPPLY PUMP ASSEMBLY (SUCTION CONTROL VALVE) | *6 | FUEL TEMPERATURE SENSOR |
| *7 | ENGINE OIL LEVEL SENSOR (OIL LEVEL UPPER SWITCH) | *8 | - NOZZLE VANE POSITION SENSOR - DC MOTOR |

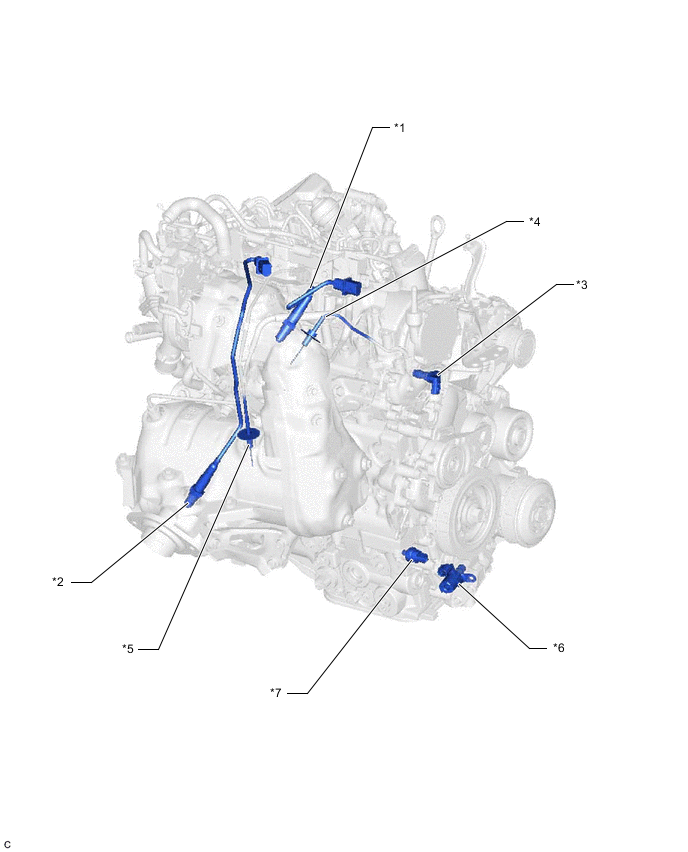

ILLUSTRATION
| *1 | AIR FUEL RATIO SENSOR (for Sensor 1) | *2 | AIR FUEL RATIO SENSOR (for Sensor 2) |
| *3 | CAMSHAFT POSITION SENSOR | *4 | EXHAUST GAS TEMPERATURE SENSOR (B1S1) |
| *5 | EXHAUST GAS TEMPERATURE SENSOR (B1S2) | *6 | OIL PRESSURE SWITCHING VALVE ASSEMBLY |
| *7 | OIL PRESSURE SENDER GAUGE ASSEMBLY | - |
ILLUSTRATION
| *1 | COMMON RAIL ASSEMBLY (PRESSURE CONTROL VALVE) | *2 | DIESEL THROTTLE BODY ASSEMBLY |
| *3 | EGR COOLER BYPASS VALVE VSV (NO. 1 VACUUM SWITCHING VALVE) | *4 | ELECTRIC EGR CONTROL VALVE ASSEMBLY |
| *5 | INJECTOR ASSEMBLY | *6 | GLOW PLUG ASSEMBLY |
| *7 | INTAKE AIR TEMPERATURE SENSOR | *8 | DIESEL TURBO PRESSURE SENSOR |

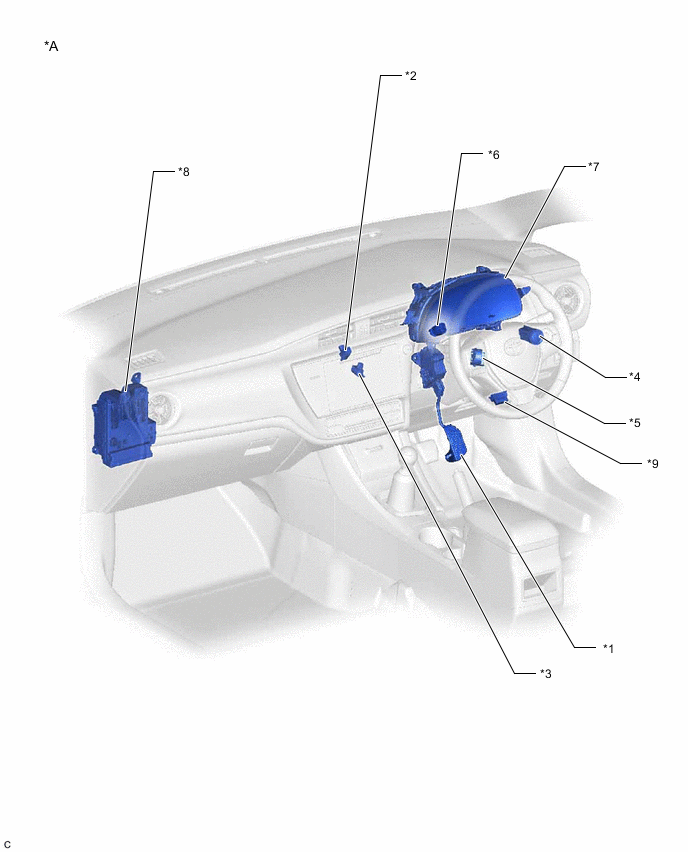

ILLUSTRATION
| *A | for Hatchback, Wagon (LHD) | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY (for Manual Transaxle Models) |
| *3 | CLUTCH PEDAL SWITCH ASSEMBLY (for Manual Transaxle Models) | *4 | ENGINE SWITCH ASSEMBLY (w/ Entry and Start System) |
| *5 | IGNITION SWITCH ASSEMBLY (w/o Entry and Start System) | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *9 | DLC3 | - | - |
ILLUSTRATION
| *A | for Sedan (LHD) | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY (for Manual Transaxle Models) |
| *3 | CLUTCH PEDAL SWITCH ASSEMBLY (for Manual Transaxle Models) | *4 | ENGINE SWITCH ASSEMBLY (w/ Entry and Start System) |
| *5 | IGNITION SWITCH ASSEMBLY (w/o Entry and Start System) | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *9 | DLC3 | - | - |
ILLUSTRATION
| *A | for Hatchback, Wagon (RHD) | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY (for Manual Transaxle Models) |
| *3 | CLUTCH PEDAL SWITCH ASSEMBLY (for Manual Transaxle Models) | *4 | ENGINE SWITCH ASSEMBLY (w/ Entry and Start System) |
| *5 | IGNITION SWITCH ASSEMBLY (w/o Entry and Start System) | *6 | STOP LIGHT SWITCH ASSEMBLY |
| *7 | COMBINATION METER ASSEMBLY | *8 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
| *9 | DLC3 | - | - |
ILLUSTRATION
| *A | for Sedan (RHD) | - | - |
| *1 | ACCELERATOR PEDAL SENSOR ASSEMBLY | *2 | NO. 2 CLUTCH PEDAL SWITCH ASSEMBLY (for Manual Transaxle Models) |
| *3 | CLUTCH PEDAL SWITCH ASSEMBLY (for Manual Transaxle Models) | *4 | IGNITION SWITCH ASSEMBLY |
| *5 | STOP LIGHT SWITCH ASSEMBLY | *6 | COMBINATION METER ASSEMBLY |
| *7 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY | *8 | DLC3 |
